Product Code: 240W LED Modular Highbay | CL-HB-130-240W-03
- Robust aluminium housing
- High Performance PHILIPS SMD LEDs
- High Lumen output (130lm/W)
- Low energy usage
- Mercury Free
- Long life time, rated for over 55,000hrs
- Quality Meanwell/MOSO Driver
- Compact Size
- Weatherproof to IP65

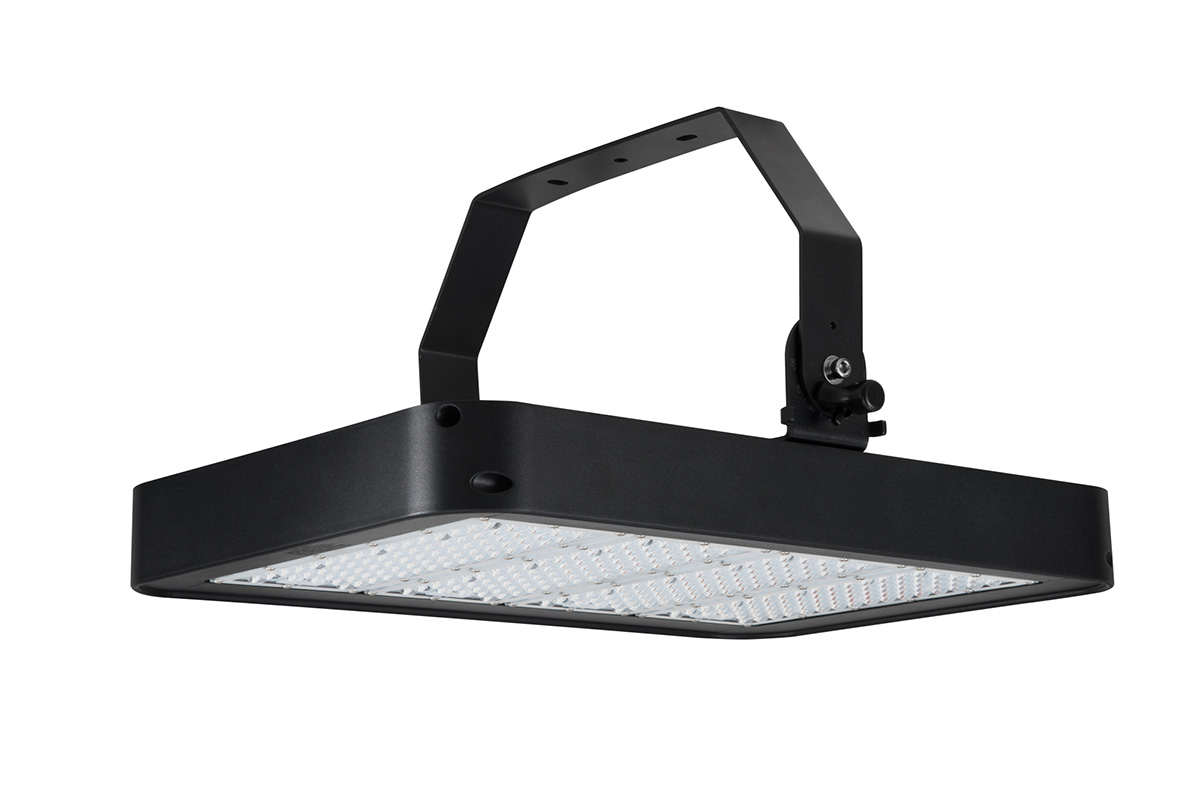

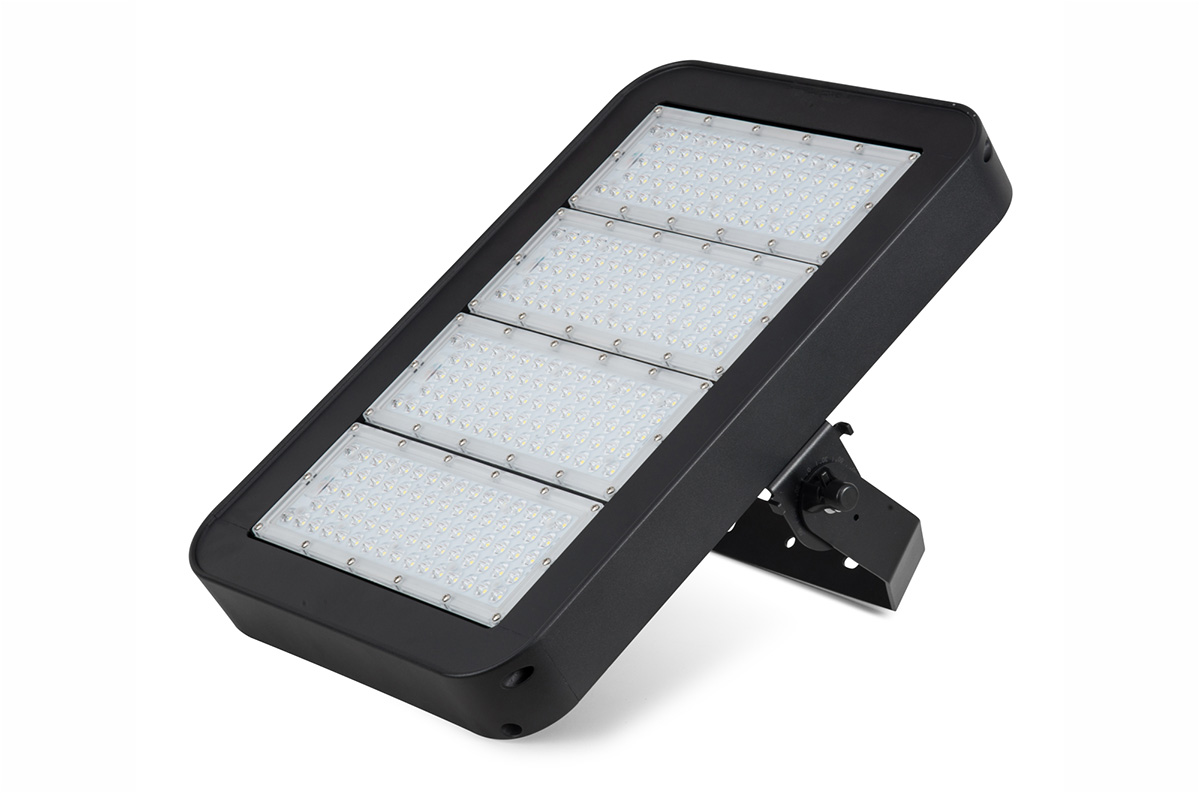

Technologically Advanced, low profile all-purpose Plantinum LED Modular Highbay
Perfect for parking lot lighting, high-bay lighting, street lighting, car dealerships, stadiums, tunnel lighting, outdoor sports areas, campuses, and parks—this Plantinum LED Modular Highbay shines brightly when reliability and performance are critical.
Because of their color temperatures, these area lights minimize glare and light pollution while reducing skyglow. And with a life expectancy that’s 5 times longer than HID fixtures, the LED light reduces costly repairs and the need for replacements.
A weatherproof brown aluminum alloy housing protects internal components and is powder coated to resist rust. Shock- and UV-resistant polycarbonate lenses protect LEDs.

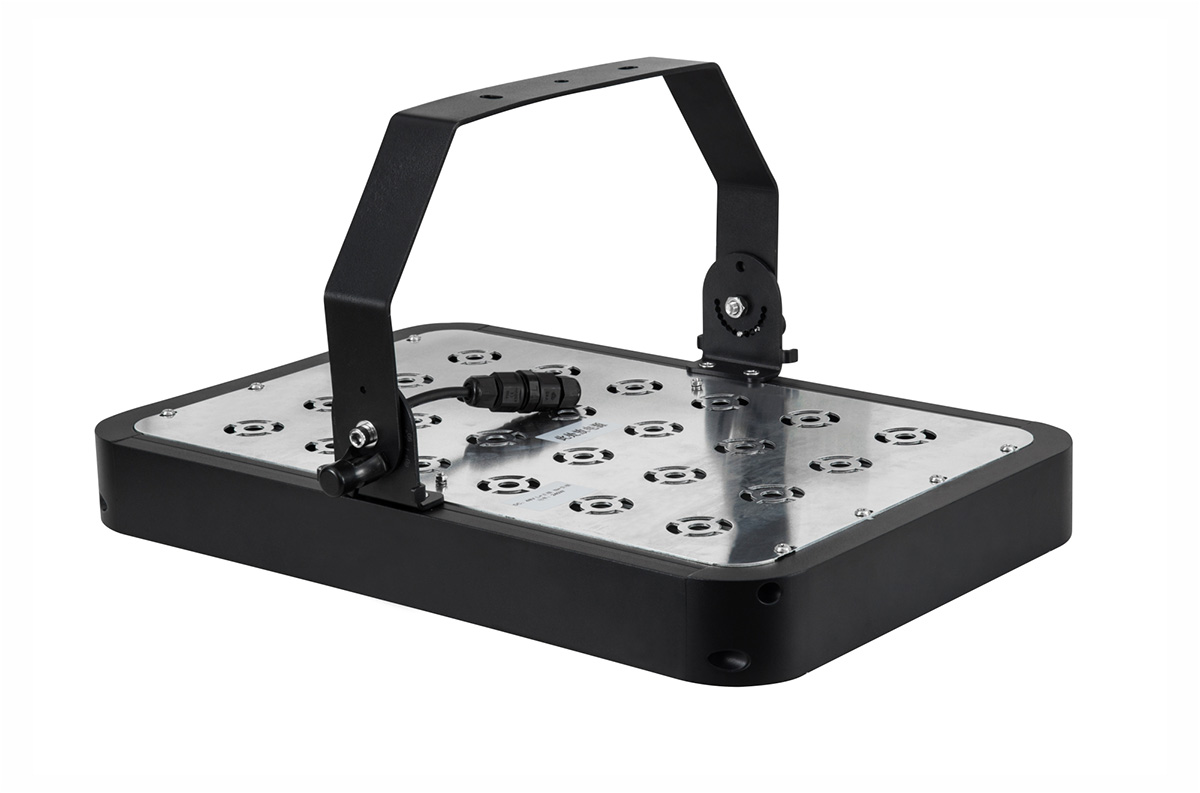

The durable LED fixture comes with an adjustable bracket or can be used with one of many mounting options (sold separately) for walls, ceilings, round or square poles, and suspended chain installation.
This Plantinum LED Modular Highbay is equipped with a constant-current driver and operates within a wide 90-305V AC range.
|Colour Temperature||Lumen Output||LED||CRI||Minimum Lifetime|
|3000K, 4000K, 6000K||29000lm||PHILIPS SMD3030||>80||55,000hrs|
N.B Lumen values quoted on Pure White (6000K)
|Driver Brand||Power Supply Type||Power Factor||Input Volatge|
|Meanwell/MOSO||Constant Current||>0.95||25-38 V DC|
|Power||Ambient Temperature Range|
|240W||-40 to +50 °C|
|Single LED Colours||Optics|
|Warm White, Neutral White, Pure White||25°,40°,80°,120°|
Bundled Driver Specification
|Input||Output Current||Output Voltage|
|90-305V AC||1080mA||25-38V DC|
