CL-TO-125-20W-12-01

CL-TO-125-20W-12-012018-12-24T17:06:38+08:00

Project Description

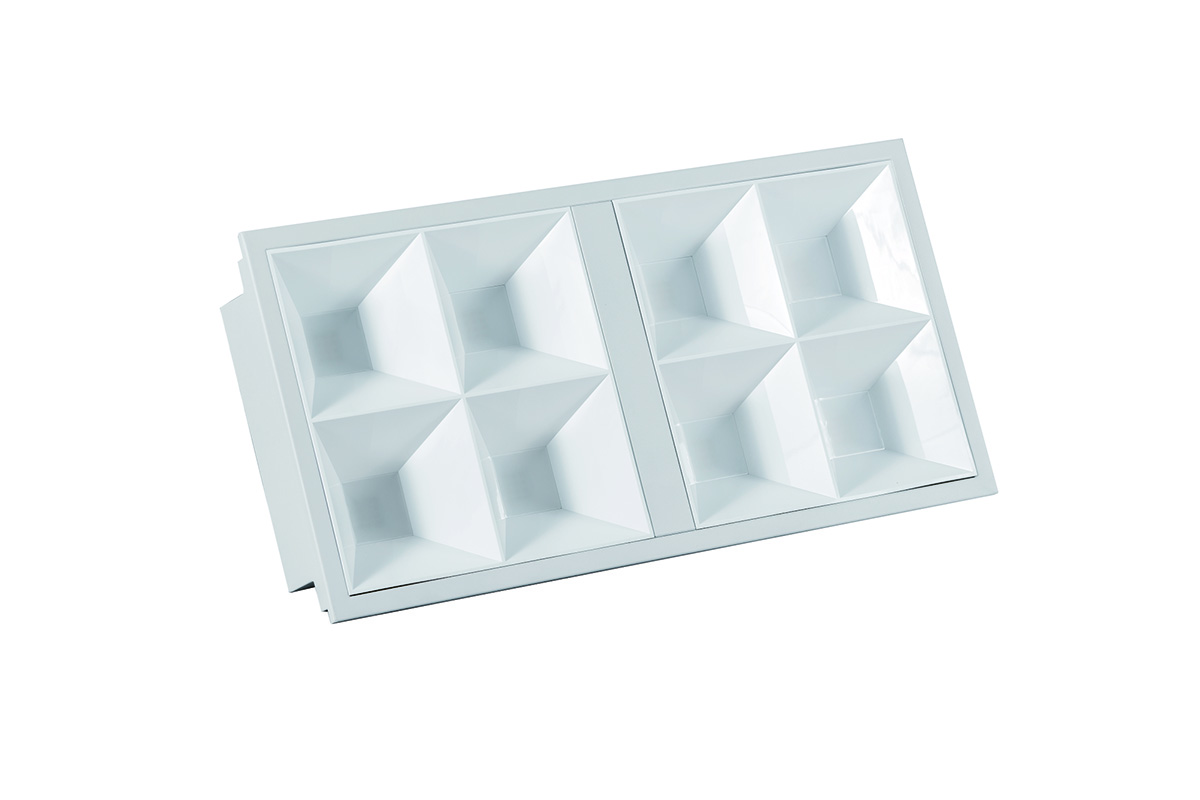

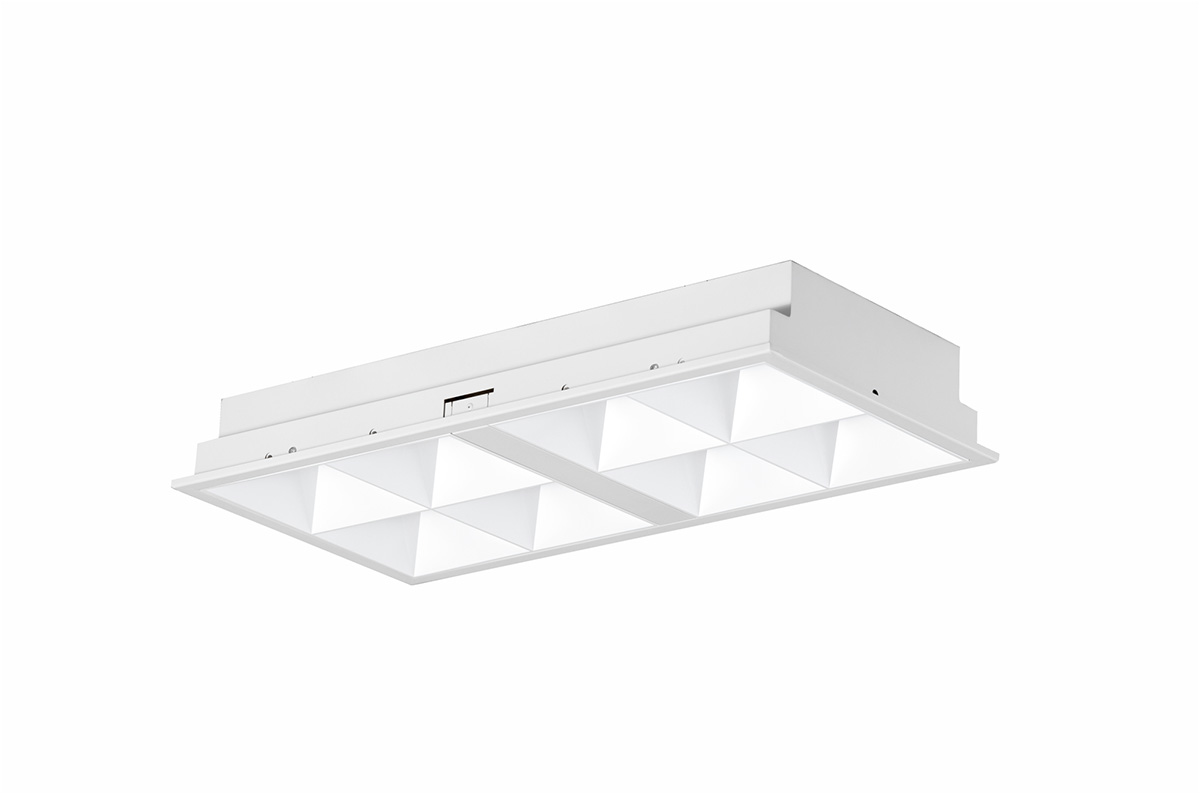

Product Code:20W 295X595MM LED Troffer light | CL-TO-125-20W-12-01

Key Features

  • Anti-glare design;UGR<16,Up to 125lm/W
  • Dali/0-10V/PWM/Traic Dimming available
  • Modern simplistic design
  • Emergency Backup options available.
  • Long Lifetime rating of over 55,000hrs
  • Available in White, Silver  finishes
  • Ideal for both commercial or residential purposes

Product Description

The Maxwell LED troffer light is an exceptionally high performance retrofit type LED light.

Offering a high bright, even light output and elegant design
Conluxs Lighting range of LED troffer light uses OSRAM LED technology which gives them excellent lumen output. They can be quickly and easily installed, hanging or recessed, and can even in be used in smaller void suspended ceilings. Perfect for use in working environments that need good light, our Maxwell LED troffer light provide a high brightness and even light output that is equivalent to standard fluorescents, but with no flicker, so eye strain is greatly reduced.

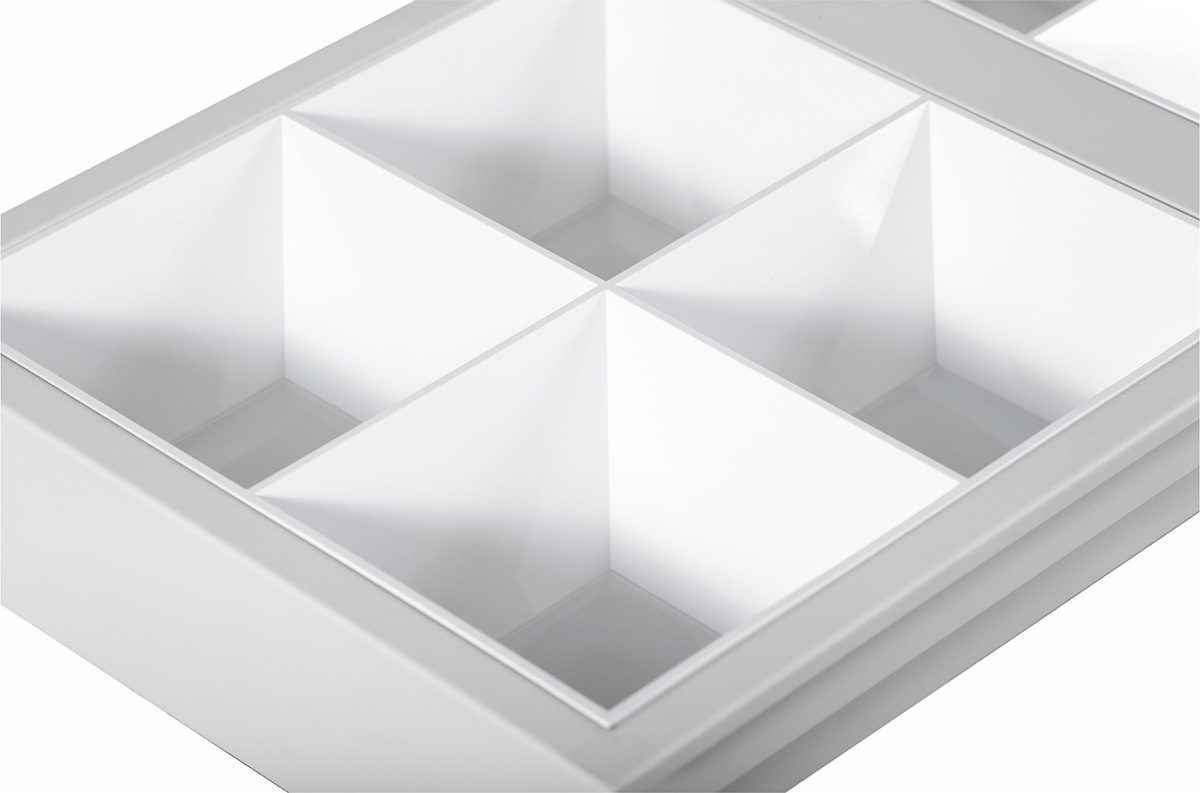

UGR<16 With our anti-glare patent,our LED troffer light will provide more even light and protect humen eyes from glareing problem.

Coupled with OSRAM drivers,Conluxs’s LED Troffer lights consume a fraction of the energy of fluorescents (including ballasts), which reduces costs still further, and as they contain no harmful mercury, disposal is easier and safer and so Conluxs’s LED Troffer lights are altogether more environmentally friendly than fluorescent options.

Specification

Lighting Performance

Colour Temperature Lumen Output LED Quantity CRI Minimum Lifetime
3000K, 4000K, 5000K 2500lm 96 >80 55,000hrs

N.B Lumen values quoted on Pure White (5000K)

Input Data

Drive Current Power Supply Type Power Factor Input Volatge
900mA Constant Current >0.9 25-38 V DC

Operating Details

Power Ambient Temperature Range
20W -20 to +50 °C

Physical Details

Weight Finish Ingress Protection
3000g (±10g) White,Silver IP20

Options

Single LED Colours Optics
Warm White, Neutral White, Pure White 86°

Bundled Driver Specification

Input Output Current Output Voltage
200-240V AC 900mA 25-38V DC

Applications

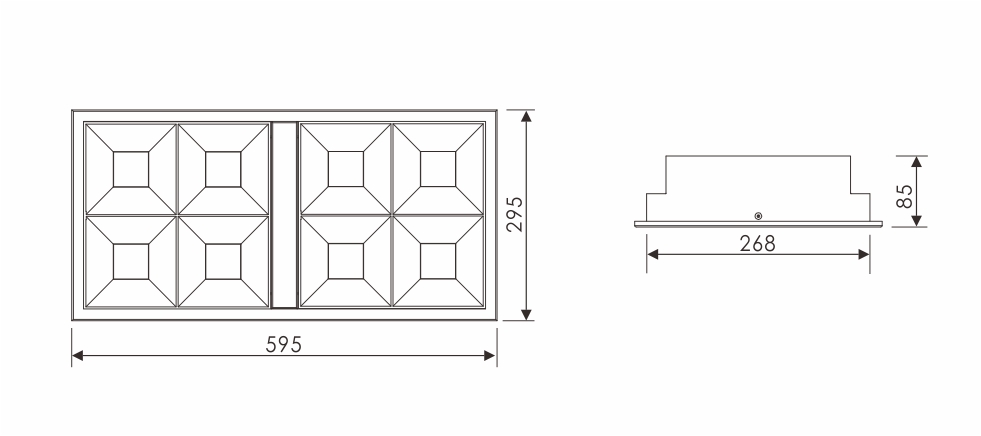

Mechanical Dimensions (Unit mm)

Available Colours

3000K

4000K

5000K

Installation Options

Recessed

Ceiling Mount

Pendant

Ceiling Embedded

Control Options

SWITCH

0/1-10V

TRIAC

DALI

PWM

EMERGENCY

Certification

CE

RoHS

CCC

ERP

FCC

ISO9001

Downloads

Ingress Protection

IP20
