Project Description

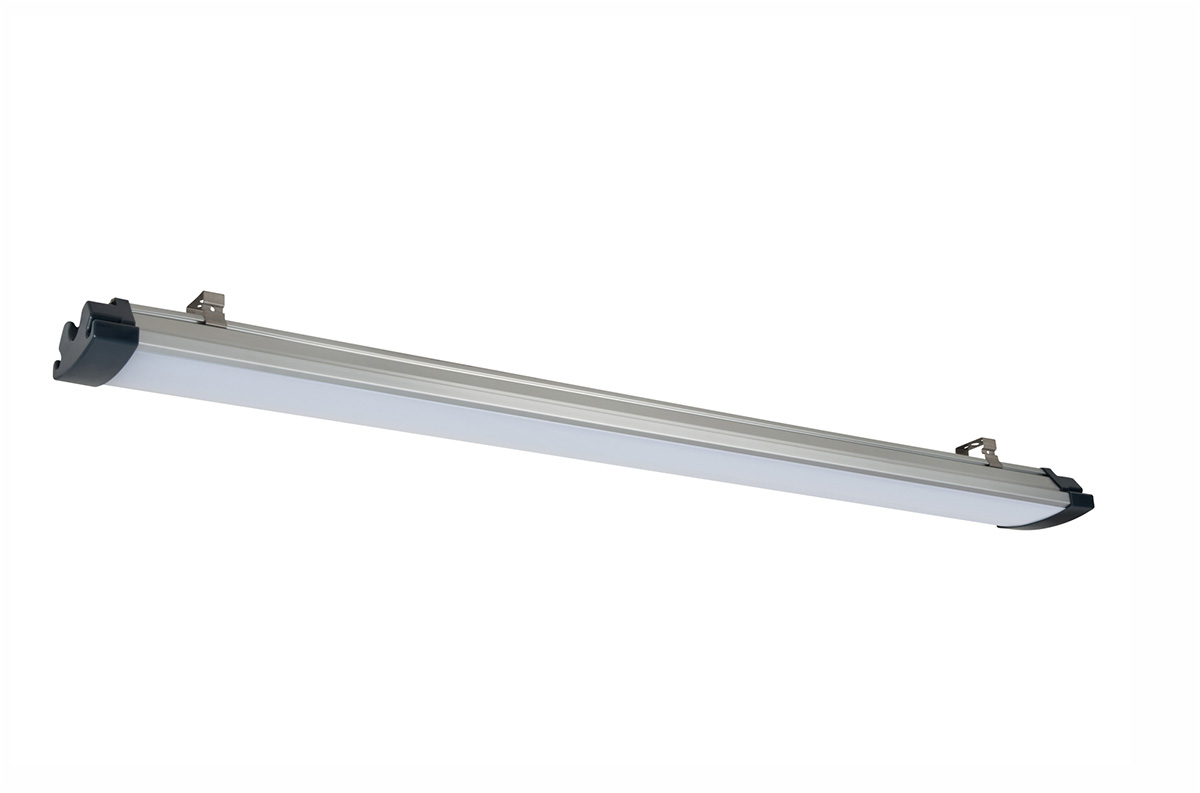

Product Code: 45W 1200MM LED Tri-proof Batten Linear | CL-TP-BN120-135-45W
Key Features
- Modern simplistic design with seamless connection
- Dali/0-10V/PWM/Traic Dimming available
- Modern simplistic design
- Energy saving,IP65
- Long Lifetime rating of over 50,000hrs
- Available in Silver finishes
- Ideal for both commercial or residential purposes
Product Description

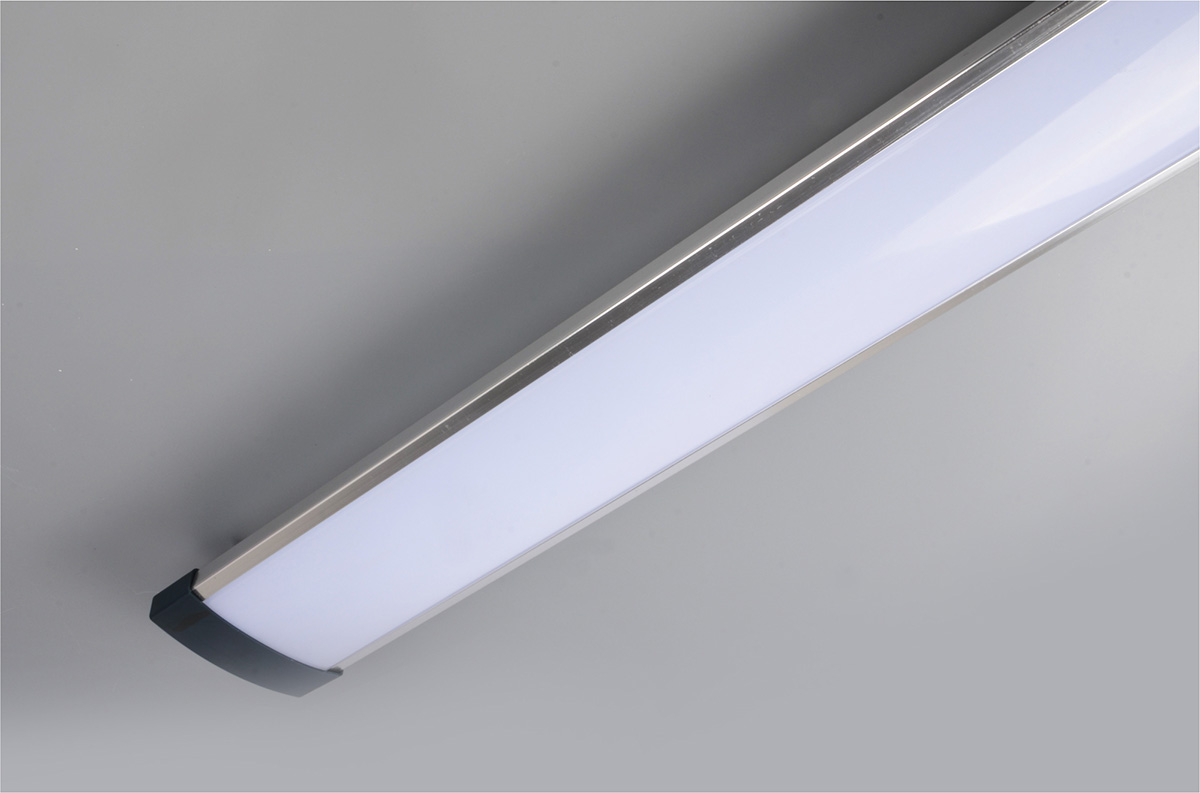

The Morley LED Tri-proof Batten Proline is a light weight, all-purpose Low – Mid Bay light fixture with versatile mounting options. It is designed to replace fluorescent fixtures of much higher wattages for multiple applications. This ultra-energy efficient high output luminaire consumes low wattage and provides glare free, 120° comfortable uniform lighting in most working environments.
The Passive Air Cooling System enables low LED Junction Temperatures (Tj) for maintenance free long life.
with a life expectancy that’s 5 times as long as fluorescent fixtures and 3 times longer than MH fixtures, the LED light reduces costly repairs, disposal fees, and the need for replacements. A weatherproof aluminum housing and frosted polycarbonate lens are dust tight as well as water and impact resistant for use in harsh environments. Mount on a wall or ceiling with included mounting brackets, or hang the fixture with a suspension kit (sold separately). Also available in a 5′ long 60-watt version. Mix and match both fixtures, and connect them in a series with compatible accessories
Specification
Lighting Performance
Colour Temperature | Lumen Output | LED Quantity | CRI | Minimum Lifetime |
---|---|---|---|---|
3000K, 4000K, 6000K | 6200lm | 240 | >80 | 50,000hrs |
N.B Lumen values quoted on Pure White (6000K)
Input Data
Drive Current | Power Supply Type | Power Factor | Input Volatge |
---|---|---|---|
1080mA | Constant Current | >0.9 | 25-38 V DC |
Operating Details
Power | Ambient Temperature Range |
---|---|
45W | -20 to +50 °C |
Physical Details
Weight | Finish | Ingress Protection |
---|---|---|
2400g (±10g) | Silver | IP65 |
Options
Single LED Colours | Optics |
---|---|
Warm White, Neutral White, Pure White | 120° |
Bundled Driver Specification
Input | Output Current | Output Voltage |
---|---|---|
100-240V AC | 1080mA | 25-38V DC |
Available Colours
3000K
4000K
6000K
Installation Options
![2](http://www.conluxs.com/wp-content/uploads/2018/12/2-1.jpg)
Pendant
![1](http://www.conluxs.com/wp-content/uploads/2018/12/1-1.jpg)

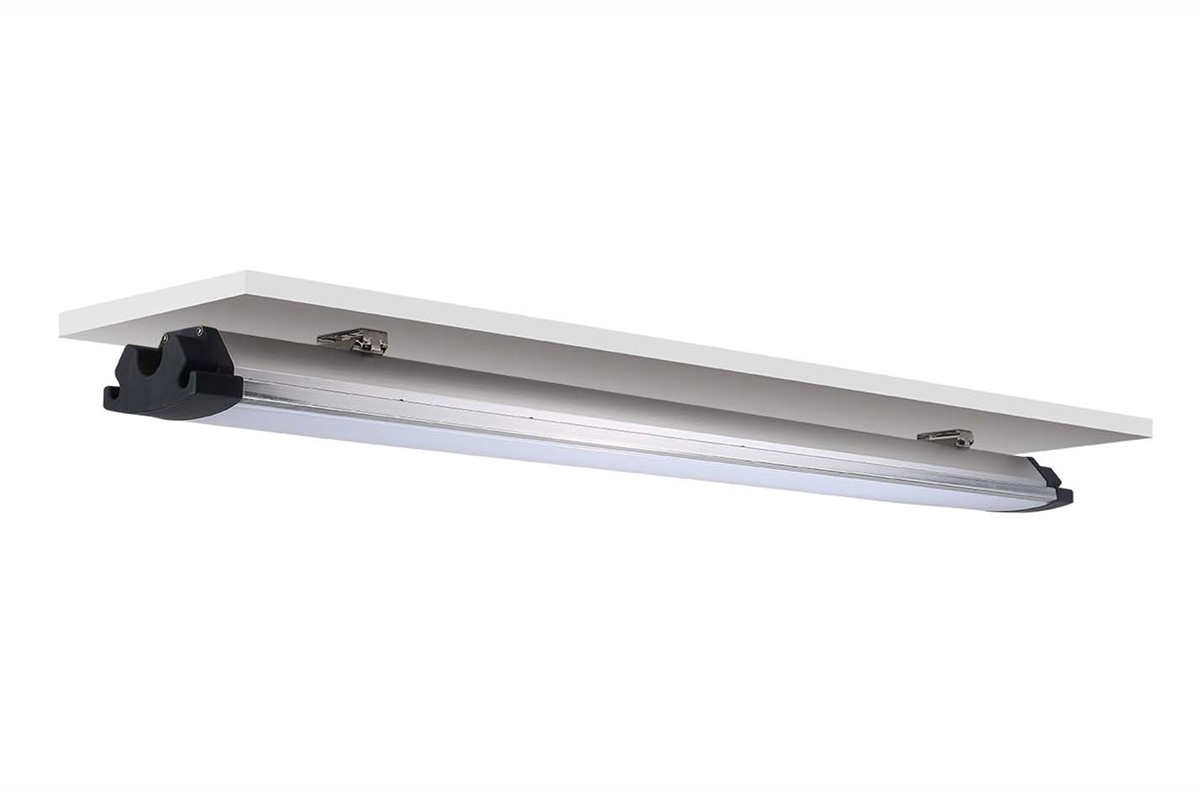

Ceiling Mount
Control Options
![switch](http://www.conluxs.com/wp-content/uploads/2018/12/switch.jpg)
SWITCH
![1-10v](http://www.conluxs.com/wp-content/uploads/2018/12/1-10v.jpg)
0/1-10V
![triac](http://www.conluxs.com/wp-content/uploads/2018/12/triac.jpg)
TRIAC
![DALI](http://www.conluxs.com/wp-content/uploads/2018/12/DALI.jpg)
DALI
![EMERGENCY](http://www.conluxs.com/wp-content/uploads/2018/12/EMERGENCY.jpg)
EMERGENCY
Certification
![ce](http://www.conluxs.com/wp-content/uploads/2018/12/ce.jpg)
CE
![rohs](http://www.conluxs.com/wp-content/uploads/2018/12/rohs.jpg)
RoHS
![Ccc](http://www.conluxs.com/wp-content/uploads/2018/12/Ccc.jpg)
CCC
![ERP](http://www.conluxs.com/wp-content/uploads/2018/12/ERP-1.jpg)
ERP
![iso](http://www.conluxs.com/wp-content/uploads/2018/12/iso.jpg)
