Project Description
Product Code: 60W 1500MM LED Tri-proof Batten Linear | CL-TP-BN150-135-60W
Key Features
- Modern simplistic design with seamless connection
- Dali/0-10V/PWM/Traic Dimming available
- Modern simplistic design
- Energy saving,IP65
- Long Lifetime rating of over 50,000hrs
- Available in Silver finishes
- Ideal for both commercial or residential purposes
Product Description
The Morley LED Tri-proof Batten Proline is a light weight, all-purpose Low – Mid Bay light fixture with versatile mounting options. It is designed to replace fluorescent fixtures of much higher wattages for multiple applications. This ultra-energy efficient high output luminaire consumes low wattage and provides glare free, 120° comfortable uniform lighting in most working environments.
The Passive Air Cooling System enables low LED Junction Temperatures (Tj) for maintenance free long life.
with a life expectancy that’s 5 times as long as fluorescent fixtures and 3 times longer than MH fixtures, the LED light reduces costly repairs, disposal fees, and the need for replacements. A weatherproof aluminum housing and frosted polycarbonate lens are dust tight as well as water and impact resistant for use in harsh environments. Mount on a wall or ceiling with included mounting brackets, or hang the fixture with a suspension kit (sold separately). Also available in a 5′ long 60-watt version. Mix and match both fixtures, and connect them in a series with compatible accessories
Specification
Lighting Performance
| Colour Temperature | Lumen Output | LED Quantity | CRI | Minimum Lifetime |
|---|---|---|---|---|
| 3000K, 4000K, 6000K | 7600lm | 300 | >80 | 50,000hrs |
N.B Lumen values quoted on Pure White (6000K)
Input Data
| Drive Current | Power Supply Type | Power Factor | Input Volatge |
|---|---|---|---|
| 1080mA | Constant Current | >0.9 | 25-38 V DC |
Operating Details
| Power | Ambient Temperature Range |
|---|---|
| 60W | -20 to +50 °C |
Physical Details
| Weight | Finish | Ingress Protection |
|---|---|---|
| 3200g (±10g) | Silver | IP65 |
Options
| Single LED Colours | Optics |
|---|---|
| Warm White, Neutral White, Pure White | 120° |
Bundled Driver Specification
| Input | Output Current | Output Voltage |
|---|---|---|
| 100-240V AC | 1080mA | 25-38V DC |
Applications

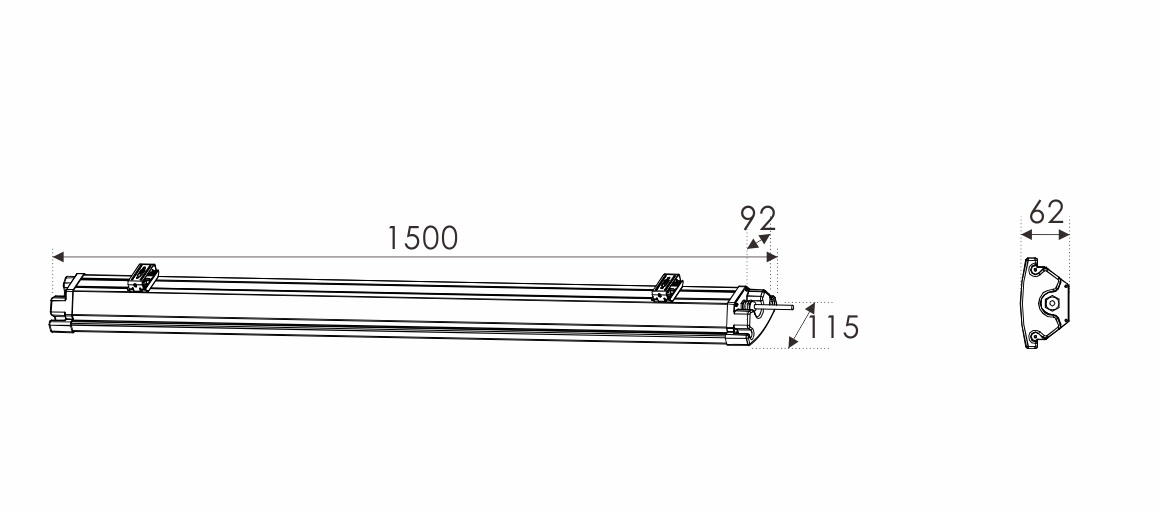

Mechanical Dimensions (Unit mm)
Available Colours
3000K
4000K
6000K
Installation Options
Pendant
Ceiling Mount
Control Options
SWITCH
0/1-10V
TRIAC
DALI
EMERGENCY
Certification
CE
RoHS
CCC
ERP
