CONLUXS Data Center Power Distribution Solution
Data Center Power Distribution
A clear framework for defining the electrical path from incoming supply to rack-level delivery —before drawings, equipment scope and project responsibilities are finalized.
Availability targets are assessed at facility level. Individual cabinets, UPS units and PDUs are specified as parts of the complete system, not as standalone guarantees.
Definition
What Is Data Center Power Distribution?

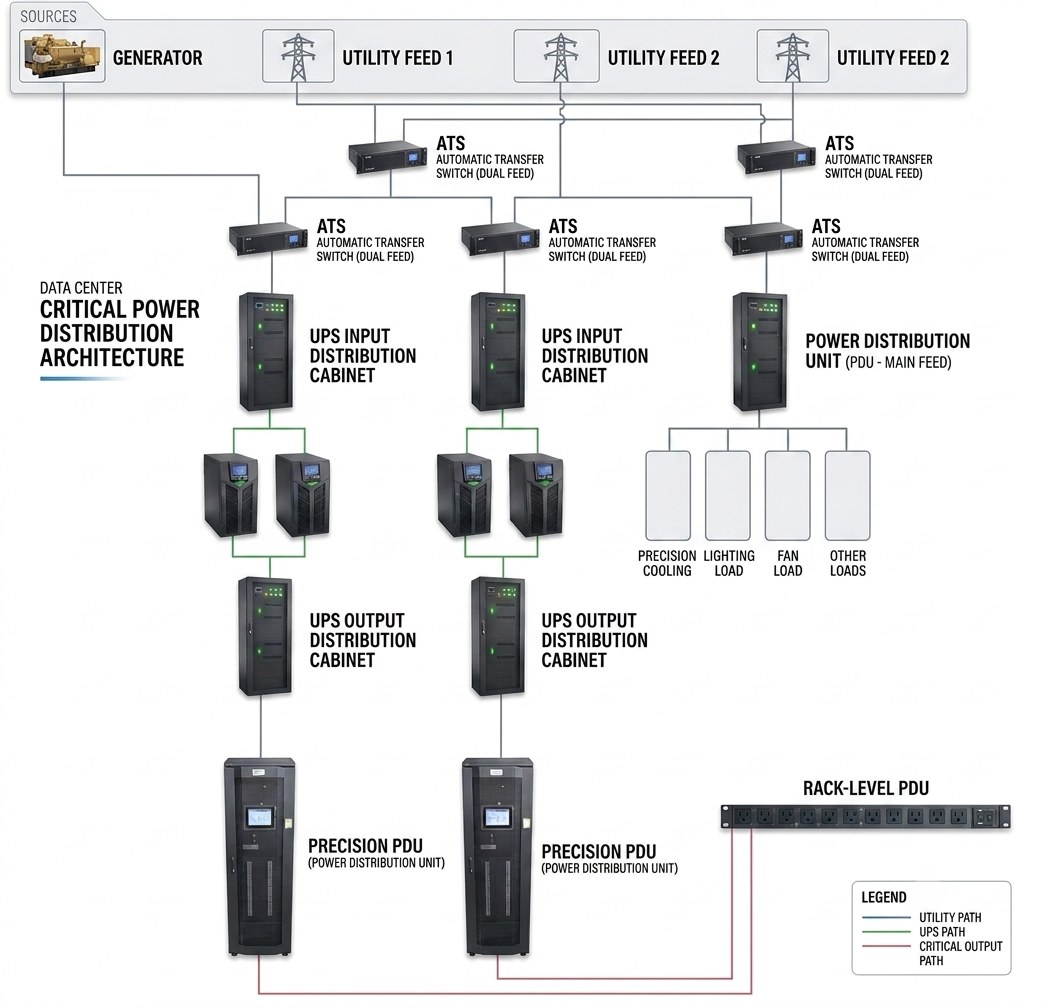

Data center power distribution is the electrical path that carries utility and generator power from the incoming supply through UPS and low-voltage switchgear to feeder cabinets, remote power panels and finally to rack-level outlets. CONLUXS LIGHTING CO., LIMITED supports this path as an international project-supply and technical-coordination partner for critical power, low-voltage distribution and energy-storage electrical equipment, helping project teams define equipment roles, interfaces and monitoring points before procurement begins.
Applications
Where This Architecture Applies
The same distribution framework applies across facility types, with equipment mix and redundancy approach adapted to each operating objective.
Enterprise
Corporate and institutional sites
IT, mechanical and site loads share one electrical environment where redundancy and monitoring objectives are defined at facility level.
Edge & Modular
Prefabricated and edge deployments
Compact feeder and rack-level distribution helps prefabricated modules arrive with tested, coordinated power paths.
Critical
Mission-critical facilities
Transfer, bypass and monitoring interfaces are coordinated so availability objectives remain visible in daily operation.

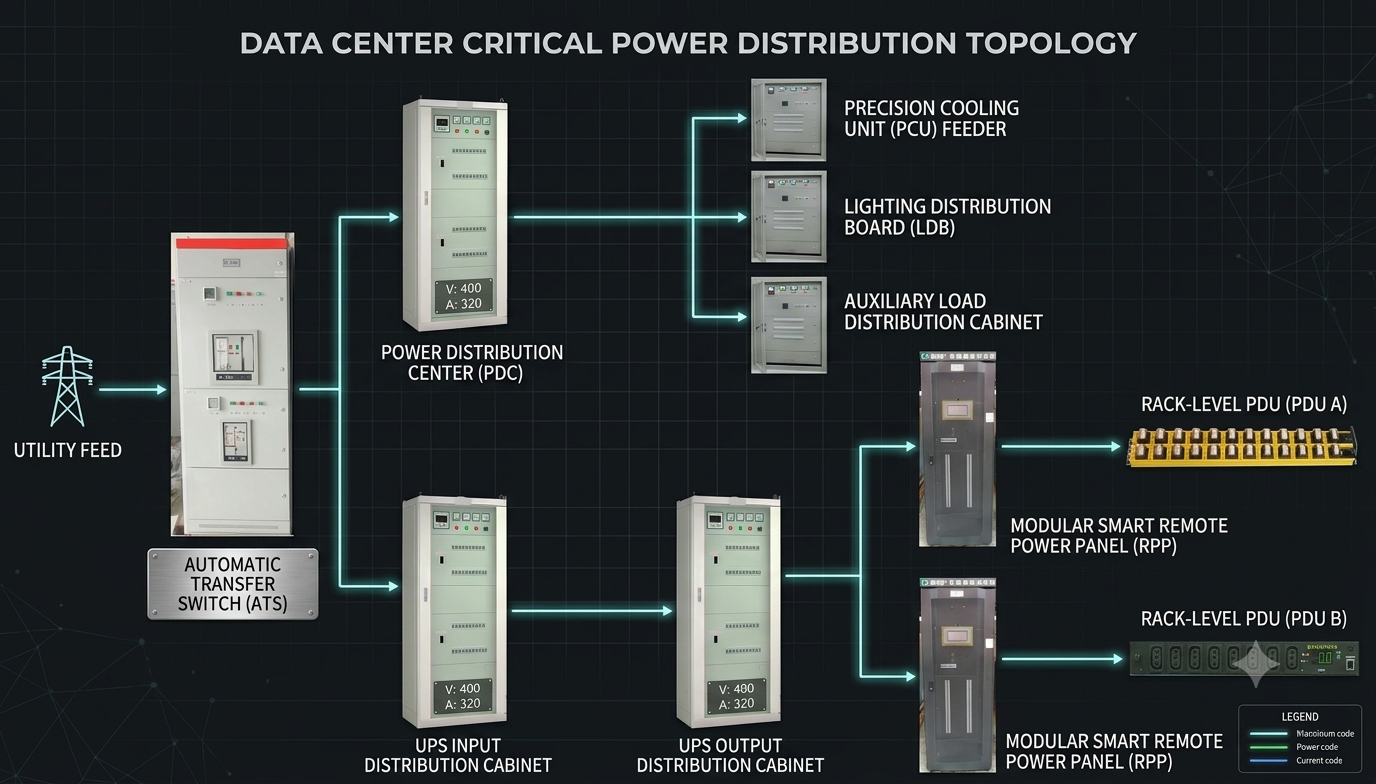

The Power Path
Keep the Architecture Easy to Read
Start with the functional path, then test every interface against load, maintenance and monitoring requirements. This makes technical reviews more useful than a list of isolated products.
Incoming supply
Utility, generator and transfer arrangements establish the available sources and operating scenarios.
UPS and bypass
Define UPS input, output, maintenance bypass and protection interfaces around the project topology.
Feeders and row distribution
Allocate critical and non-critical loads through feeder cabinets, PDCs and remote power panels.
Rack-level power
Bring usable, visible power to IT loads with the required branch, rack and alarm information.
Busway or cable
Choose the row-level route between feeder panels, RPPs and rack PDUs — busway for density and flexibility or cable for controlled routed capacity. Compare busway vs cable.
Design Decision
Define the Operating Objective Before Selecting Equipment

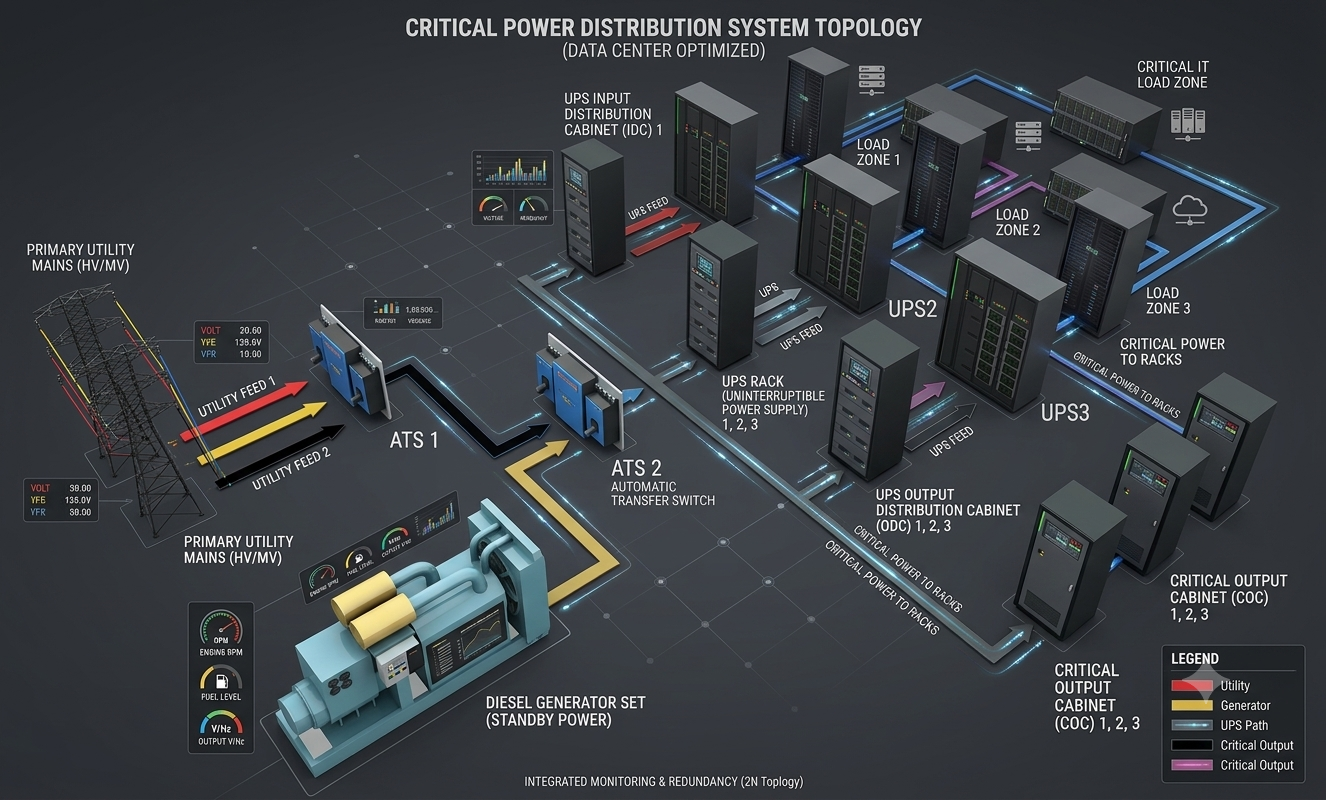

2N, N+1 and distributed approaches are not universal product features. They are facility-level choices that should be compared against the availability objective, load profile, maintenance strategy, failure scenarios, space and budget.
- Map critical IT and mechanical loads separately.
- Record voltage, frequency, earthing and fault level.
- Show generator, UPS and bypass interfaces on the one-line diagram.
- Decide what operators must monitor and act on.
Product Categories
Match Equipment to Each Stage of the Power Path
Products are grouped by the role they play in the distribution path. Every link points to a live product page on this site.
Incoming and Feeder
Incoming, AC distribution and feeder equipment that establish the source path and outgoing circuit visibility.
AC Distribution BoxAC Feeder CabinetUPS Feeder CabinetUPS Input-Output CabinetUtility CabinetIntegrated CabinetKSPM Power ModuleGCK SwitchgearUPS and Bypass
Transfer, bypass and stabilization interfaces around the UPS and maintenance paths.
JSTS Static Transfer SwitchUPS StabilizerPrecision and RPP
Precision power distribution and row-level remote power panels for monitored, coordinated delivery.
Precision Distribution CabinetPrecision CabinetFacility CabinetSU Power ModularRPP CabinetsRack-Level
Rack PDU and rack-level distribution matched to load, outlet and monitoring requirements.
Rack-Mount PDURack PDURack PDU UnitTechnical Scope
Inputs to Confirm Before the Layout Is Frozen
Give the project team enough information to compare configurations on engineering fit, not cabinet price alone.
Load
IT, mechanical and growth plan
Include diversity, starting currents, reserved capacity and the intended expansion sequence.
Electrical
Ratings and protection
Confirm supply data, fault level, protection coordination, earthing system and project standards.
Physical
Room and cable interfaces
Review access, clearance, cable routes, entry points, lifting and heat-management constraints.
Useful Documents for a Technical Review
A complete package is helpful but not required. Start with what is available and identify the open inputs early.
- One-line diagram or supply sketch
- IT and mechanical load schedule
- UPS and generator interface information
- Monitoring, protocol and alarm requirements
- Layout, cable route and access constraints
- Test, packing, delivery and site responsibilities
Related Resources
Read the Technical Guides
Published articles covering architecture, redundancy, deployment and equipment selection for data center power distribution, plus the CONLUXS Resource Center with catalog and integration guides.
Architecture and Evolution
Redundancy and Availability
Capacity and Deployment
Rack and PDU
Monitoring and Precision
UPS and Battery
Power Routing
Resource Center
Project Questions
Data Center Power Distribution FAQ
Can one cabinet make a data center Tier III or Tier IV compliant?
No. A facility availability target or certification depends on the complete power and cooling topology, maintenance approach, operating procedures and independent project requirements. A cabinet is one part of the overall system and must be specified within that wider design.
What inputs are needed to plan data center power distribution?
Provide the IT and mechanical load schedule, supply voltage and frequency, proposed redundancy approach, UPS and generator interfaces, one-line diagram, monitoring requirements, physical layout, cable routes and expansion plan.
When should 2N, N+1 or distributed redundancy be considered?
The appropriate topology depends on the availability objective, load profile, maintenance strategy, budget and failure scenarios that the project must address. Compare the alternatives at facility level before selecting equipment arrangements.
What should be monitored in a data center power distribution system?
Monitoring requirements are project-specific, but commonly include incoming electrical conditions, UPS status, feeder loads, branch circuits where needed, rack-level distribution and alarms. Define what operators must see, record and act on before choosing meters and communications interfaces.
Start a Technical Power Review
Share the available one-line diagram, load schedule and installation constraints. We can help frame the key questions for a practical project discussion.
