General Lighting Distribution Boxes

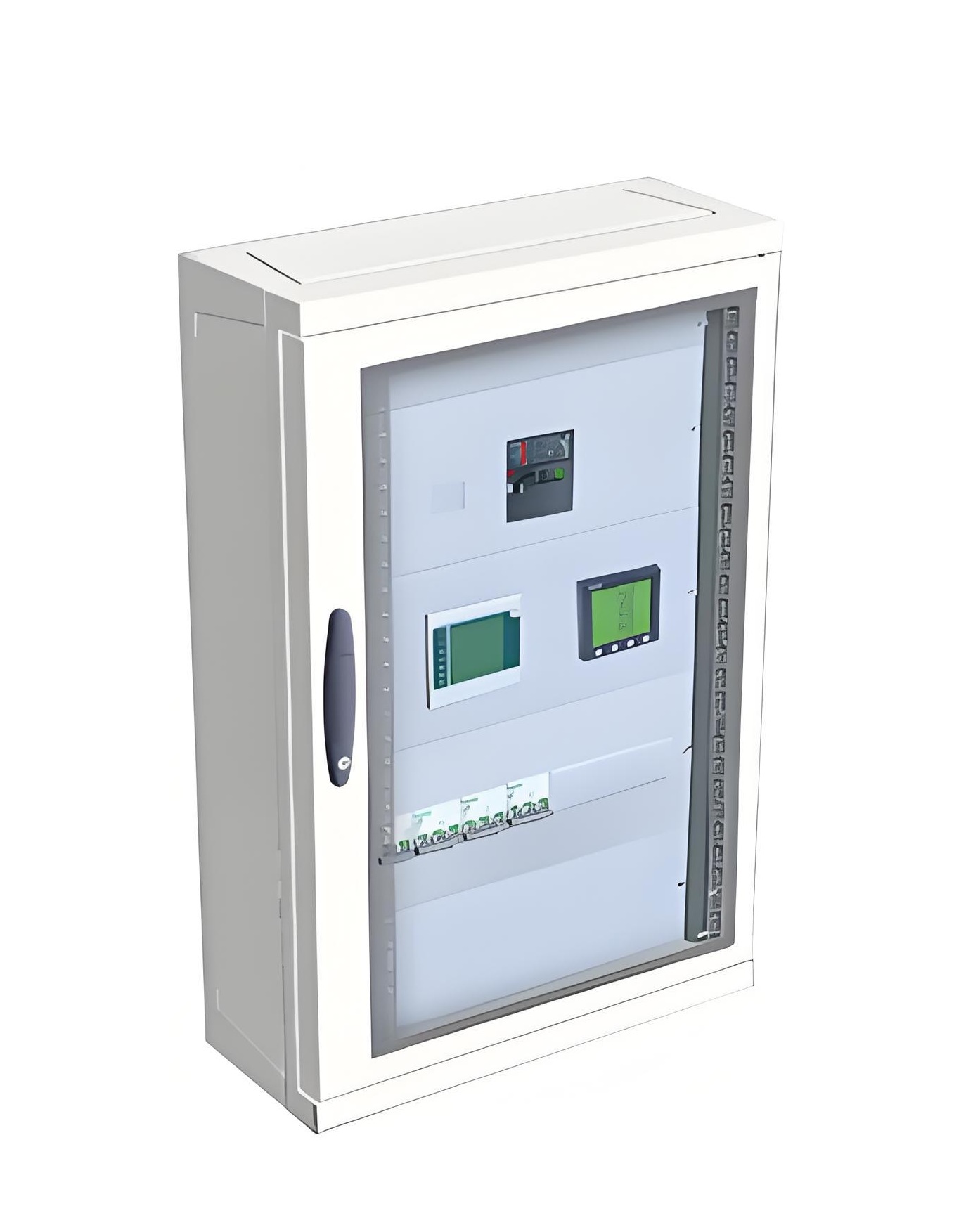

Model & Framework

MW Series · W600 × H800 × D200 mm · IP30 Standard Protection · Transparent Tempered Glass Door

In data center environments闁炽儲鏁媓ich typically feature windowless, ceiling-free architectural designs with high-precision operational requirements闁炽儲鏀砳ghting infrastructure must be highly reliable. Beyond standard energy efficiency, our solutions prioritize continuous, stable illumination to support 24/7 facility operations.

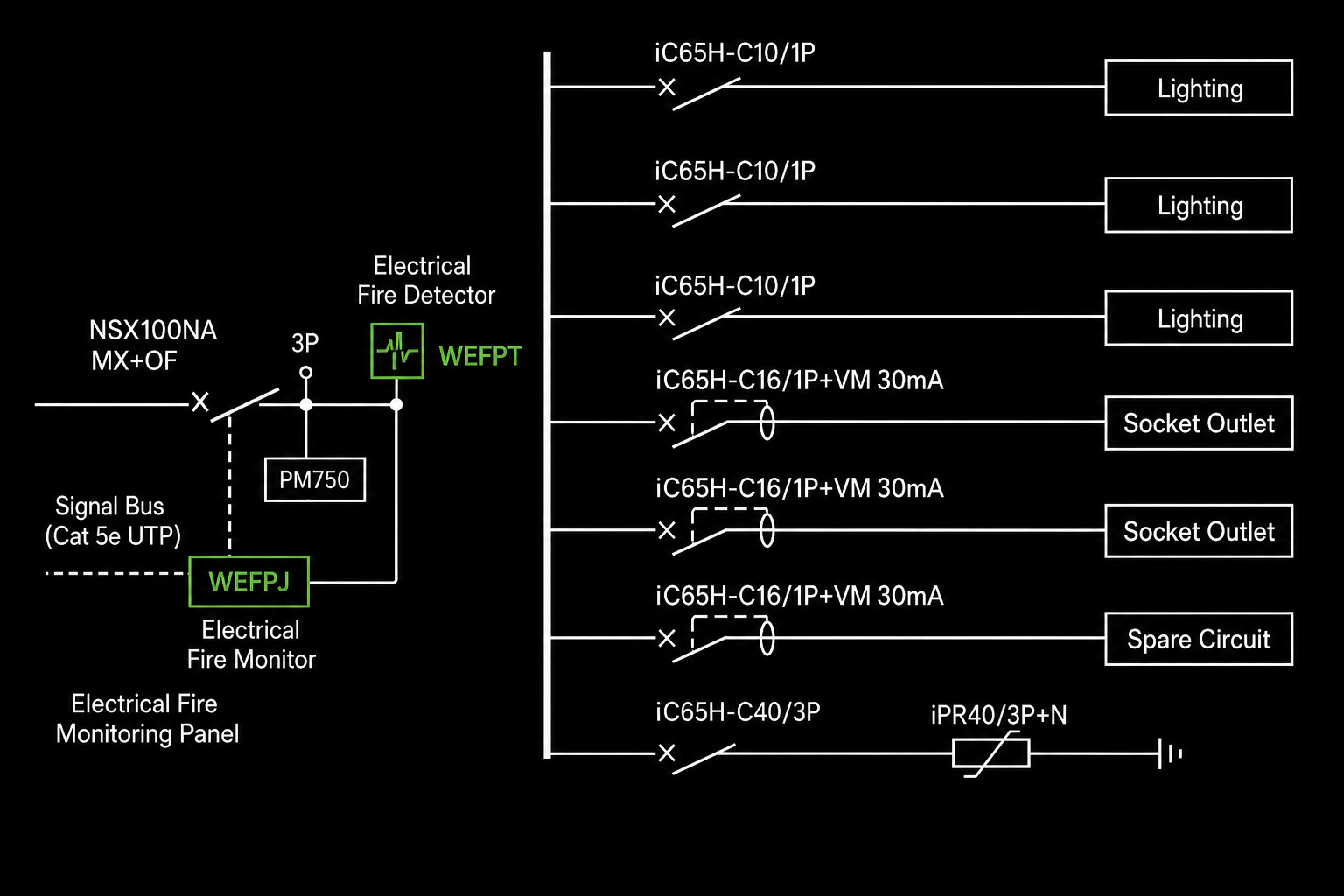

Advanced Power Intake & Monitoring

• High-Reliability Isolation: The main power intake utilizes Schneider Electric NSX NA Series Switch-Disconnectors (or optional Schneider Watsn ATS Series for dual-source redundancy). This design ensures a visible isolation break on the line side, guaranteeing maximum safety during facility maintenance.
• Remote Safety Tripping: The NSX NA switch-disconnectors are compatible with MX Shunt Trip Releases, enabling remote power-off of the lighting circuits triggered by a fire alarm command.
• Energy Intelligence & Diagnostics: The intake can be configured with a PM9C Power Meter, enabling real-time energy consumption tracking, power quality analytics, and proactive electrical fault detection.

Fire & Intelligent Control Integration

• Electrical Fire Monitoring System (EFMS): To prevent electrical hazards, the cabinet is designed for seamless integration with the Schneider Watsn WEFP Electrical Fire Detectors and Monitoring Units, providing continuous thermal and leakage surveillance.
• Intelligent Lighting Management: For optimal operational flexibility, we recommend Schneider Electric C-Bus Intelligent Lighting Control Systems. This architecture enables zoned and branch-circuit centralized control, offering both multi-point local manual overrides and unified, centralized facility management.
