Project Description

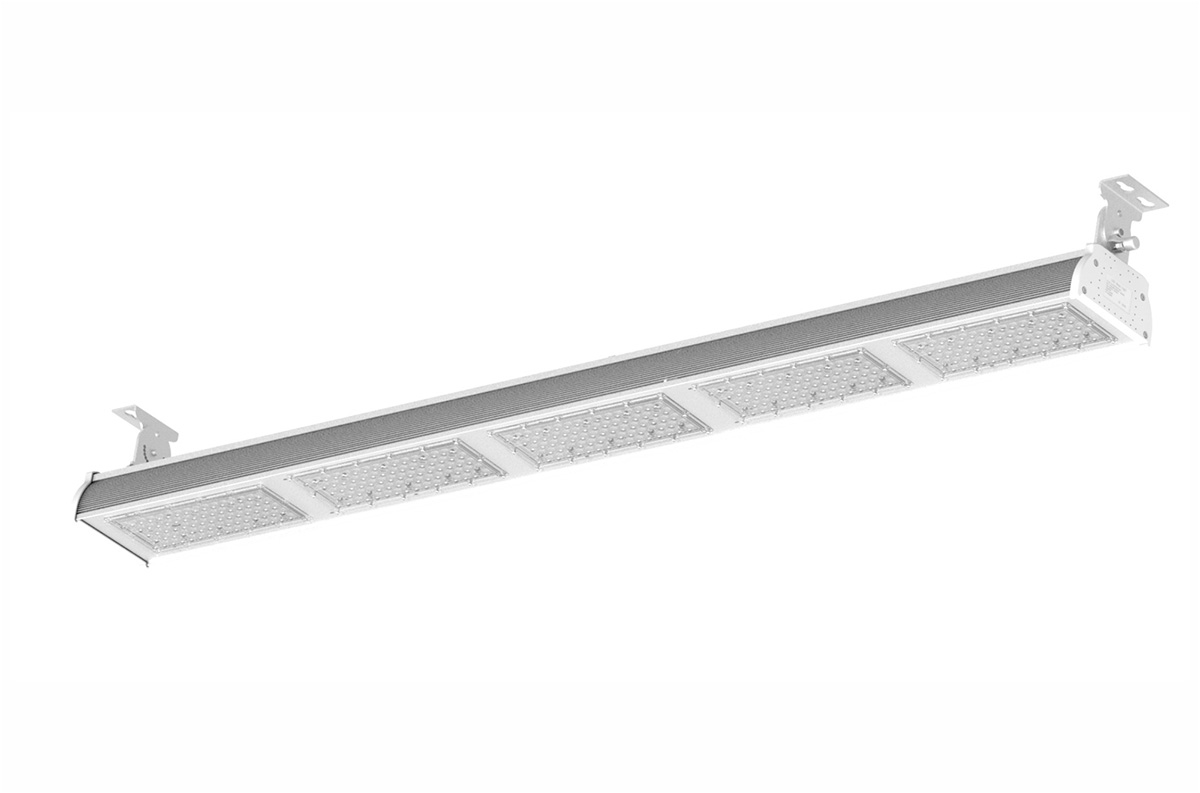

Product Code: 240W  LED Linear Highbay | CL-LHB-130-240W

Key Features

  • Robust aluminium housing
  • High Performance OSRAM/PHILIPS SMD LEDs
  • High Lumen output (130lm/W)
  • Low energy usage
  • Mercury Free
  • Long life time, rated for over 55,000hrs
  • Quality Meanwell/MOSO Driver
  • Compact Size
  • Weatherproof to IP65

Product Description

Faraday LED linear Highbay increase Visibility with Brighter, More Efficient Lighting

Better lighting can reduce eye-fatigue, improve visibility, and transform the appeal of a space, from warehouses to big-box stores.
Our new Linear High Bay fixtures provide bright, tailored illumination featuring four lens options for your specific needs: 140°&70°, for lighting along narrow warehouse aisles; 30°x70°, for wider aisle-illumination needs; and 30°, for garage, tunnel ,wash wall lighting;50°,for warehouse open area lighting, workshop,large grocerysymmetrical illumination and low glare.
Designed for easy mounting (hook, cable, or surface mount), these strong, lightweight, fully-assembled fixtures replace existing fluorescent or MH high-bays and provide superior uniformity for high visibility. The efficiency of Linear High Bays reduces energy consumption by 50% over existing fluorescent fixtures, increasing the return on your lighting investment. Moreover, these LED high bays are qualifying them for premium rebates. And with 0-10V dimming, our Linear High Bays can reduce energy costs even further. With a 55,000-hour rated life and 5-year warranty, our Linear High Bays significantly reduce your long-term operational and maintenance costs.

Specification

Lighting Performance

Colour Temperature Lumen Output LED  CRI Minimum Lifetime
3000K, 4000K, 6000K 28800lm OSRAM SMD3030 >80 55,000hrs

N.B Lumen values quoted on Pure White (6000K)

Input Data

Driver Brand Power Supply Type Power Factor Input Volatge
Meanwell Constant Current >0.95 25-38 V DC

Operating Details

Power Ambient Temperature Range
240W -40 to +50 °C

Physical Details

Weight Finish Ingress Protection
8200g (±10g) White,Silver,Black IP65

Options

Single LED Colours Optics
Warm White, Neutral White, Pure White 30°/50°/30×70°/140×70°

Bundled Driver Specification

Input Output Current Output Voltage
90-305V AC 1080mA 25-38V DC

Applications

Mechanical Dimensions (Unit mm)

Available Colours

3000K

4000K

6000K

Installation Options

Bracket mounting

Suspension

Control Options

SWITCH

0/1-10V

DALI

Occupancy Sensing

PWM

Certification

CE

RoHS

ERP

ISO9001

Downloads

Ingress Protection

IP65
