Project Description

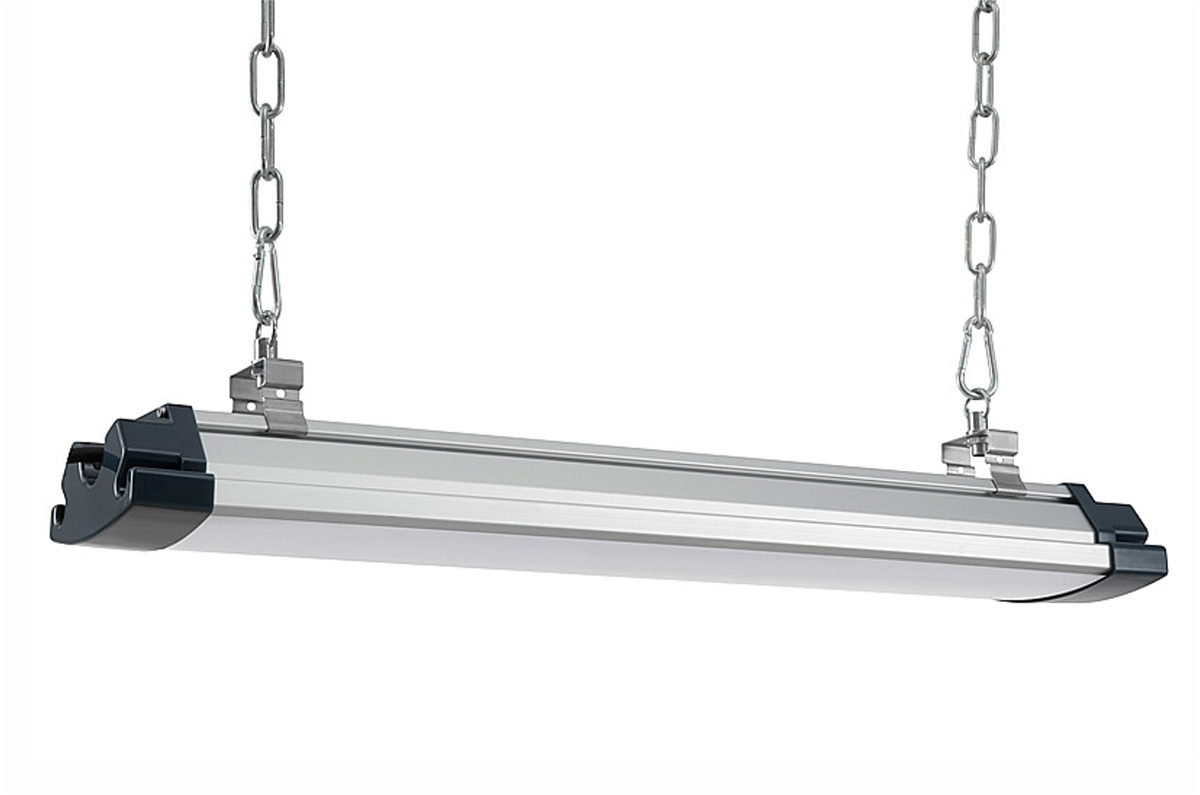

Product Code: 36W 900MM LED Tri-proof Batten Linear | CL-TP-BN90-135-36W

Key Features

  • Modern simplistic design with seamless connection
  • Dali/0-10V/PWM/Traic Dimming available
  • Modern simplistic design
  • Energy saving,IP65
  • Long Lifetime rating of over 50,000hrs
  • Available in Silver  finishes
  • Ideal for both commercial or residential purposes

Product Description

The Morley LED Tri-proof Batten Proline is a light weight, all-purpose Low – Mid Bay light fixture with versatile mounting options. It is designed to replace fluorescent fixtures of much higher wattages for multiple applications. This ultra-energy efficient high output luminaire consumes low wattage and provides glare free, 120° comfortable uniform lighting in most working environments.

The Passive Air Cooling System enables low LED Junction Temperatures (Tj) for maintenance free long life.

with a life expectancy that’s 5 times as long as fluorescent fixtures and 3 times longer than MH fixtures, the LED light reduces costly repairs, disposal fees, and the need for replacements. A weatherproof aluminum housing and frosted polycarbonate lens are dust tight as well as water and impact resistant for use in harsh environments. Mount on a wall or ceiling with included mounting brackets, or hang the fixture with a suspension kit (sold separately). Also available in a 5′ long 60-watt version. Mix and match both fixtures, and connect them in a series with compatible accessories

Specification

Lighting Performance

Colour Temperature Lumen Output LED Quantity CRI Minimum Lifetime
3000K, 4000K, 6000K 4800lm 180 >80 50,000hrs

N.B Lumen values quoted on Pure White (6000K)

Input Data

Drive Current Power Supply Type Power Factor Input Volatge
1080mA Constant Current >0.9 25-38 V DC

Operating Details

Power Ambient Temperature Range
36W -20 to +50 °C

Physical Details

Weight Finish Ingress Protection
1800g (±10g) Silver IP65

Options

Single LED Colours Optics
Warm White, Neutral White, Pure White 120°

Bundled Driver Specification

Input Output Current Output Voltage
100-240V AC 1080mA 25-38V DC

Applications

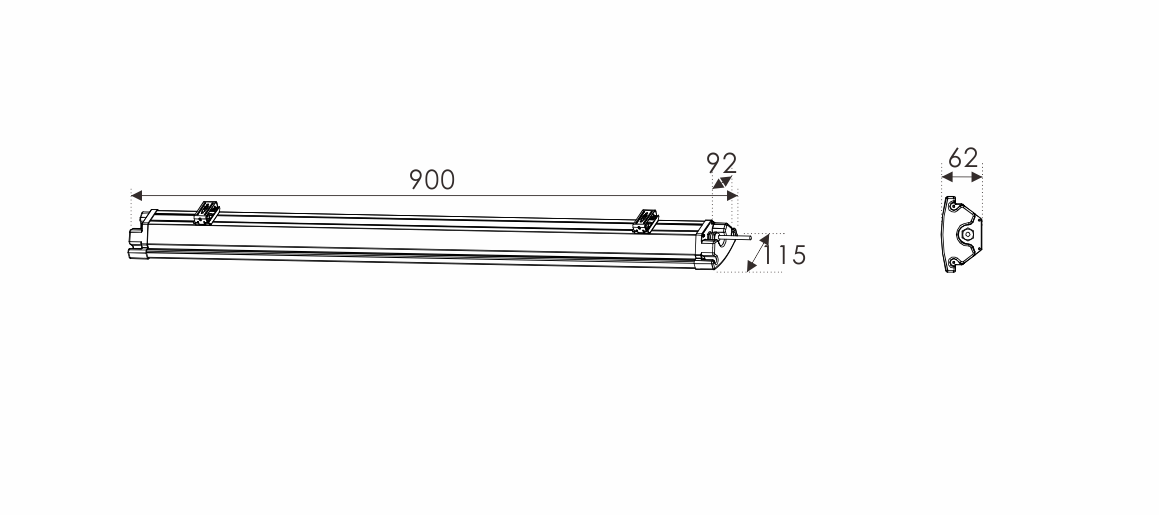

Mechanical Dimensions (Unit mm)

Available Colours

3000K

4000K

6000K

Installation Options

Pendant

Ceiling Mount

Control Options

SWITCH

0/1-10V

TRIAC

DALI

EMERGENCY

Certification

CE

RoHS

CCC

ERP

ISO9001

Downloads

Accessories

Catalogue

Ingress Protection

IP65
