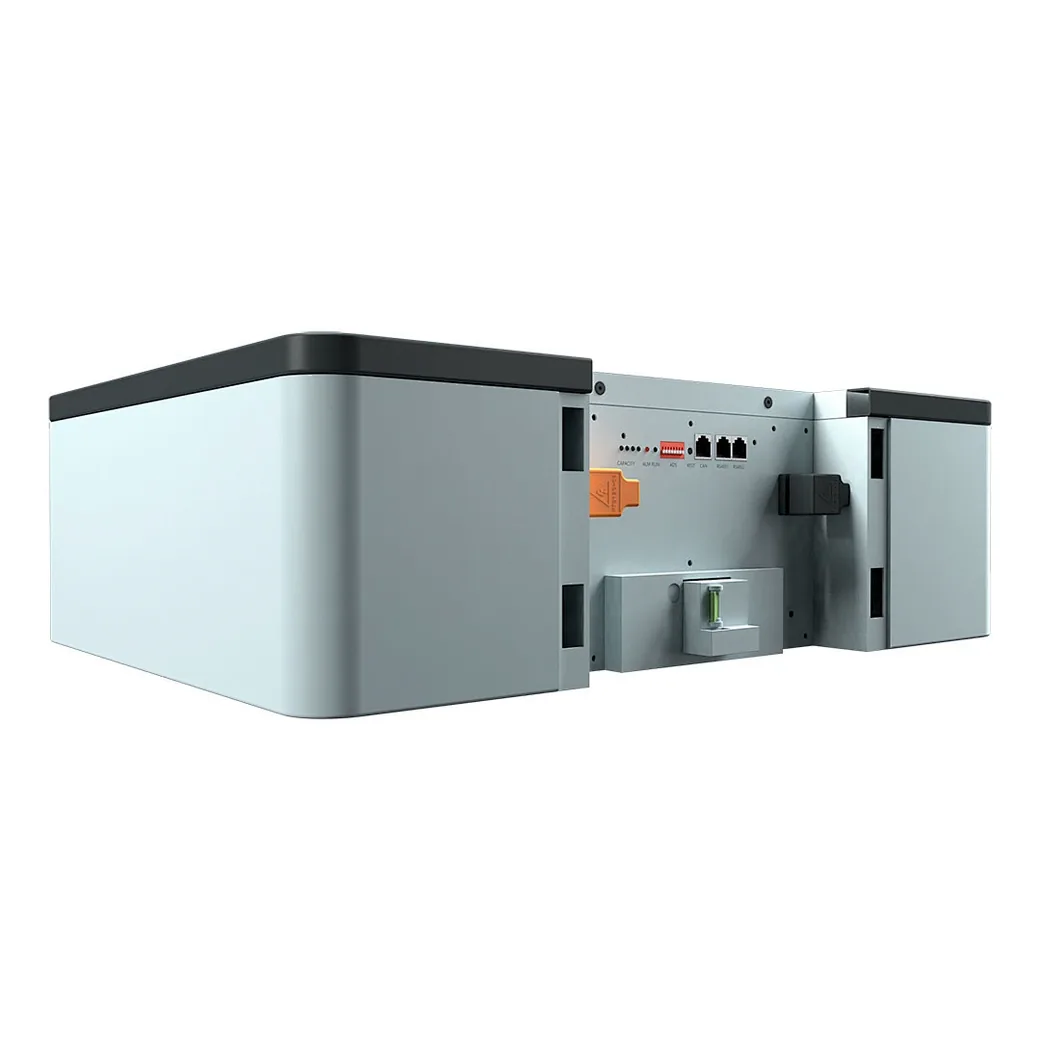

AURO-S 5.32 kWh LiFePO4 Battery
51.2V modular solar storage battery for residential and small commercial solar systems.
CONLUXS AURO-S · 51.2V · 104Ah · 5.32 kWh
Product Overview
The AURO-S is a 5.32 kWh solar storage battery built around 104Ah LiFePO4 cells in a 1P16S configuration at 51.2V. With 630x470x270mm dimensions and a 50kg weight, it is designed for floor and shelf installations in residential settings. The pack supports up to 104A maximum charge and discharge current with a rated current of 52A, serving typical household loads. CAN and RS485 communication connects it to a range of low-voltage hybrid inverters.
Key Performance Specifications
Key Technical Highlights
- High Current Capacity: Up to 104A max charge/discharge supports higher loads.
- Automotive-Grade Cells: Automotive-grade LiFePO4 cells for stable daily cycling.
- Passive Balancing: Smart BMS maintains cell consistency.
- Plug-and-Play: Pre-wired connections simplify installation.
- Bluetooth Monitoring: Bluetooth status monitoring available.
- CAN / RS485: Communicates with mainstream low-voltage inverters.
What Is It
AURO-S is a 5.32 kWh 51.2V LiFePO4 battery with an intelligent BMS and up to 104A current for residential solar storage.
Key Applications
Residential self-consumption, solar backup, off-grid and hybrid solar systems.
Engineering Advantages
| Advantage | Description |
|---|---|
| Automotive-Grade Cells | Automotive-grade LiFePO4 cells deliver stable performance across many cycles. |
| Passive Cell Balancing | Integrated BMS keeps cell consistency and extends service life. |
| High Current Headroom | Up to 104A max current supports demanding household loads. |
| Plug-and-Play | Pre-wired connections shorten installation time on site. |
| Wide Compatibility | CAN and RS485 communication covers mainstream low-voltage inverters. |
Technical Specifications
| Item | Specifications |
|---|---|
| Rated energy(kWh) | 5.32KWh |
| Configuration | 1P16S |
| Nominal Voltage(V) | 51.2V |
| Nominal Capacity(Ah) | 104Ah |
| Working Voltage(V) | 42V~58.4V |
| Rated charge/discharge / Current(A) | 52A @25±2℃ |
| Maximum charge/discharge current | 104A@25±2℃ |
| Working Temperature | 0～40℃(Charge) -20～40℃(Discharge) |
| Weight(Kg) | 50Kg±3kg |
| Dimension(mm) | 630×470×270mm |
| Cycle life | 4800 cycles @25℃ 50A charge and discharge current 70% standard capacity 80% DOD |
| Communication mode | CAN&RS485 |
Suitable Inverters
| Brand | Protocol | Communication | Versions |
|---|---|---|---|
| Pylontech | CAN-Bus-Protocol-PYLON | CAN | V1.3 |
| Goodwe | Goodwe Communication Protocol | CAN | V1.5 |
| Lolis | CAN Communication Protocol | CAN | V1.0 |
| Sofar | BMS CAN BUS Protocol | CAN | V1.0 |
| SMA | FSS-ConnectingBat-TI-EN-20W | CAN | V2.0 |
| Victron | Can-Bus_Bms_Protocol | CAN | V1.0 |
| LUXPOWER | Luxpowertek Battery CAN Protocol | CAN | V1.0 |
| Studer | Technical Specification Studer BMS Protocol | CAN | V1.03 |
| TBB | TBB BMS CAN Communication V1.02 | CAN | V1.02 |
| Deye | CAN-Bus-Protocol-PYLON-V1.3 | CAN | V1.0 |
| Sorocec | 2_CAN Protocol 1.0 | CAN | V1.0 |
| MEGAREVO | Hybrid Inverter_5K_BMS Protocol V1.01 | CAN | V1.01 |
| Amensolar | CAN-Bus-Protocol-PYLON | CAN | V1.0 |
| MUST | PV1800F-CAN Communication Protocol | CAN | V1.04.04 |
| AFORE | Luxpowertek Battery CAN Protocol | CAN | V1.0 |
| Pylontech | RS485-Protocol-Pylon-Low-Voltage | 485 | V3.5 |
| Voltronic Power | Voltronic Inverter And BMS 485 Communication Protocol | 485 | V1.0 |
| SRNE | PACE BMS Modbus Protocol For RS485 | 485 | V1.3 |
| Deye | RS485-Protocol-Pylon-Low-Voltage | 485 | V1.0 |
Frequently Asked Questions
What is the rated capacity of the AURO-S?
104Ah at 51.2V, delivering 5.32 kWh of usable energy.
Can multiple units be connected?
Yes, modular units can be connected for larger battery banks.
Which inverters are compatible?
CAN and RS485 communication with mainstream low-voltage hybrid inverters.
What is the cycle life?
4800 cycles at 25C with 80% DOD and capacity retention.
What current does it support?
Rated 52A and up to 104A maximum charge/discharge current.
