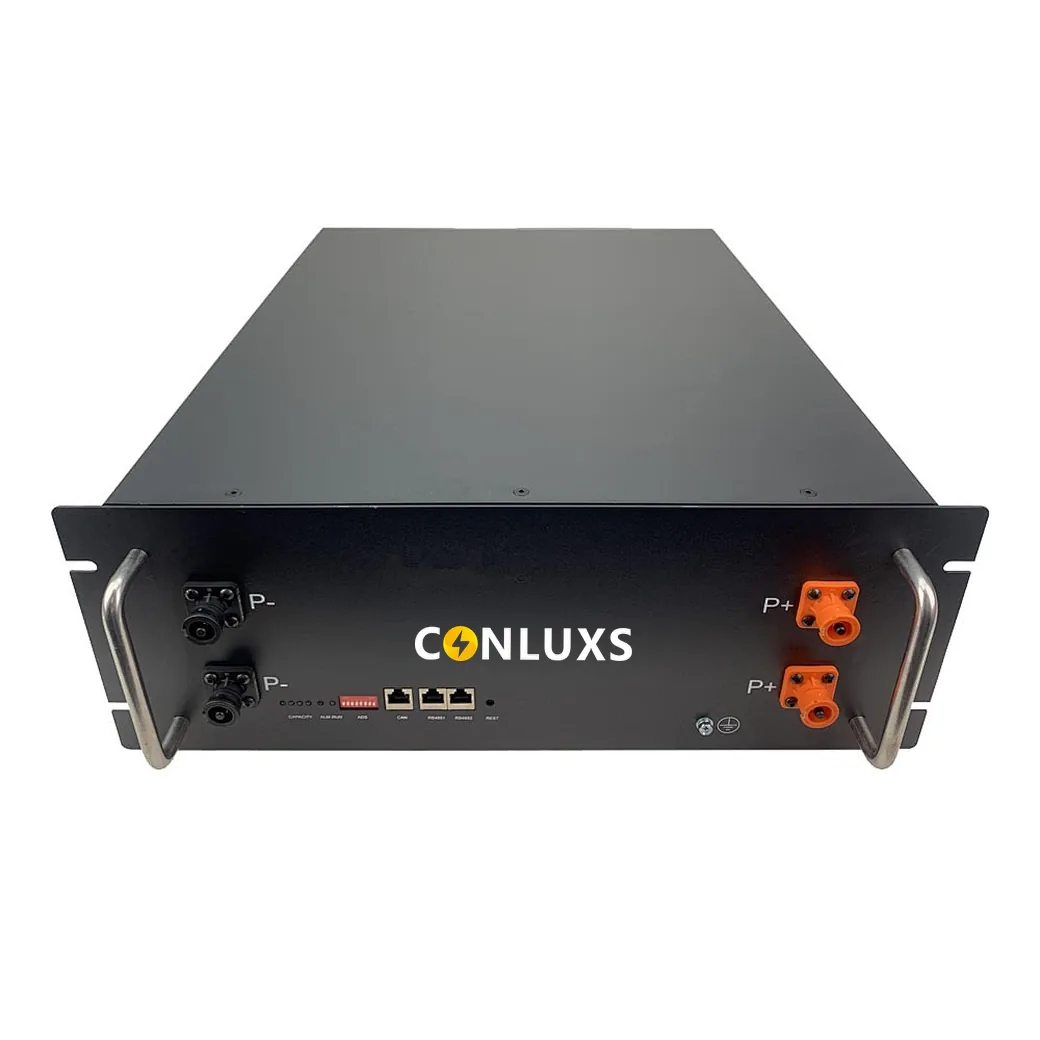

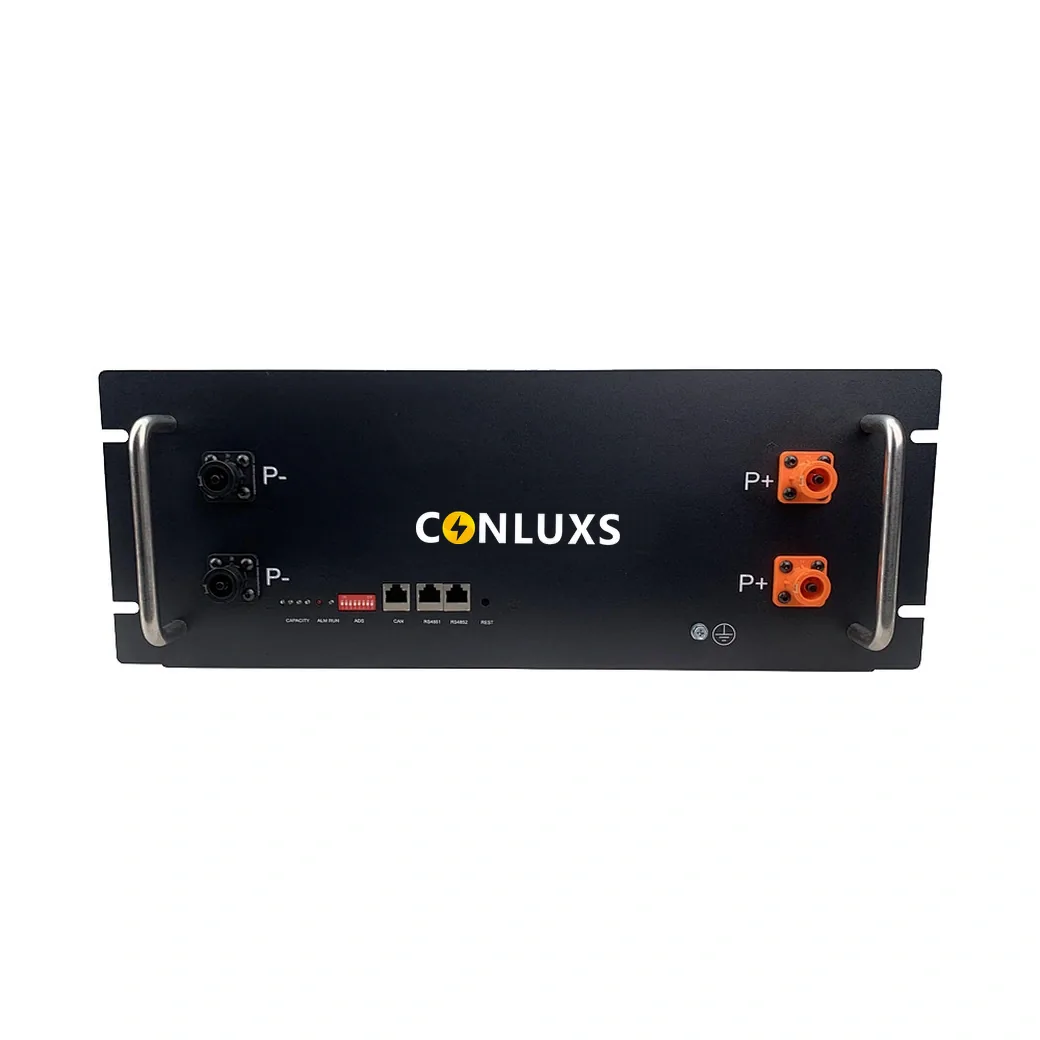

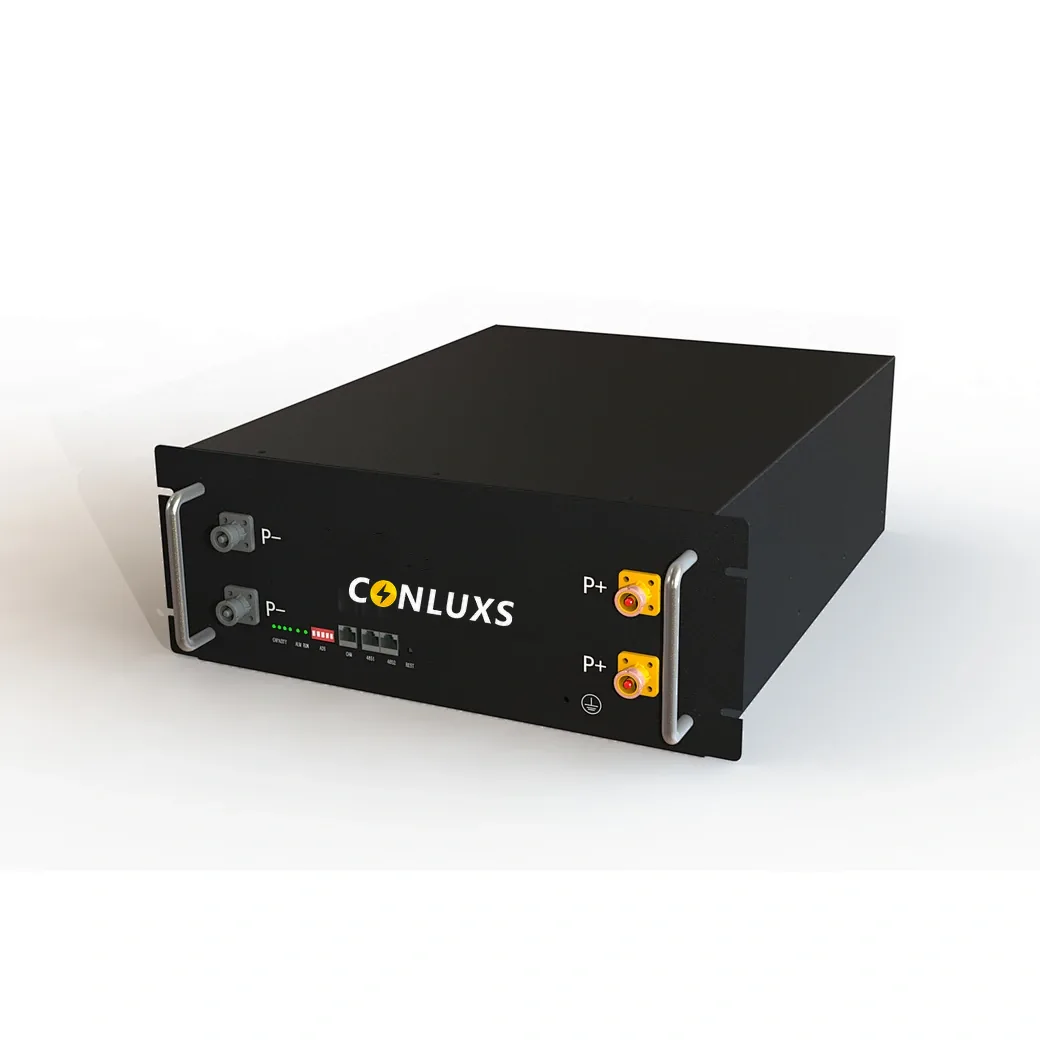

ELUX-R 5.12 kWh LiFePO4 Rack Mounted Battery
Rack mounted 51.2V modular solar storage battery for residential and small commercial solar systems.
CONLUXS ELUX-R · 51.2V · 100Ah · 5120Wh · Rack mount
Product Overview
The ELUX-R is a 5.12 kWh rack mounted solar storage battery built around automotive-grade 100Ah LiFePO4 cells in a 2P8S configuration. The rack form factor makes it a practical fit for standard 19-inch server racks and utility rooms where floor space is limited. Each pack integrates a smart BMS with passive balancing to keep cell consistency and stable performance over many cycles. The complete pack is TUV-certified and carries CE, ROHS, MSDS and UN38.3 documentation, simplifying project compliance on residential and small commercial installations.
Key Performance Specifications
Key Technical Highlights
- Rack Mounted Design: 19-inch rack form factor optimised for utility rooms and compact installations.
- Automotive-Grade Cells: Built on automotive-grade LiFePO4 cells with TUV-certified pack safety.
- Passive Balancing: Integrated smart BMS keeps cell consistency over time for stable performance.
- Bluetooth Monitoring: Built-in Bluetooth monitoring keeps battery status at hand without extra wiring.
- Plug-and-Play: Pre-wired connections reduce installation time on site.
- Wide Compatibility: CAN and RS485 x2 protocols cover Pylontech, Goodwe, Deye, Victron, SMA and more.
What Is It
ELUX-R is a 5.12 kWh rack mounted 51.2V LiFePO4 battery with smart BMS, passive balancing and CAN/RS485 communication for residential and small commercial solar systems.
Key Applications
Residential solar self-consumption, rack based commercial battery rooms, off-grid and hybrid solar systems.
Engineering Advantages
| Advantage | Description |
|---|---|
| TUV-Certified Safety | The complete pack is TUV-certified, providing verified safety standards for installation. |
| Automotive-Grade Cells | Automotive-grade LiFePO4 cells deliver extended cycle life and stable daily performance. |
| Passive Cell Balancing | The smart BMS keeps cell consistency and reduces drift over the battery's service life. |
| Rack Optimised Footprint | The rack mount layout reduces floor space use and simplifies cable management. |
| Wide Inverter Compatibility | CAN and RS485 x2 communication covers Pylontech, Goodwe, Deye, Victron, SMA and other major brands. |
Technical Specifications
| Item | Specifications |
|---|---|
| Nominal Capacity | 100Ah @0.5C discharge current 25±2℃ |
| Nominal Voltage | 51.2V |
| Rated Capacity (Ah) | 98-105Ah @0.5C discharge current 25±2C 41.6V - 57.6V |
| Cell Dimension | 565*440*170mm |
| Continuously Charge/Discharge Current (A) | 100A @25±2℃ |
| Standard charge/discharge Current (A) | 50A @25±2℃ |
| Configuration | 2*1P8S |
| Net Weight(single cell) | 56.2±5KG |
| Standard Charge Current | 50A @25±2℃ |
| Cycle life | ≥80% capacity state after 6000 cycles at 0.5C, 25℃, 80% DOD EOL 80% |
| Standard Discharge Current | 50A @25℃ room temperature |
| Certification | TUV,CE, ROHS, MSDS, UN38.3 |
Suitable Inverters
| Brand | Protocol | Communication | Versions |
|---|---|---|---|
| Pylontech | CAN-Bus-Protocol-PYLON | CAN | V1.3 |
| Goodwe | Goodwe Communication Protocol | CAN | V1.5 |
| Lolis | CAN Communication Protocol | CAN | V1.0 |
| Sofar | BMS CAN BUS Protocol | CAN | V1.0 |
| SMA | FSS-ConnectingBat-TI-EN-20W | CAN | V2.0 |
| Victron | Can-Bus_Bms_Protocol | CAN | V1.0 |
| LUXPOWER | Luxpowertek Battery CAN Protocol | CAN | V1.0 |
| Studer | Technical Specification Studer BMS Protocol | CAN | V1.03 |
| TBB | TBB BMS CAN Communication V1.02 | CAN | V1.02 |
| Deye | CAN-Bus-Protocol-PYLON-V1.3 | CAN | V1.0 |
| Sorocec | 2_CAN Protocol 1.0 | CAN | V1.0 |
| MEGAREVO | Hybrid Inverter_5K_BMS Protocol V1.01 | CAN | V1.01 |
| Amensolar | CAN-Bus-Protocol-PYLON | CAN | V1.0 |
| MUST | PV1800F-CAN Communication Protocol | CAN | V1.04.04 |
| AFORE | Luxpowertek Battery CAN Protocol | CAN | V1.0 |
| Pylontech | RS485-Protocol-Pylon-Low-Voltage | 485 | V3.5 |
| Voltronic Power | Voltronic Inverter And BMS 485 Communication Protocol | 485 | V1.0 |
| SRNE | PACE BMS Modbus Protocol For RS485 | 485 | V1.3 |
| Deye | RS485-Protocol-Pylon-Low-Voltage | 485 | V1.0 |
Frequently Asked Questions
What are the rated capacity and energy of the ELUX-R?
100Ah nominal capacity and 5120Wh rated energy at 51.2V nominal voltage.
How many ELUX-R units can be connected in parallel?
Up to 32 units in parallel through the smart BMS.
Which inverters are compatible with the ELUX-R?
Models from Pylontech, Goodwe, Deye, Victron, SMA and more, via CAN or RS485 protocols.
What is the cycle life of the battery?
The pack maintains at least 80% capacity after 6000 cycles at 0.5C discharge, 25C and 80% DOD.
Can the system be expanded later?
Yes. The stackable modular design lets you add packs to scale capacity as demand grows.
