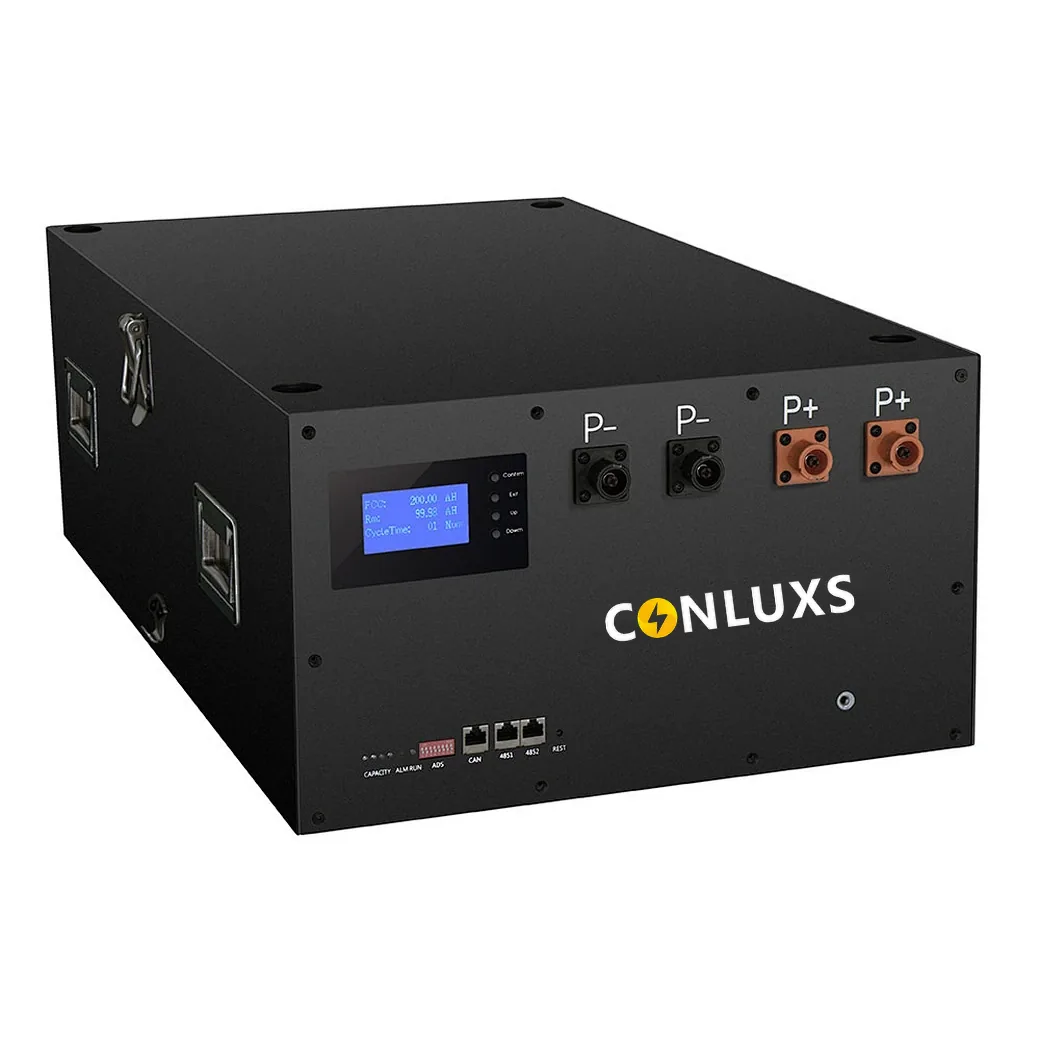

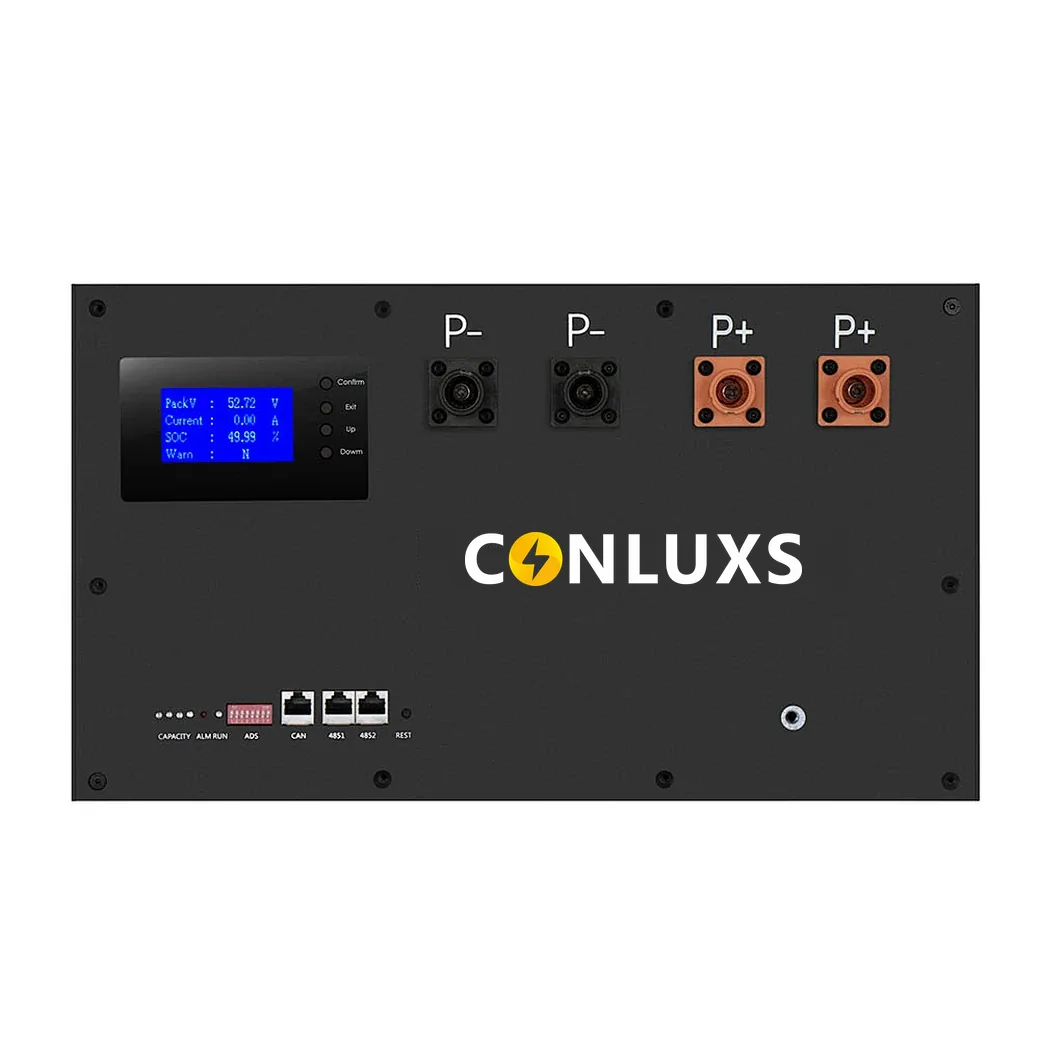

MELE-S 14.3 kWh Rack Mounted LiFePO4 Battery
Rack mounted 48V solar storage battery for residential and small commercial installations.
CONLUXS MELE-S · 48V · 280Ah · 14.3 kWh · Rack mount
Product Overview
The MELE-S-280 battery is a 14.3 kWh rack mounted storage pack built on 280Ah LiFePO4 cells at 48V nominal voltage. The rack form factor suits standard 19-inch racks and utility rooms for orderly cable management. A smart BMS with passive balancing maintains cell consistency across the 8S configuration. CAN and RS485 communication connects the pack to a wide range of low-voltage hybrid inverters, with applications in renewable energy and inverter integration.
Key Performance Specifications
Key Technical Highlights
- Rack Mounted Design: Fits standard 19-inch racks for tidy installation.
- Automotive-Grade Cells: Automotive-grade LiFePO4 cells with long cycle life.
- Passive Balancing: Smart BMS keeps cell consistency over time.
- Bluetooth Monitoring: At-hand status monitoring via Bluetooth.
- CAN / RS485 x2: Wide inverter protocol compatibility.
- TÜV-Certified Pack: Certified pack safety for project compliance.
What Is It
MELE-S-280 is a 14.3 kWh rack mounted 48V LiFePO4 battery with smart BMS, passive balancing and CAN/RS485 x2 communication.
Key Applications
Rack based residential storage, small commercial installations, hybrid solar systems.
Engineering Advantages
| Advantage | Description |
|---|---|
| Rack Mount Form Factor | 19-inch rack layout optimises space and cable management. |
| Automotive-Grade Cells | Automotive-grade LiFePO4 cells for stable, long-term cycling. |
| Passive Cell Balancing | BMS keeps cells consistent, extending pack performance. |
| Wide Compatibility | CAN and RS485 x2 cover Pylontech, Goodwe, Deye, Victron and more. |
| Project-Ready Documentation | TUV, CE, CQC, ROHS, MSDS and UN38.3 documentation available. |
Technical Specifications
| Item | Specifications |
|---|---|
| Rated energy(kWh) | 14.3KWh |
| Configuration | 1P16S |
| Nominal Voltage(V) | 51.2V |
| Nominal Capacity(Ah) | 280Ah @0.5C discharge current 25±2℃ |
| Discharge Cut-off Voltage (V) | 41.6V |
| Standard charge/discharge Current (A) | 140A @25±2℃ (Recommended) |
| Max Standard charge/discharge Current (A) | 200A @25±2℃ |
| Working Temperature | 0～50℃(Charge) -10～50℃(Discharge) |
| Weight(Kg) | 112Kg±5kg |
| Dimension(mm) | (750)×(440)×(251)mm |
| Recommended SOC Range | 15-95% |
| Communication mode | CAN (Default)or RS485 |
Suitable Inverters
| Brand | Protocol | Communication | Versions |
|---|---|---|---|
| Pylontech | CAN-Bus-Protocol-PYLON | CAN | V1.3 |
| Goodwe | Goodwe Communication Protocol | CAN | V1.5 |
| Lolis | CAN Communication Protocol | CAN | V1.0 |
| Sofar | BMS CAN BUS Protocol | CAN | V1.0 |
| SMA | FSS-ConnectingBat-TI-EN-20W | CAN | V2.0 |
| Victron | Can-Bus_Bms_Protocol | CAN | V1.0 |
| LUXPOWER | Luxpowertek Battery CAN Protocol | CAN | V1.0 |
| Studer | Technical Specification Studer BMS Protocol | CAN | V1.03 |
| TBB | TBB BMS CAN Communication V1.02 | CAN | V1.02 |
| Deye | CAN-Bus-Protocol-PYLON-V1.3 | CAN | V1.0 |
| Sorocec | 2_CAN Protocol 1.0 | CAN | V1.0 |
| MEGAREVO | Hybrid Inverter_5K_BMS Protocol V1.01 | CAN | V1.01 |
| Amensolar | CAN-Bus-Protocol-PYLON | CAN | V1.0 |
| MUST | PV1800F-CAN Communication Protocol | CAN | V1.04.04 |
| AFORE | Luxpowertek Battery CAN Protocol | CAN | V1.0 |
| Pylontech | RS485-Protocol-Pylon-Low-Voltage | 485 | V3.5 |
| Voltronic Power | Voltronic Inverter And BMS 485 Communication Protocol | 485 | V1.0 |
| SRNE | PACE BMS Modbus Protocol For RS485 | 485 | V1.3 |
| Deye | RS485-Protocol-Pylon-Low-Voltage | 485 | V1.0 |
Frequently Asked Questions
What is the rated capacity of the MELE-S-280?
280Ah at 48V, delivering 14.3 kWh of rated energy.
How many units can be connected in parallel?
Up to 32 packs in parallel via the smart BMS.
Which inverters are compatible?
CAN and RS485 x2 with Pylontech, Goodwe, Deye, Victron, SMA and more.
What is the cycle life?
At least 80% capacity after 6000 cycles.
What certifications are available?
TUV, CE, CQC, ROHS, MSDS and UN38.3 documentation.
