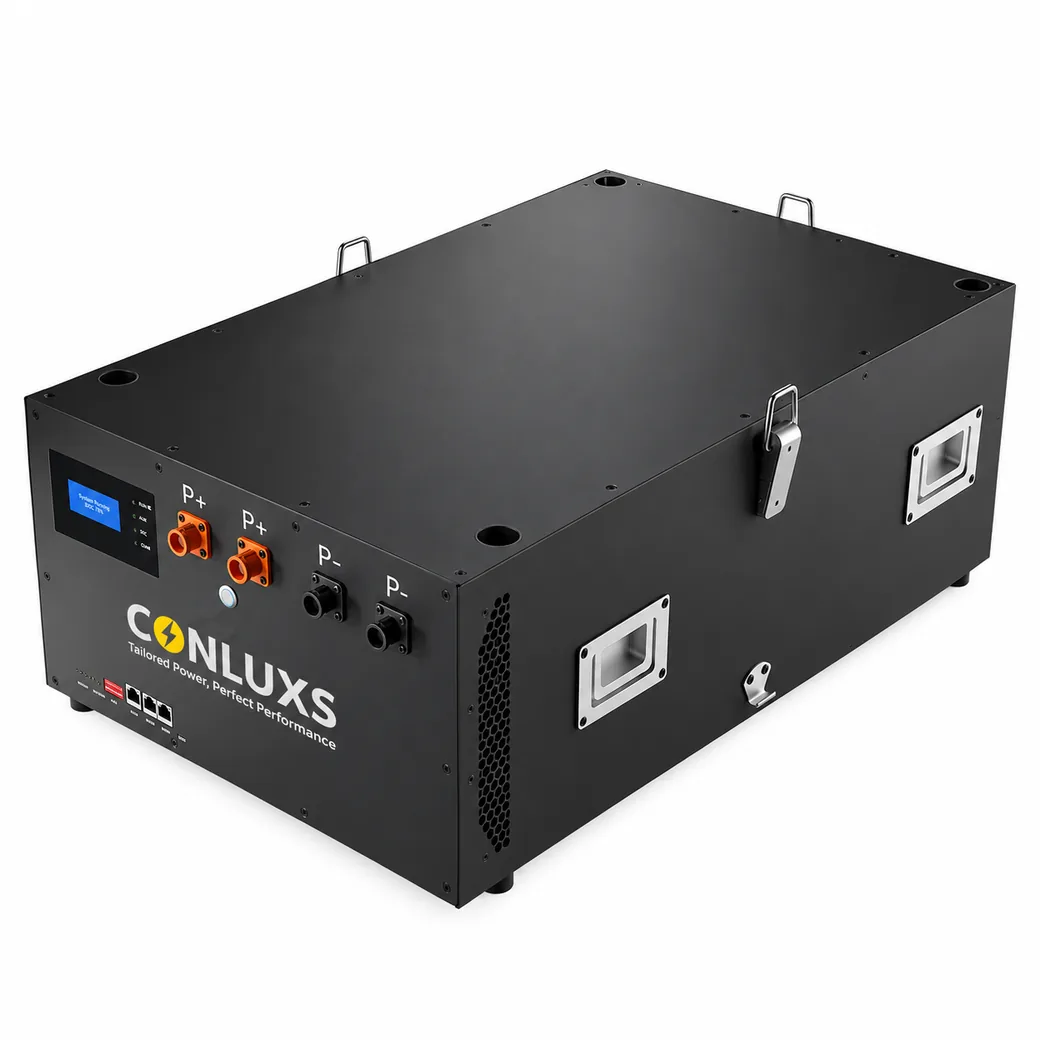

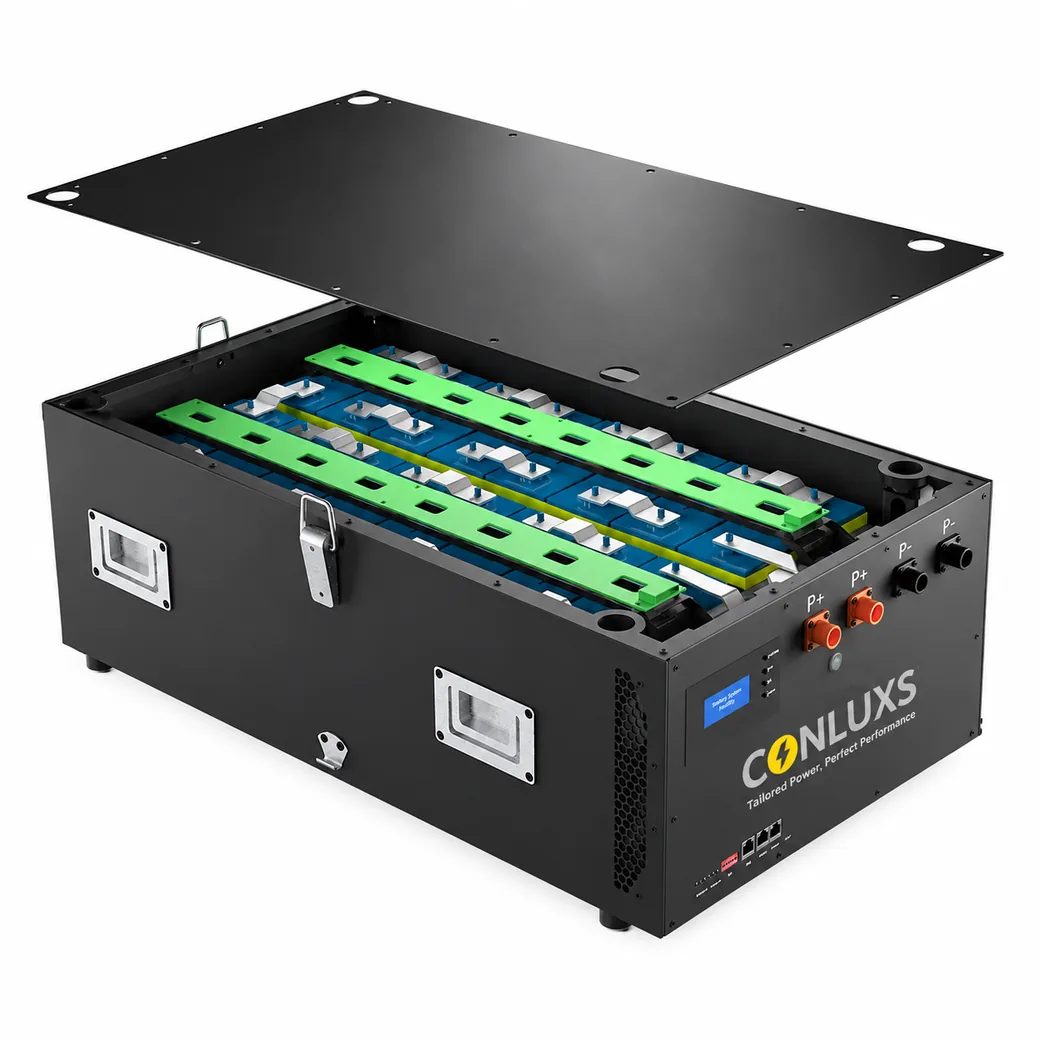

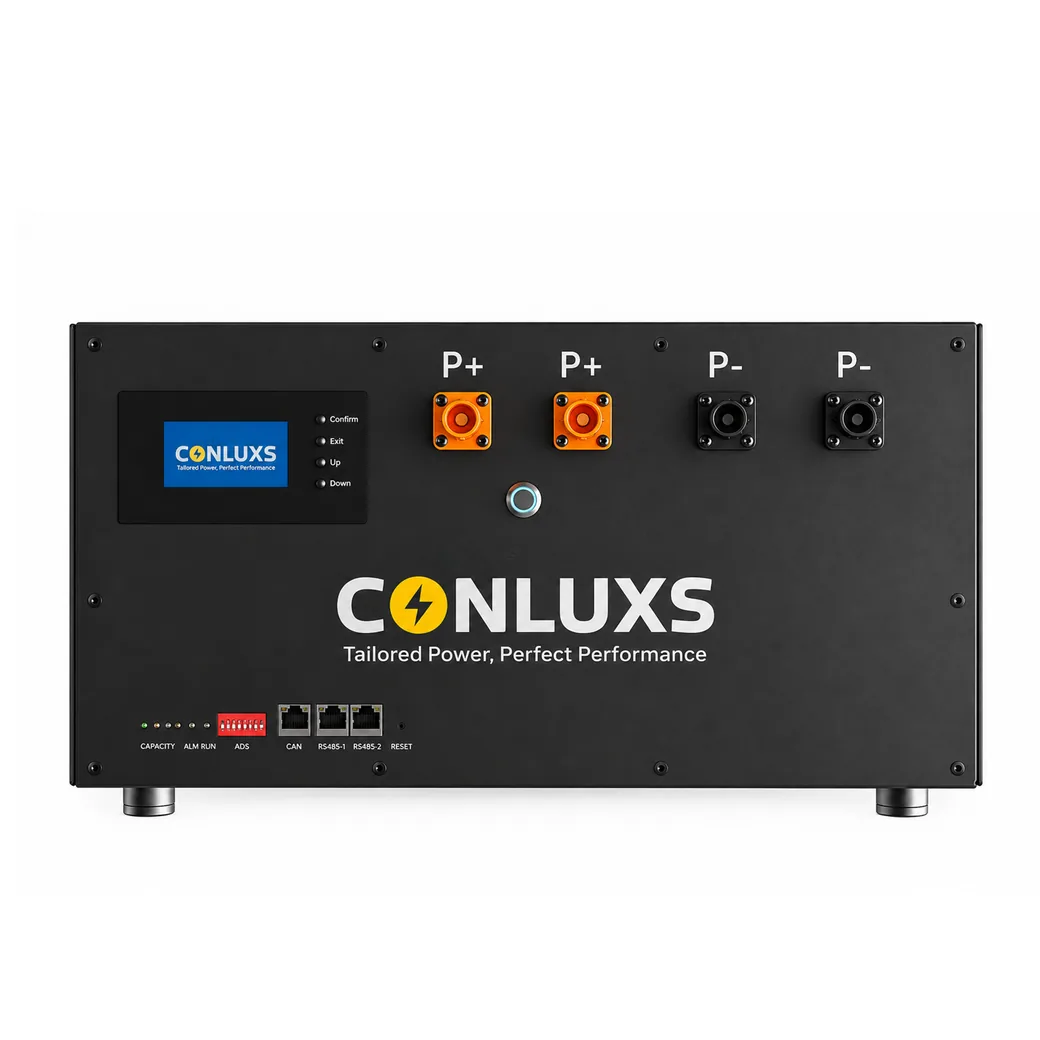

MELE-S 14.34 kWh LiFePO4 Battery
51.2V high-capacity solar storage battery for residential and small commercial systems.
CONLUXS MELE-S · 51.2V · 280Ah · 14.34 kWh
Product Overview
The MELE-S-280 51.2V battery is a 14.34 kWh storage pack built on 280Ah LiFePO4 cells. The 1P16S configuration provides a nominal 51.2V platform that pairs directly with standard low-voltage hybrid inverters. Designed for stability and ease of installation, the pack features low internal resistance and steady discharge performance. Multiple security protections minimise installation time and operating cost while maintaining safe, long-duration cycling for residential solar.
Key Performance Specifications
Key Technical Highlights
- High Capacity: 280Ah cells deliver 14.34 kWh of rated energy.
- Low Internal Resistance: Low IR with high CR for steady discharge.
- Ultra-Safe Design: Explosion-proof, no leakage, built-in protections.
- Easy to Install: Reduces installation time and cost.
- Multiple Protections: Several security protection layers throughout the pack.
- CAN / RS485: Compatible with mainstream low-voltage inverters.
What Is It
MELE-S-280 is a 14.34 kWh 51.2V LiFePO4 battery with low internal resistance, multiple safety protections and CAN/RS485 communication.
Key Applications
Residential self-consumption, solar backup, small commercial storage, hybrid solar systems.
Engineering Advantages
| Advantage | Description |
|---|---|
| High Capacity Cells | 280Ah cells deliver 14.34 kWh at 51.2V. |
| Stable Discharge | Low internal resistance and high current rate for steady output. |
| Ultra-Safe Operation | Explosion-proof build with no leakage and multiple protection layers. |
| Easy Installation | Streamlined design reduces install time and cost. |
| Wide Compatibility | CAN and RS485 communication with mainstream inverters. |
Technical Specifications
| Item | Specifications |
|---|---|
| Model | MELE-S-280 |
| Nominal Voltage | 51.2V |
| Battery Size (L*W*H) | 750*440*251mm |
| Max Charge Current | 200A |
| Max Discharge Current | 200A |
| Weight | 112 kg |
| Cycle Time | >6000 cycles |
| Communication Protocol | CAN / RS485×2 |
Suitable Inverters
| Brand | Protocol | Communication | Versions |
|---|---|---|---|
| Pylontech | CAN-Bus-Protocol-PYLON | CAN | V1.3 |
| Goodwe | Goodwe Communication Protocol | CAN | V1.5 |
| Lolis | CAN Communication Protocol | CAN | V1.0 |
| Sofar | BMS CAN BUS Protocol | CAN | V1.0 |
| SMA | FSS-ConnectingBat-TI-EN-20W | CAN | V2.0 |
| Victron | Can-Bus_Bms_Protocol | CAN | V1.0 |
| LUXPOWER | Luxpowertek Battery CAN Protocol | CAN | V1.0 |
| Studer | Technical Specification Studer BMS Protocol | CAN | V1.03 |
| TBB | TBB BMS CAN Communication V1.02 | CAN | V1.02 |
| Deye | CAN-Bus-Protocol-PYLON-V1.3 | CAN | V1.0 |
| Sorocec | 2_CAN Protocol 1.0 | CAN | V1.0 |
| MEGAREVO | Hybrid Inverter_5K_BMS Protocol V1.01 | CAN | V1.01 |
| Amensolar | CAN-Bus-Protocol-PYLON | CAN | V1.0 |
| MUST | PV1800F-CAN Communication Protocol | CAN | V1.04.04 |
| AFORE | Luxpowertek Battery CAN Protocol | CAN | V1.0 |
| Pylontech | RS485-Protocol-Pylon-Low-Voltage | 485 | V3.5 |
| Voltronic Power | Voltronic Inverter And BMS 485 Communication Protocol | 485 | V1.0 |
| SRNE | PACE BMS Modbus Protocol For RS485 | 485 | V1.3 |
| Deye | RS485-Protocol-Pylon-Low-Voltage | 485 | V1.0 |
Frequently Asked Questions
What is the rated capacity of the MELE-S-280 51.2V?
280Ah at 51.2V, delivering 14.34 kWh of rated energy.
What safety features are included?
Explosion-proof, no-leakage construction with multiple protection layers.
Which inverters are compatible?
CAN and RS485 communication with mainstream low-voltage inverters.
What is the cycle life?
6000+ cycles with capacity retention.
What certifications are available?
CE, ROHS, MSDS and UN38.3 documentation.
