Outdoor Integrated Enclosure
IP55 All-in-One Outdoor Cabinet for Telecom Base Station Equipment
Outdoor Integrated Enclosure (IP55)

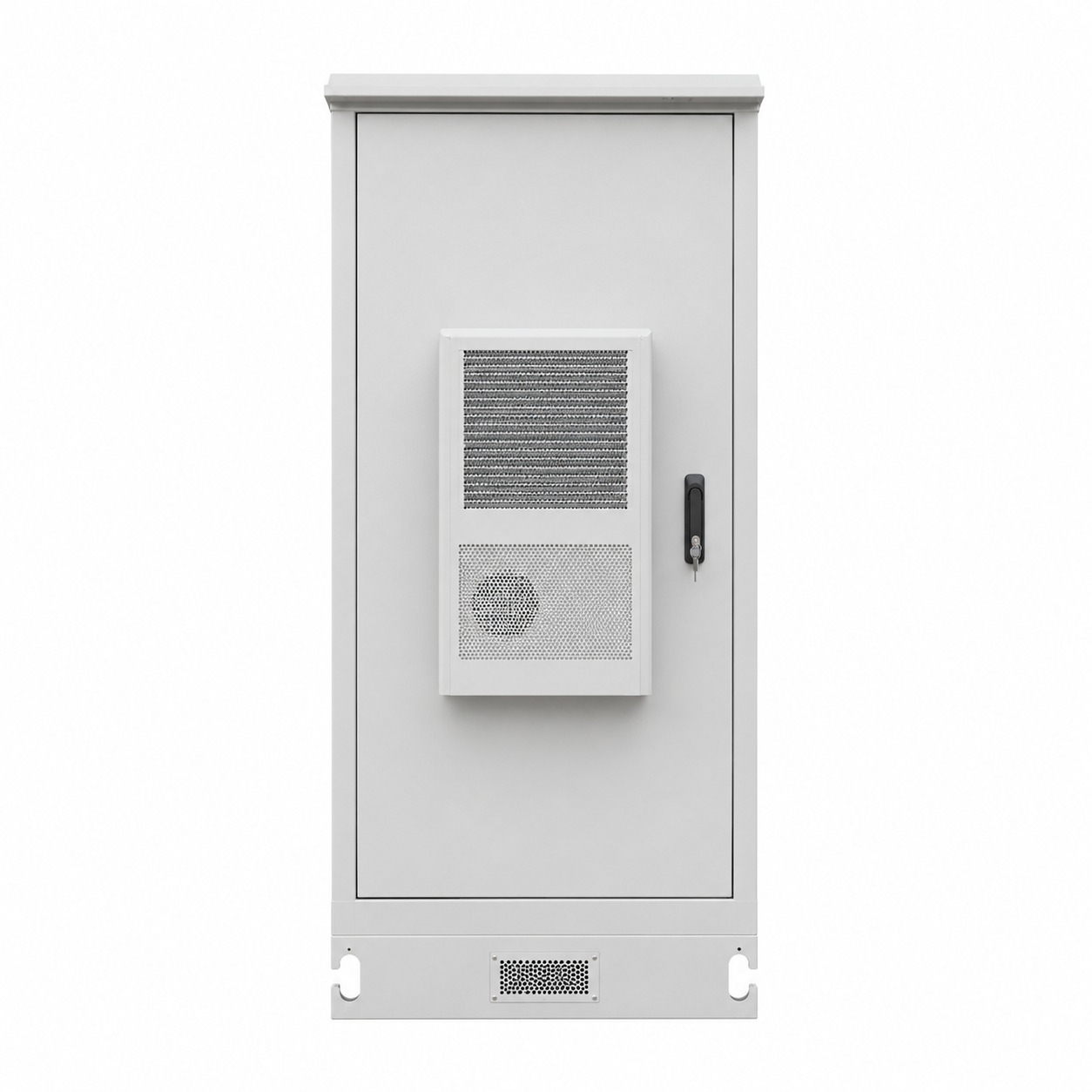

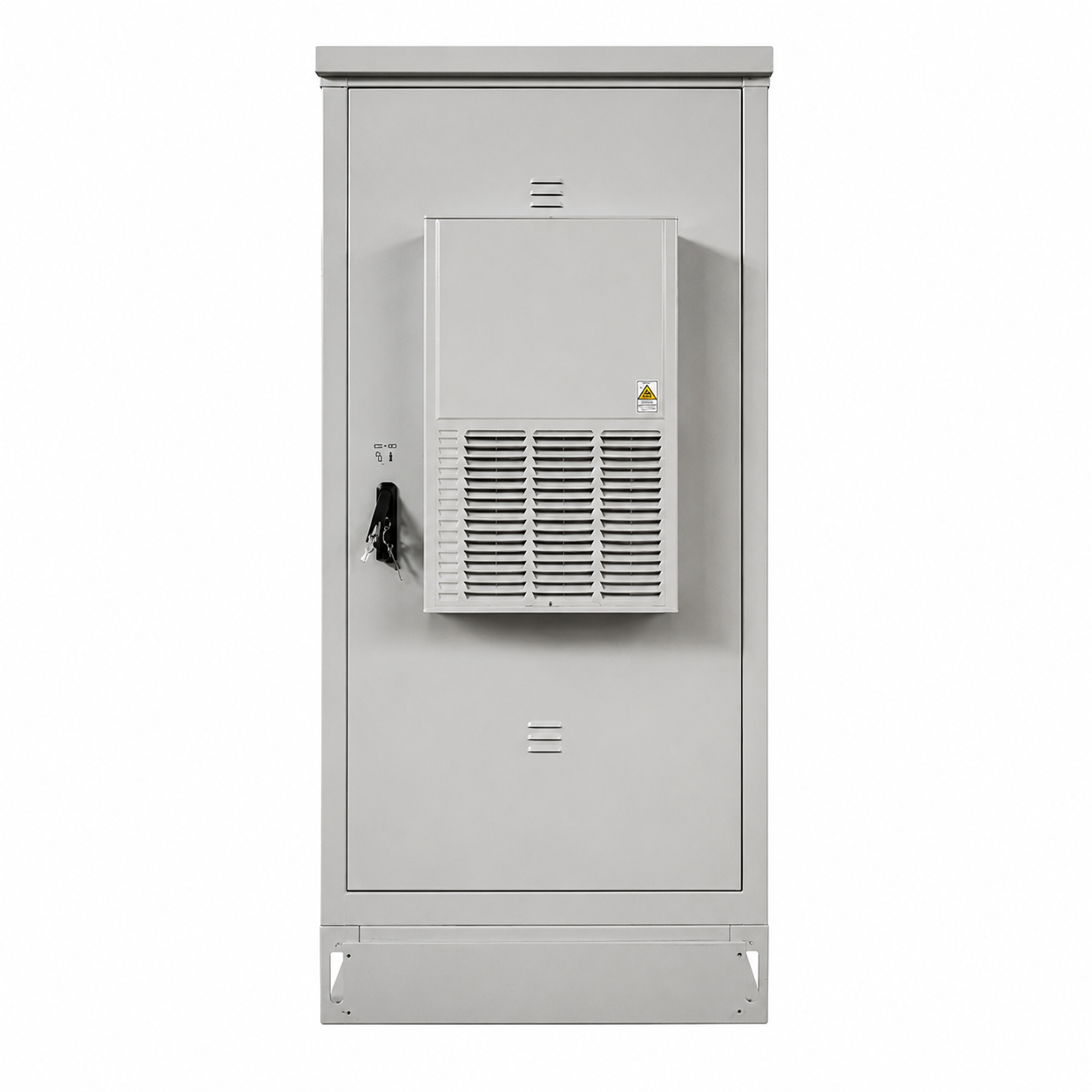

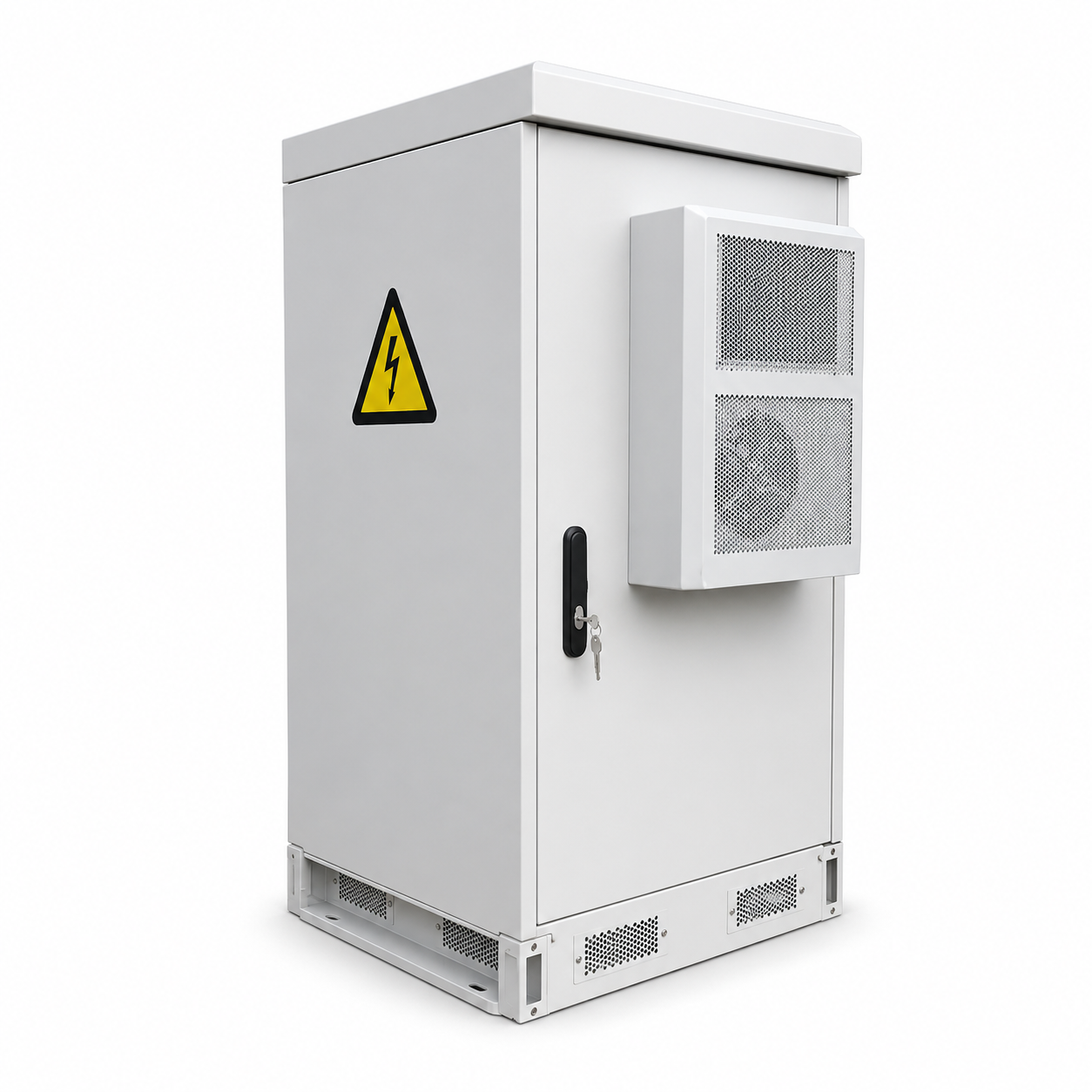

Conluxs Outdoor Integrated Enclosure · IP55 · 2100×900×900mm
Product Overview
The Conluxs Outdoor Integrated Enclosure is a rugged, all-in-one cabinet solution for housing telecom base station equipment, battery backup systems, and power distribution units in outdoor environments. Rated IP55 with dimensions of 2100×900×900mm, it features integrated thermal management, intelligent access control, and comprehensive environmental monitoring.
Key Technical Features
- IP55 Protection: Superior ingress protection against dust and water jets for reliable outdoor operation year-round.
- Thermal Management: Integrated heat exchanger or air conditioner options with intelligent temperature-based control.
- Equipment Bay Layout: Segregated 19-inch rack space for active equipment, battery compartment, and distribution section.
- Smart Access Control: Electronic lock with RFID/code access, door status sensor, and remote unlock capability.
What Is It
Outdoor Integrated Enclosure — an IP55 all-in-one outdoor cabinet for housing telecom base station equipment, battery backup, and power distribution.
Key Applications
Telecom base station equipment, battery backup systems, and power distribution units in outdoor environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Dimensions (WxDxH) | 900 x 900 x 2100 mm |
| Protection Rating | IP55 |
| Material | Galvanized Steel + Powder Coat |
| Thermal Solution | Heat Exchanger / AC (Optional) |
| Rack Space | 42U / Custom Configurable |
| Battery Compartment | Up to 4x 48V 100Ah Packs |
| Access Control | RFID / Code / Remote Open |
Frequently Asked Questions
What is the protection rating?
IP55, providing protection against dust and water jets.
What are the dimensions?
900 x 900 x 2100 mm.
What access control does it support?
Electronic lock with RFID/code access, door status sensor, and remote unlock.
