POLO-L 10 kWh Wall Mounted Battery
High-capacity 10 kWh wall-mounted battery with IP65 rating for home energy independence.
CONLUXS POLO-L · 51.2V · 208Ah · 10.65 kWh
Product Overview

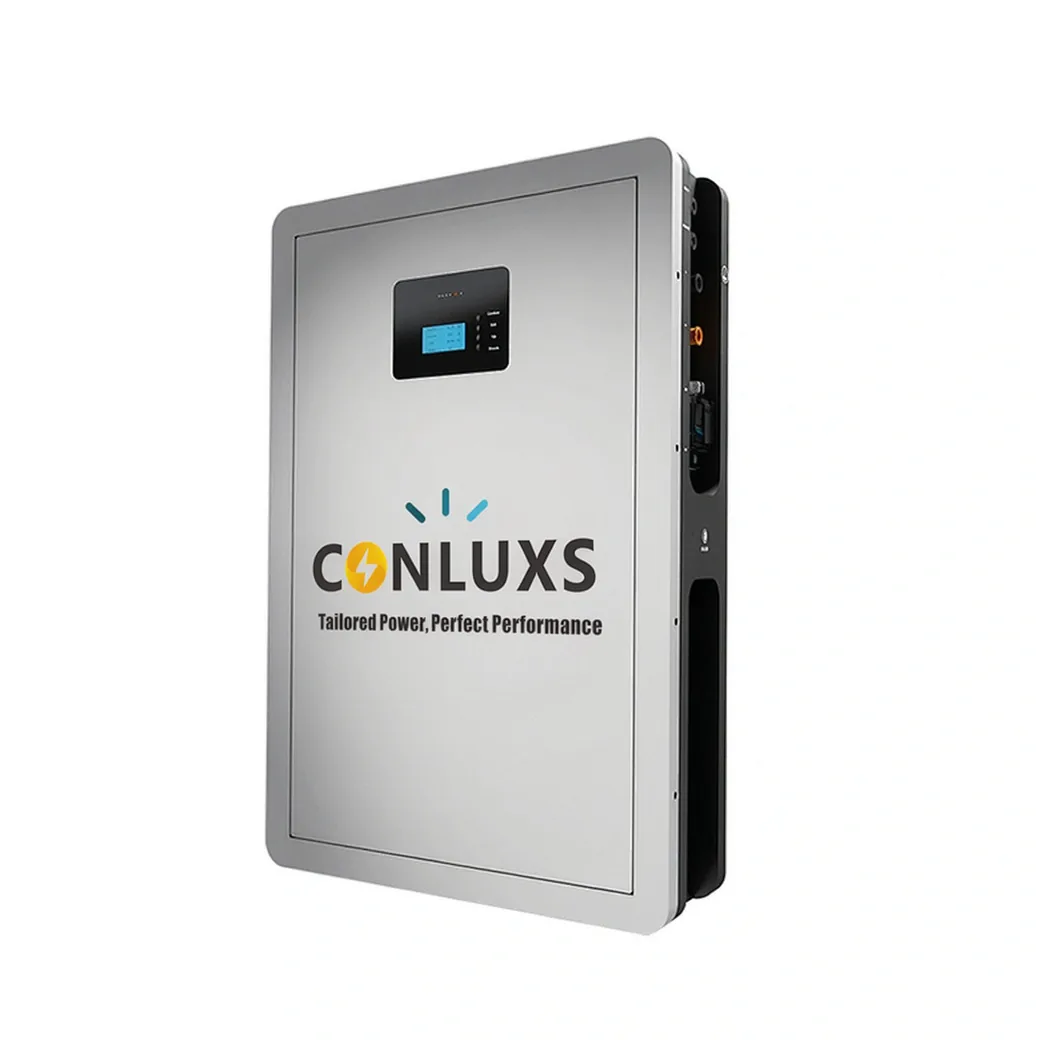

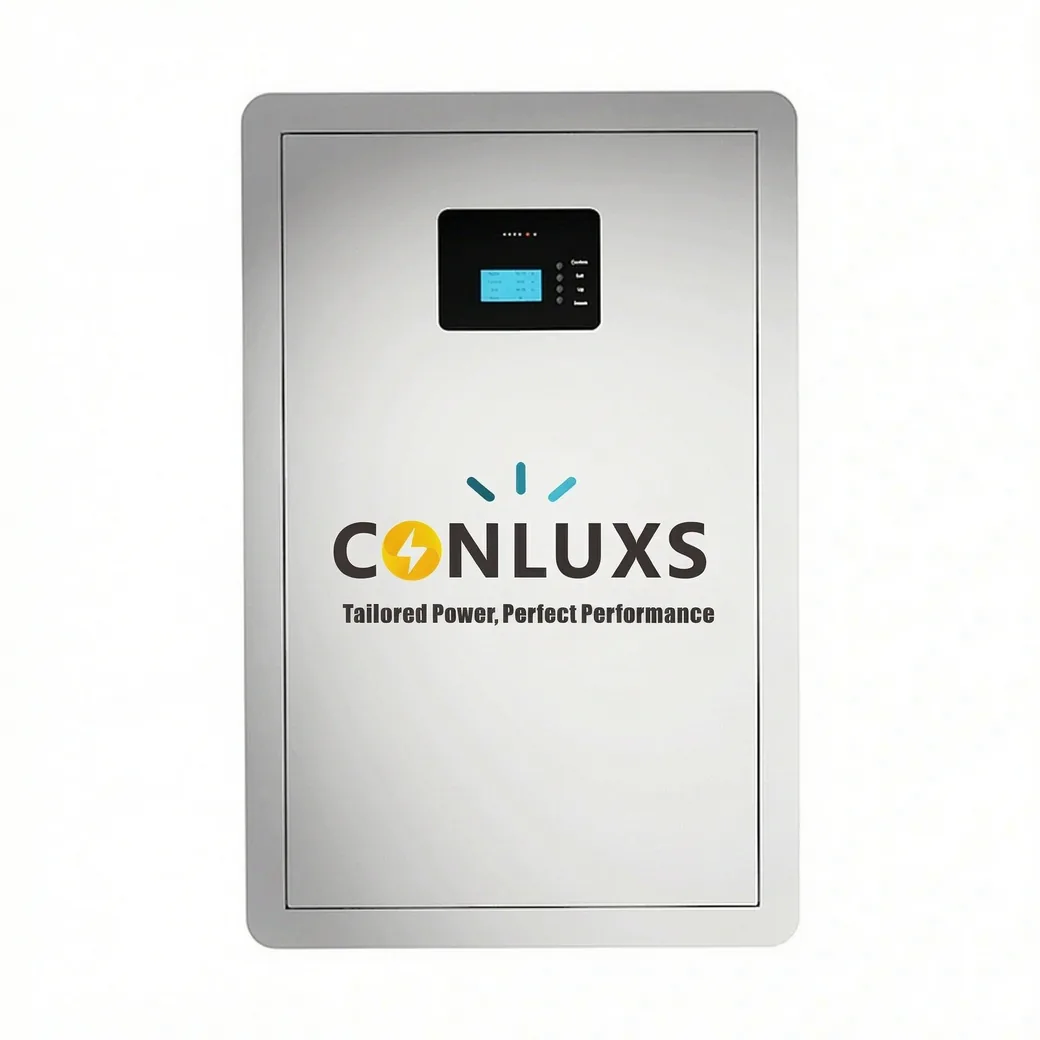

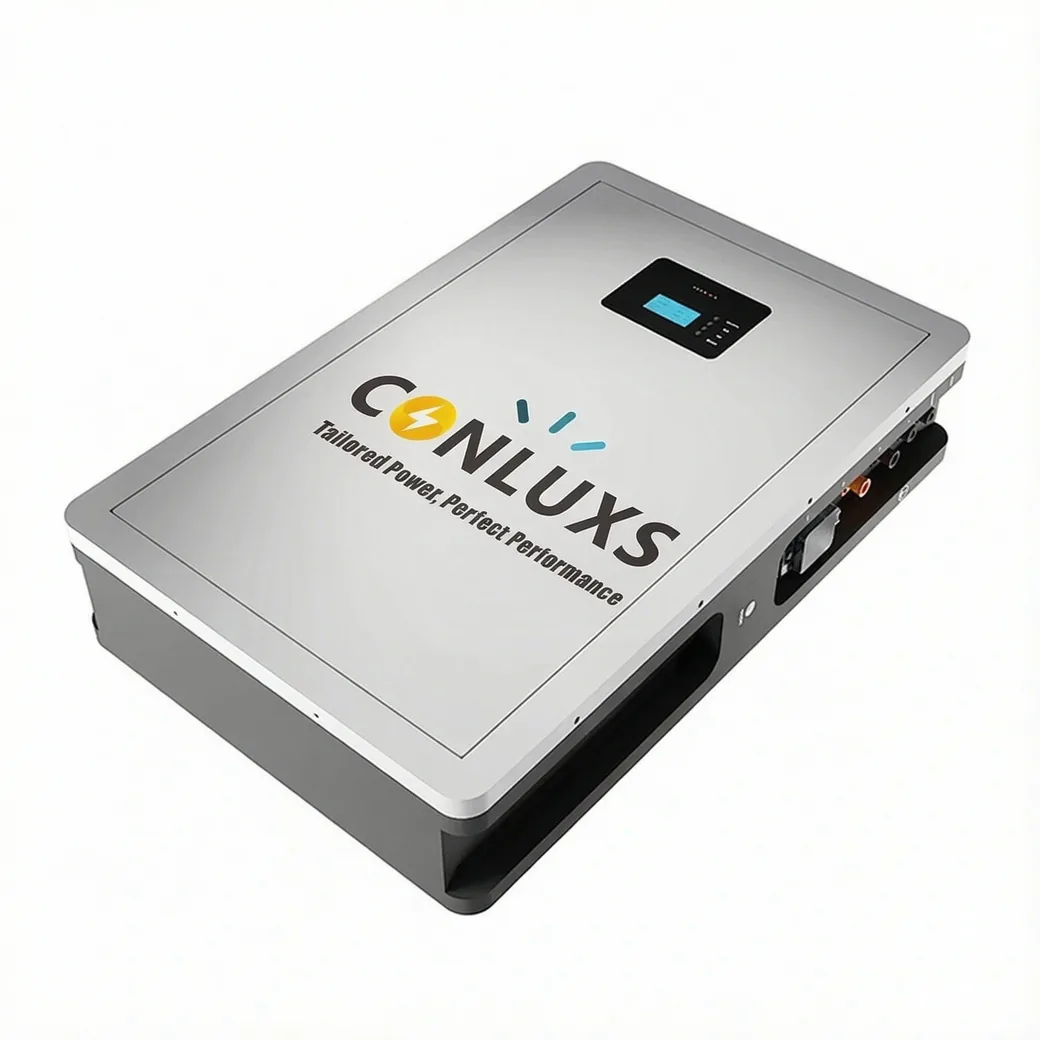

The POLO-L-104 is a 10 kWh wall-mounted battery designed to enhance home energy independence. With an IP65 rating, it can be installed indoors and in protected outdoor locations while maintaining reliable operation. The battery supports custom energy configurations to match specific household needs. A smart BMS manages cell protection and balancing, while CAN and RS485 communication connects to mainstream low-voltage hybrid inverters for daily cycling.
Key Performance Specifications
Key Technical Highlights
- IP65 Rating: Suitable for indoors and protected outdoor locations.
- 10 kWh Capacity: 208Ah cells deliver 10.65 kWh of rated energy.
- Custom Options: Energy configurations tailored to customer needs.
- Smart BMS: Protection and balancing across daily cycling.
- Wall Mounted: Space-efficient installation.
- CAN / RS485: Wide inverter compatibility.
What Is It
POLO-L-104 is a 10 kWh IP65-rated wall mounted 51.2V LiFePO4 battery with custom options and CAN/RS485 communication.
Key Applications
Residential solar self-consumption, home backup, protected outdoor storage.
Engineering Advantages
| Advantage | Description |
|---|---|
| IP65 Enclosure | Dust-tight and water-resistant for broader placement options. |
| High Capacity | 208Ah cells deliver 10.65 kWh of rated energy. |
| Custom Configurations | Tailored energy sizing to match household needs. |
| Smart BMS | Protection, balancing and monitoring throughout operation. |
| Wide Compatibility | CAN and RS485 cover mainstream low-voltage inverters. |
Technical Specifications
| Item | Specifications |
|---|---|
| Rated energy(kWh) | 10.65KWh |
| Configuration | 2P16S |
| Nominal Voltage(V) | 51.2V |
| Nominal Capacity(Ah) | 208Ah |
| Working Voltage(V) | 43.2V~57.6V |
| Rated charge/discharge / Current(A) | 100A @25±2℃ |
| Maximum charge/discharge current | 100A@25±2℃ |
| Working Temperature | 0～40℃(Charge) -20～40℃(Discharge) |
| Weight(Kg) | 87Kg±5kg |
| Dimension(mm) | 850×550×175mm |
| Cycle life | 4800 cycles @25℃ 50A charge and discharge current 80% standard capacity 80% DOD |
| Communication mode | CAN&RS485 |
| IP grade | IP65 |
Suitable Inverters
| Brand | Protocol | Communication | Versions |
|---|---|---|---|
| Pylontech | CAN-Bus-Protocol-PYLON | CAN | V1.3 |
| Goodwe | Goodwe Communication Protocol | CAN | V1.5 |
| Lolis | CAN Communication Protocol | CAN | V1.0 |
| Sofar | BMS CAN BUS Protocol | CAN | V1.0 |
| SMA | FSS-ConnectingBat-TI-EN-20W | CAN | V2.0 |
| Victron | Can-Bus_Bms_Protocol | CAN | V1.0 |
| LUXPOWER | Luxpowertek Battery CAN Protocol | CAN | V1.0 |
| Studer | Technical Specification Studer BMS Protocol | CAN | V1.03 |
| TBB | TBB BMS CAN Communication V1.02 | CAN | V1.02 |
| Deye | CAN-Bus-Protocol-PYLON-V1.3 | CAN | V1.0 |
| Sorocec | 2_CAN Protocol 1.0 | CAN | V1.0 |
| MEGAREVO | Hybrid Inverter_5K_BMS Protocol V1.01 | CAN | V1.01 |
| Amensolar | CAN-Bus-Protocol-PYLON | CAN | V1.0 |
| MUST | PV1800F-CAN Communication Protocol | CAN | V1.04.04 |
| AFORE | Luxpowertek Battery CAN Protocol | CAN | V1.0 |
| Pylontech | RS485-Protocol-Pylon-Low-Voltage | 485 | V3.5 |
| Voltronic Power | Voltronic Inverter And BMS 485 Communication Protocol | 485 | V1.0 |
| SRNE | PACE BMS Modbus Protocol For RS485 | 485 | V1.3 |
| Deye | RS485-Protocol-Pylon-Low-Voltage | 485 | V1.0 |
Frequently Asked Questions
What is the rated energy of the POLO-L-104?
10.65 kWh from 208Ah at 51.2V.
Can it be installed outdoors?
The IP65 enclosure suits protected outdoor locations.
Are custom configurations available?
Yes, energy configurations can be tailored to customer needs.
Which inverters are compatible?
CAN and RS485 communication with mainstream low-voltage inverters.
What is the cycle life?
6000+ cycles with capacity retention.
