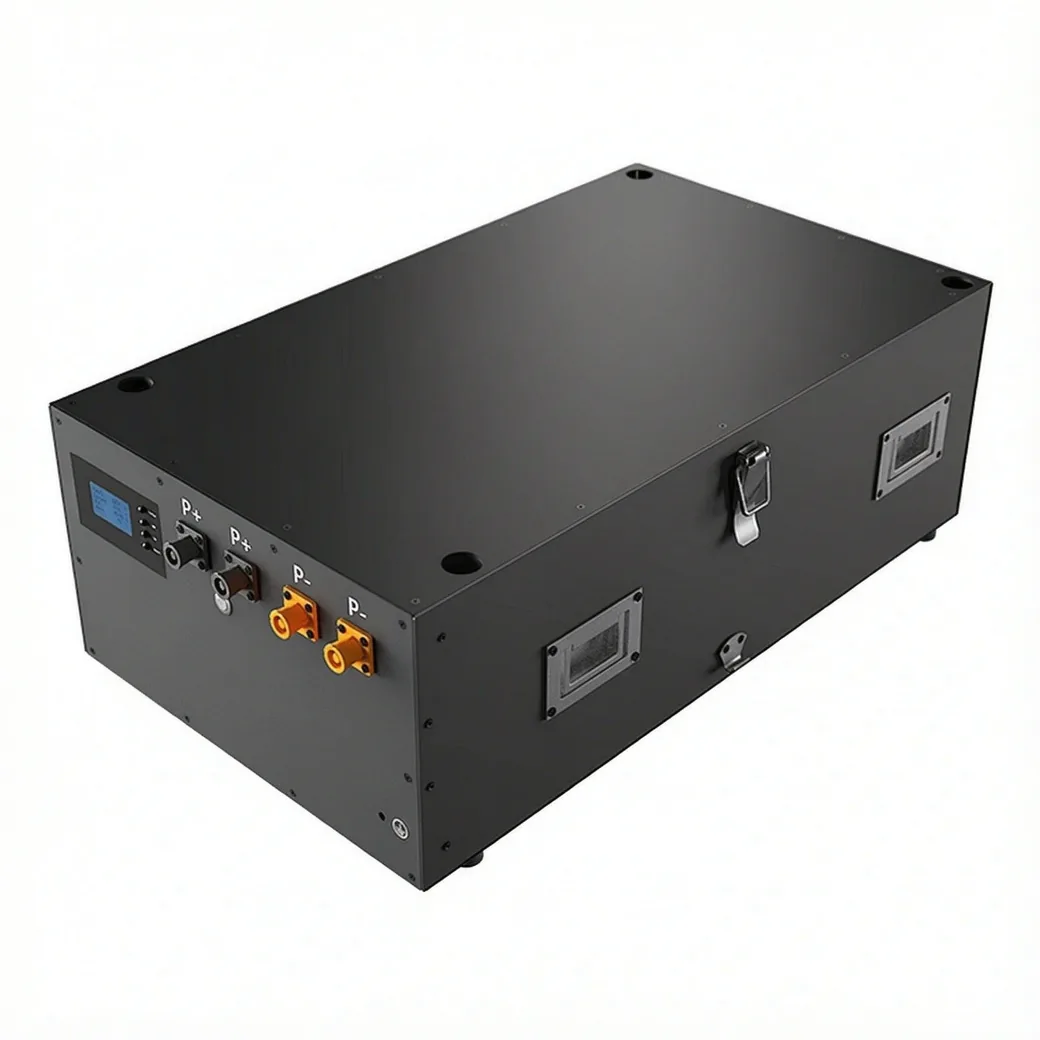

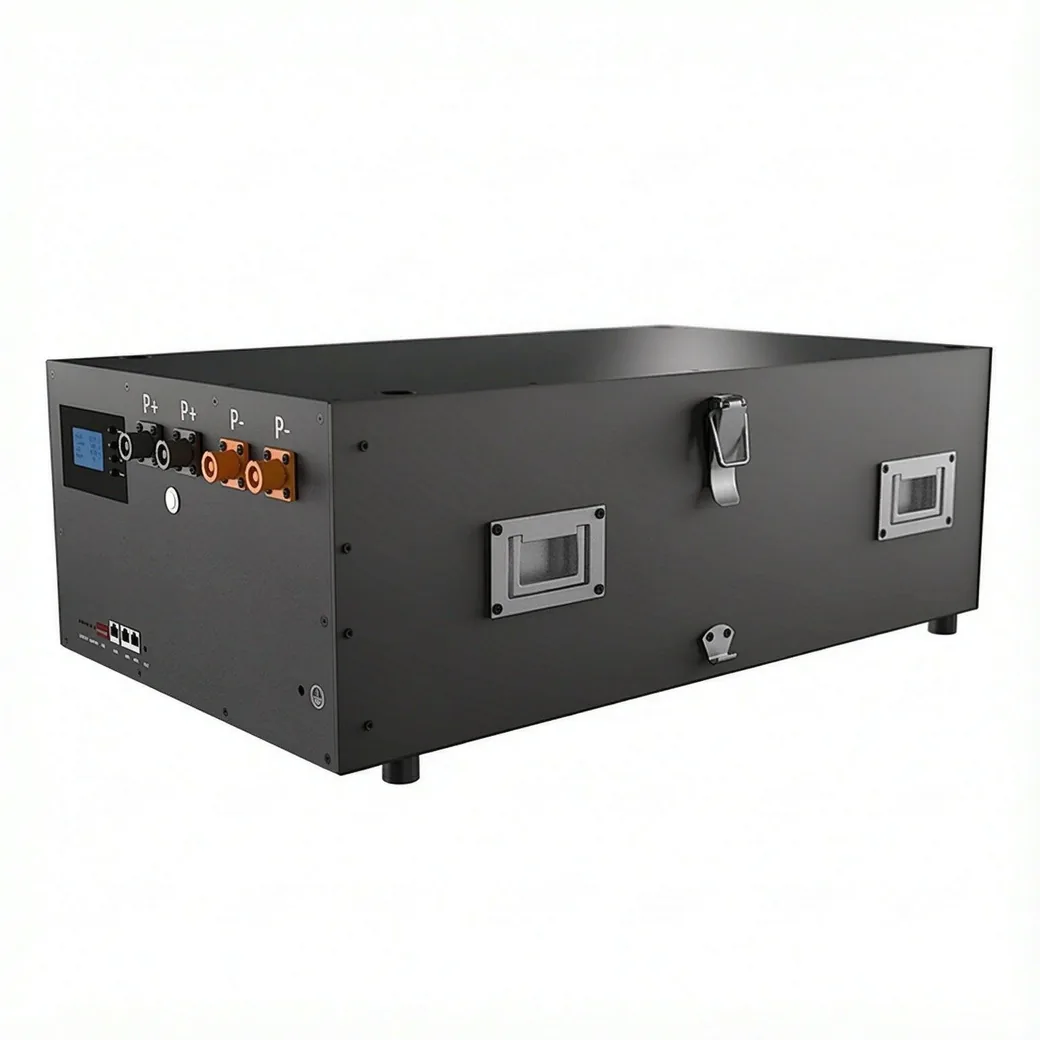

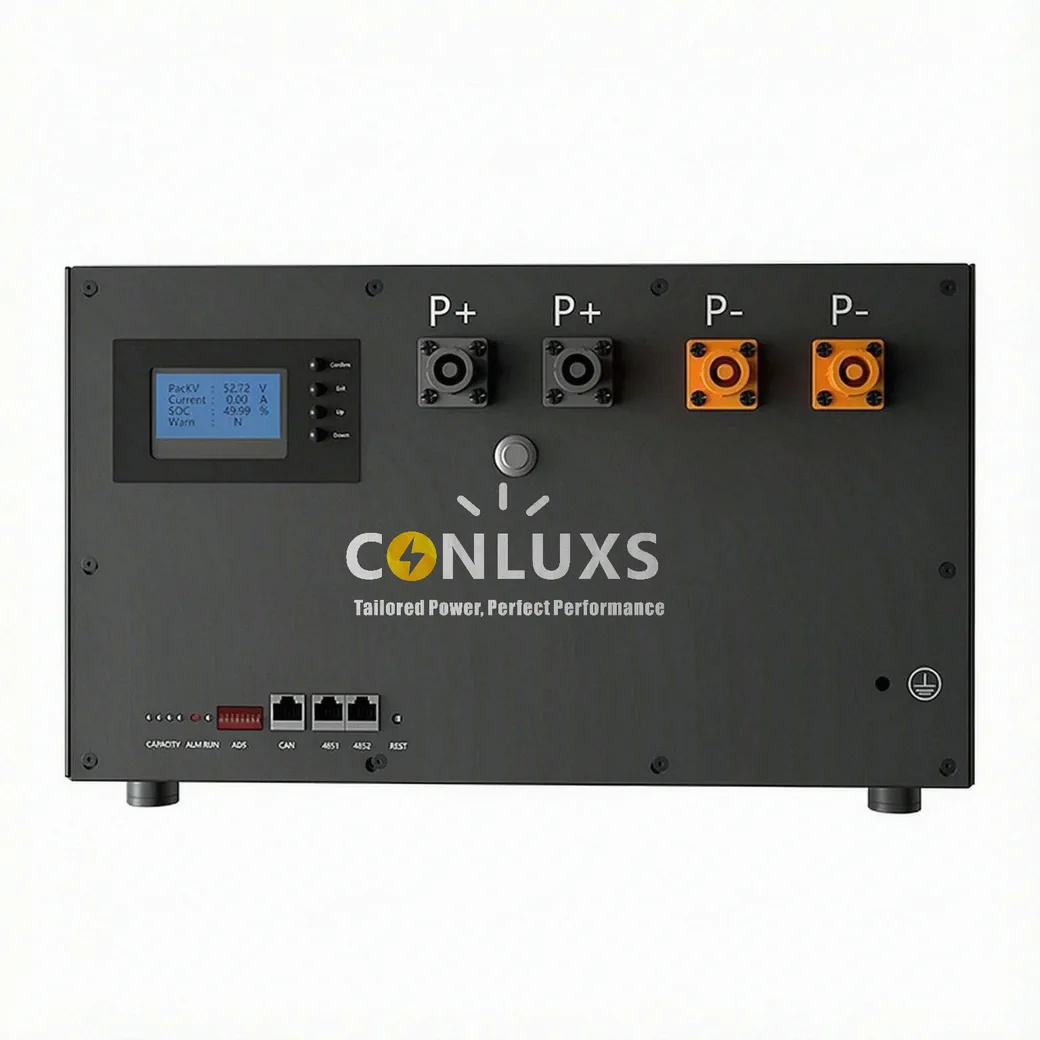

PROX-M 16 kWh Home Energy Storage Battery
Pre-integrated 16 kWh plug-and-play residential storage battery with 314Ah LiFePO4 cells.
CONLUXS PROX-M · 51.2V · 314Ah · 16 kWh · Plug & Play
Product Overview
The PROX-M-280 16 kWh home storage battery is a factory-assembled, plug-and-play solution built on 314Ah LiFePO4 cells at 51.2V. It is designed for installers who need a battery that powers on quickly with minimal site work. The pack comes pre-integrated with the required power and communication interfaces, reducing commissioning time. A smart BMS manages cell balancing and protection, while CAN and RS485 interfaces connect to mainstream low-voltage hybrid inverters.
Key Performance Specifications
Rated Energy
16.07 kWh
Nominal Voltage
51.2V
Rated Capacity
314Ah
Cell Config
1P16S
Cycle Life
6000+ cycles
Communication
CAN / RS485
Installation
Plug-and-play, pre-integrated
Working Voltage
42V ~ 58.4V
Key Technical Highlights
- Pre-Integrated: Factory-assembled power and communication interfaces.
- Plug-and-Play: Power on quickly with minimal site work.
- 314Ah Cells: High-capacity cells deliver 16 kWh of rated energy.
- Smart BMS: Cell balancing, protection and system monitoring.
- CAN / RS485: Compatible with mainstream low-voltage inverters.
- Automotive-Grade Cells: Stable cycling from automotive-grade LiFePO4.
What Is It
PROX-M-280 is a 16 kWh pre-integrated 51.2V plug-and-play home storage battery with 314Ah cells, smart BMS and CAN/RS485 communication.
Key Applications
Residential solar self-consumption, plug-and-play home backup, off-grid and hybrid systems.
Engineering Data
Engineering Advantages
| Advantage | Description |
|---|---|
| Pre-Integrated Design | Factory-assembled interfaces minimise on-site wiring and risk. |
| Plug-and-Play | Simplified commissioning shortens installation time. |
| High Capacity Cells | 314Ah LiFePO4 cells deliver 16.07 kWh of rated energy. |
| Smart BMS | Integrated cell balancing, protection and monitoring. |
| Wide Compatibility | CAN and RS485 cover mainstream low-voltage inverters. |
Datasheet
Technical Specifications
| Item | Specifications |
|---|---|
| Nominal Voltage(V) | 51.2V |
| Nominal Capacity(Ah) | 314Ah @0.5C discharge current 25±2℃ |
| Nominal Power(kWh) | 16KWh |
| Dimension(mm) | 750*437*270mm |
| Weight(kg) | 118.4±5KG |
| Discharge Cut-off Voltage (V) | 40V |
| Charge Voltage (V) | 57.6V |
| Continuous Charge/Discharge Current (A) | 157A @25±2℃ (Recommended) |
| Max Standard charge/discharge Current (A) | 200A @25±2℃ |
| Standard charge/discharge Current (A) | 157A @25±2℃ (Recommended) |
| Cycle Life | 8000 cycles, 70%SOH@25℃ |
| Working Temperature | 0～50℃(Charge), -10～50℃(Discharge), -20～55℃(Storage) |
| SOC Range | 5%-100% |
| Recommended SOC Range | 15-95% |
| Communication Interface | CAN /RS485 |
| Humidity | 10% - 85% |
| IP level | IP 20 |
Compatibility
Suitable Inverters
| NO. | Brand | Protocol | Version | Communication Mode | Baud Rate | Model |
|---|---|---|---|---|---|---|
| 1 | Pylontech | CAN-Bus-protocol-PYLON | V1.3 | CAN | 500K | Applicable to all inverters using the Pylontech CAN protocol |
| 2 | Growatt-SPF | Growatt BMS CAN-Bus-protocol-low-voltage | V1.05 | CAN | 500K | SPF 5000TL HVM-WPV-P, SPF 5/6/8/10KT HVM |
| 3 | Growatt-SPH | Growatt BMS communication protocol for Growatt low voltage battery | V1.01 | CAN | 500K | Growatt SPH 5000 |
| 4 | Goodwe | Goodwe Communication Protocol | V1.5 | CAN | 500K | GW3648D-ES |
| 5 | Sofar | Sofar Solar Energy Storage Inverter BMS Universal CAN Protocol Description | V1.0 | CAN | 500K | HYD 3000-ES |
| 6 | SMA | FSS-ConnectingBat-TI-en-20W | V2.0 | CAN | 500K | SI6.0,SI8.0H-13 |
| 7 | Victron | can-bus_bms_protocol | V1.0 | CAN | 500K | MultiPLUS-II |
| 8 | Studer | Technical specification Studer BMS Protocol | V1.03 | CAN | 500K | XTM 4000-48 |
| 9 | Ginlong | CAN communication protocol | V1.0 | CAN | 500K | RHI-5K-48ES, Solis_EO_5G_ENX, S5-EO1P5K-48-P, S6-EH1P6K-L-EN |
| 10 | Sungrow | CAN-Bus-protocol-PYLON | V1.3 | CAN | 500K | SH5K-30 |
| 11 | Chint Power | Chint+Power CAN bus protocol V1.0.0 | V1.0 | CAN | 500K | CPS SCE6KTL-120/EU |
| 12 | Luxpowertek | Luxpowertek Battery CAN Protocol | V1.0 | CAN | 500K | SNA5000 WPV, LXP6K |
| 13 | Sol-Ark | Sol-Ark CAN Bus Protocol | V1.2 | CAN | 500K | Sol-Ark 8K & 12K |
| 14 | TBB | TBB Lithium Battery BMS Platform CAN Communication Protocol V1.02 | V1.02 | CAN | 500K | RiiO Sun 5KVA-S, CA3090L |
| 15 | Deye | CAN-Bus-protocol-PYLON-v1.3 | V1.0 | CAN | 500K | SUN-3 6KSG03LP1-EU |
| 16 | Sunsynk | CAN-Bus-protocol-PYLON | V1.3 | CAN | 500K | SUN-3K-SG04LP1-24-EU, SUN-3.6K-SG04LP1-EU, SUN-5K-SG04LP1-EU, SUN-6K-SG04LP1-EU |
| 17 | Livoltek | LIVOLTEK CANBUS Protocol of Low Voltage System V1.0 | V1.0 | CAN | 500K | GF1-3K48S1, GF1-5K48S1 |
| 18 | Sorotec | 2_CAN Protocol1.0 | V1.0 | CAN | 500K | REVO III 5.5-8KVA |
| 19 | megarevo | TBB Lithium Battery BMS Platform CAN Communication Protocol V1.02 | V1.01 | CAN | 500K | REVO_RKL1, R8KLNA, R5KL1 |
| 20 | Afore | Luxpowertek Battery CAN Protocol | V1.0 | CAN | 500K | AF3K-SL, AF5K-SL |
| 21 | Sacolar | Growatt BMS CAN-Bus-protocol-low-voltage | V1.05 | CAN | 500K | SP Series |
| 22 | Must | CAN-Bus-protocol-PYLON | V1.3 | CAN | 500K | PV1800 Pro Series (3/5.2KW) |
| 23 | INVT | CAN-Bus-protocol- | V1.3 | CAN | 500K | INVT iMarsXD6KTL |
| 24 | Voltronicpower | Voltronic Inverter and BMS 485 communication protocol | V1.0 | RS485 | 9600 | InfiniSolar VII, GSDHW VIV-6KW |
| 25 | SRNE | PACE BMS Modbus Protocol for RS485 | V1.3 | RS485 | 9600 | HF4850S80-H, HF4850S80-145, HF2430S60-100, HES4855S100-H |
| 26 | Growatt-SPF | SPF BMS RS485 Protocol | V2.01 | RS485 | 9600 | SPF 5000TL HVM-WPV-P, SPF 10KT HVM |
| 27 | Pylontech | RS485-protocol-pylon-low-voltage | V3.5 | RS485 | 9600 | Applicable Pylontech 485 protocol data summary inverter 3K |
| 28 | Deye | RS485-protocol-pylon-low-voltage-New Protocol Design-Deye NO.12 9600 | V1.0 | RS485 | 9600 | SUN-3 6KSG03LP1-EU, SUN-12K-SG04LP3-EU |
| 29 | EAsun | Voltronic Inverter and BMS 485 communication protocol | V1.0 | RS485 | 9600 | IGrid SV IV 5.6KW |
| 30 | MPP Solar | Voltronic Inverter and BMS 485 communication protocol | V1.0 | RS485 | 9600 | MPI WP 12_15KW |
| 31 | Bentterson | RS485-protocol-pylon-low-voltage-New Protocol Design | V1.0 | RS485 | 9600 | SAL 3.5KW-UL, SAL 5KW-EU |
| 32 | Johnray | johnray-PYLON | V1.0 | CAN | 500K | Applicable to all inverters using the Pylontech CAN protocol |
| 33 | Solax | CAN-Bus-protocol-PYLON | V1.3 | CAN | 500K | X1-HYB-LV |
| 34 | Renac | CAN-Bus-protocol-PYLON | V1.3 | CAN | 500K | Renac-ESC5000-DS |
| 35 | Hoymiles | CAN-Bus-protocol-PYLON | V1.3 | CAN | 500K | HYS-5.0LV-EUG1 |
| 36 | Each Energy | CAN-Bus-protocol-PYLON | V1.3 | CAN | 500K | PLS8K/10K/12K-M1 |
| 37 | OLU | CAN-Bus-protocol-PYLON | V1.3 | CAN | 500K | OLU5048GII |
| 38 | Hinen | CAN-Bus-protocol-PYLON | V1.3 | CAN | 500K | Hinen-SH6KL |
| 39 | Hypontech | CAN-Bus-protocol-PYLON | V1.3 | CAN | 500K | HBT 5-12K |
| 40 | Aiswei | CAN-Bus-protocol-PYLON | V1.3 | CAN | 500K | ASW5000H-S2 |
| 41 | Senegy | CAN-Bus-protocol-PYLON | V1.3 | CAN | 500K | SE 6KHB-120 |
| 42 | AOTAI | Aotai Lithium Battery BMS Platform CAN Communication Protocol V1.02 | V1.02 | CAN | 500K | AEP-3/3.6/5KS48P |
| 43 | CVTE | CAN-Bus-protocol-PYLON | V1.2 | CAN | 500K | 5KW Inverter |
| 44 | SOSEN | CAN-Bus-protocol-PYLON | V1.2 | CAN | 500K | |
| 45 | AP Systems | CAN-Bus-protocol-PYLON | V1.3 | CAN | 500K | APstorage ELS Series |
| 46 | Austa | CAN-Bus-protocol-PYLON-v1.3 | V1.3 | CAN | 500K | SUN-3 6KSG03LP1-EU, SUN-10/12K-SG04LP3-EU |
| 47 | YelonESS | CAN-Bus-protocol-PYLON-v1.3 | V1.3 | CAN | 500K | HV6K-1L single-phase low voltage |
| 48 | Xindun | SPF BMS RS485 protocol | V2.01 | RS485 | 9600 | LS-T50248-W60, HP-pro50248 |
| 49 | Techfine | RS485-protocol-pylon-low-voltage | V3.5 | RS485 | 9600 | GB5548JMH |
| 50 | CVTE | RS485-protocol-pylon-low-voltage | V3.5 | RS485 | 9600 | 5KW Inverter |
| 51 | NEXT | RS485-protocol-pylon-low-voltage | V3.5 | RS485 | 9600 | MAX PRO-7.2/8.2/10.2KW, NM-ECO-3.6/4.2/6.2KW PLUS |
| 52 | Snadi | RS485-protocol-pylon-low-voltage | V3.5 | RS485 | 9600 | NKH-6K-IP54 |
| 53 | Evada | RS485-protocol-pylon-low-voltage | V3.5 | RS485 | 9600 | EVS5048H |
| 54 | Chisage ESS | RS485-protocol-pylon-low-voltage | V3.5 | RS485 | 9600 | Mars-5/6/8/10/12/14G1-LE |
| 55 | SMK Solar | Lithium Battery Protocol GT Edition | V1.0 | RS485 | 9600 |
Frequently Asked Questions
Frequently Asked Questions
What is the rated energy of the PROX-M-280 16 kWh?
16.07 kWh from 314Ah at 51.2V.
Is the system plug-and-play?
Yes. Power and communication interfaces are pre-integrated at the factory.
Which inverters are compatible?
CAN and RS485 communication with mainstream low-voltage inverters.
What is the cycle life?
6000+ cycles with capacity retention.
What is the working voltage range?
42V ~ 58.4V.
