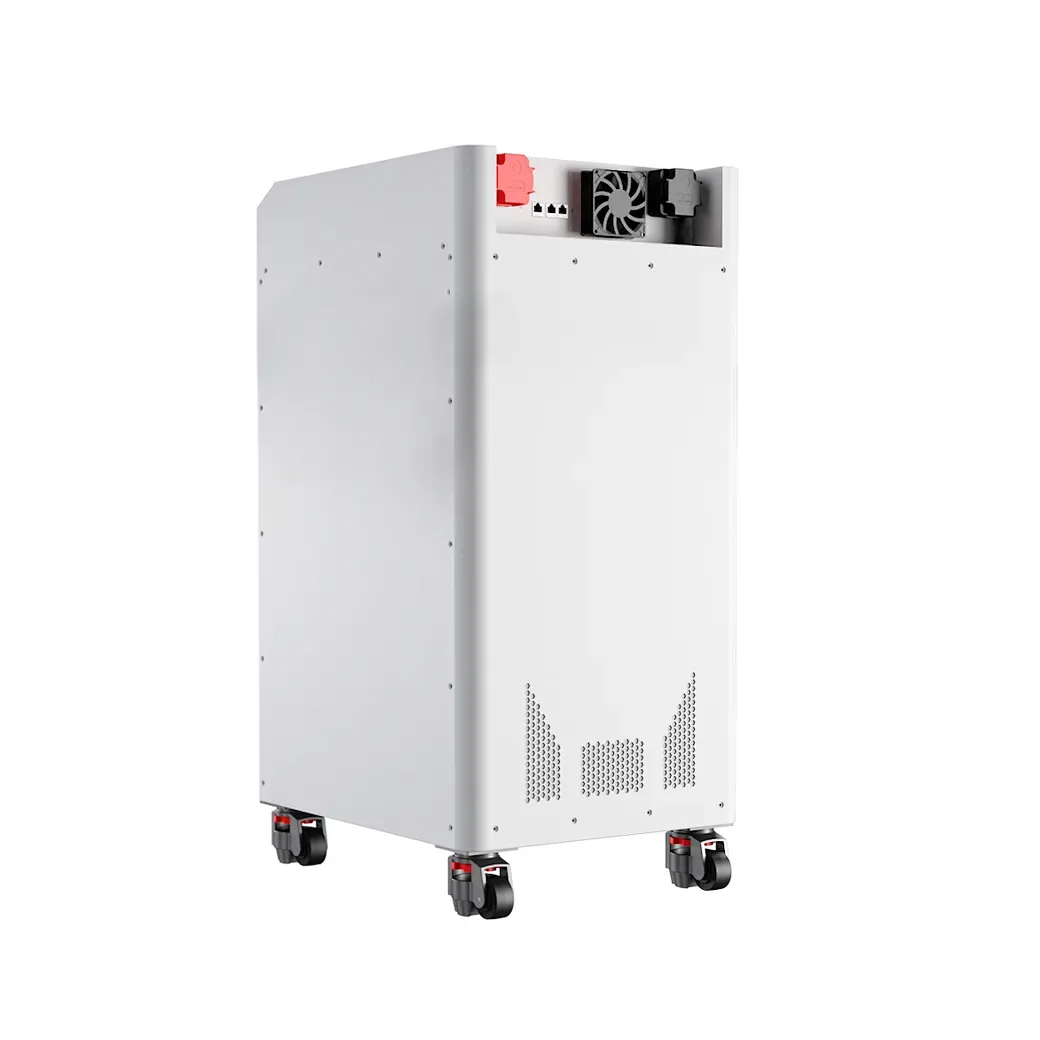

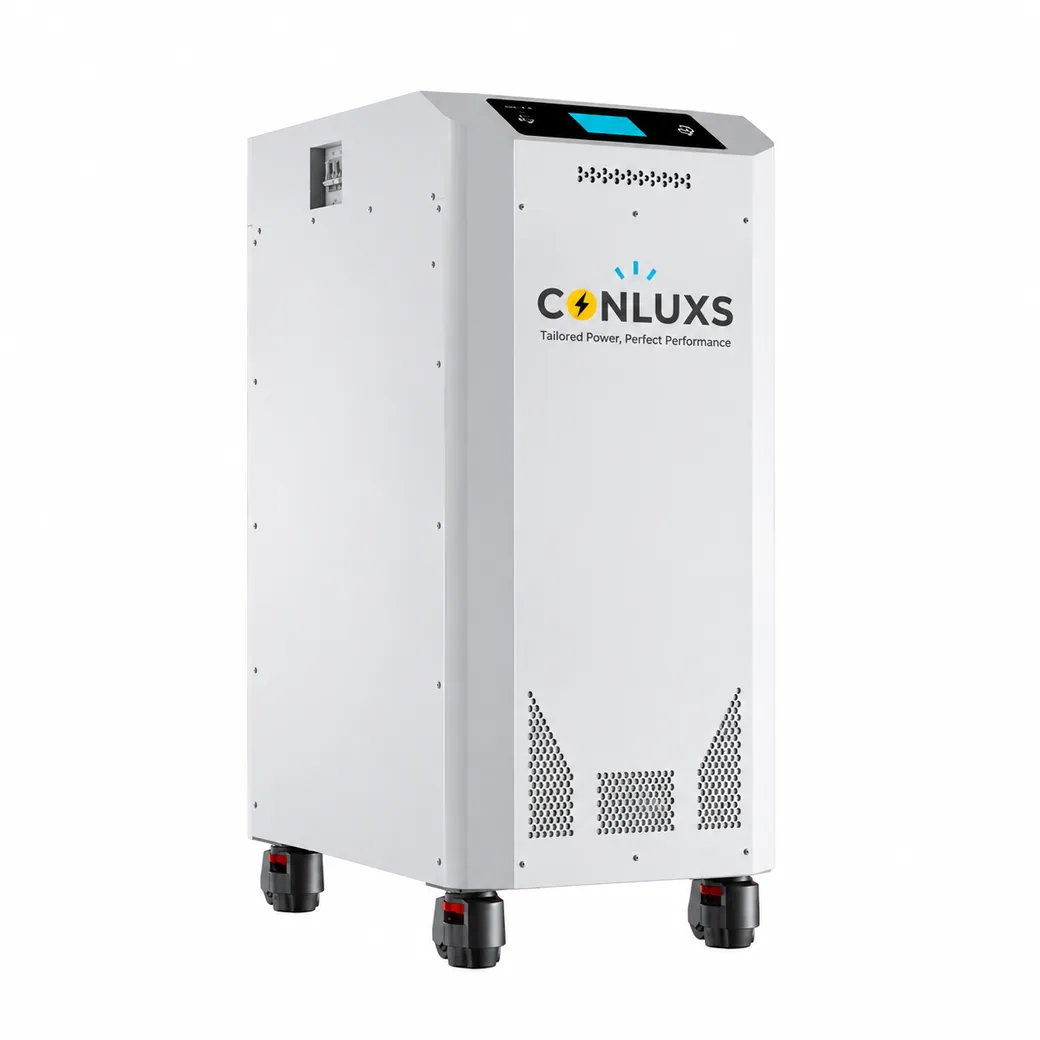

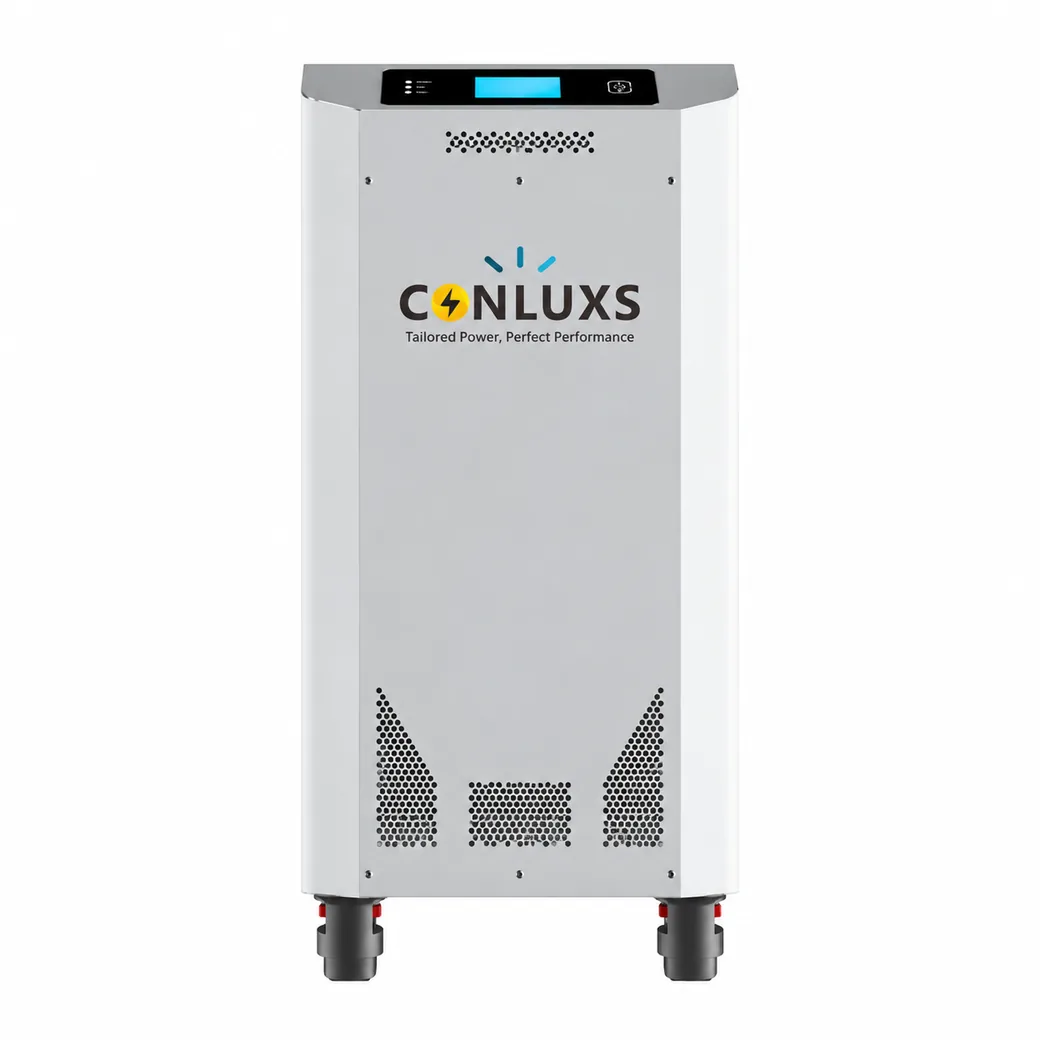

STAL-L-560 32 kWh LiFePO4 Battery
32 kWh high-capacity 51.2V solar storage battery for larger residential and small commercial systems.
CONLUXS STAL-L-560 · 51.2V · 628Ah · 32.15 kWh
Product Overview
The STAL-L-560 is a 32 kWh battery built on 628Ah LiFePO4 cells in a 2P16S configuration at 51.2V. It addresses larger household loads and small commercial storage with 32.15 kWh of rated energy in a single cabinet. The smart BMS manages high-capacity cells with comprehensive protection, while CAN and RS485 communication connects to mainstream low-voltage hybrid inverters. The design reduces the number of parallel packs required for large systems.
Key Performance Specifications
Rated Energy
32.15 kWh
Nominal Voltage
51.2V
Rated Capacity
628Ah
Cell Config
2P16S
Working Voltage
42V ~ 58.4V
Cycle Life
6000+ cycles
Communication
CAN / RS485
Installation
Cabinet / floor standing
Key Technical Highlights
- 628Ah Cells: High-capacity cells deliver 32.15 kWh.
- Fewer Parallel Packs: Cuts the number of units needed for large systems.
- Smart BMS: Cell protection and balancing throughout operation.
- CAN / RS485: Wide inverter compatibility.
- 6000+ Cycles: Long service life for daily cycling.
- Large Single Cabinet: 32 kWh in one enclosure.
What Is It
STAL-L-560 is a 32 kWh 51.2V LiFePO4 battery with 628Ah cells, smart BMS and CAN/RS485 communication for larger storage systems.
Key Applications
Larger residential storage, small commercial solar, high-capacity backup systems.
Engineering Data
Engineering Advantages
| Advantage | Description |
|---|---|
| High Capacity | 628Ah cells deliver 32.15 kWh of rated energy. |
| Fewer Parallel Units | Large single-cabinet capacity reduces system complexity. |
| Smart BMS | Balancing, protection and monitoring throughout operation. |
| Stable Cycling | 6000+ cycles at 0.5C with 80% DOD. |
| Wide Compatibility | CAN and RS485 with mainstream low-voltage inverters. |
Datasheet
Technical Specifications
| Item | Specifications |
|---|---|
| Rated Energy(kWh) | 32.153kWh |
| Configuration | 2P16S |
| Nominal Voltage(V) | 51.2V |
| Working Voltage(V) | 41.6V~57.6V |
| Rated Capacity(Ah) | 628Ah |
| Rated charge/discharge Current(A) | 157A@25± 2℃ (Recommended) |
| Maximum charging current | 200A@25± 2℃ |
| Maximum discharge current | 157A@25± 2℃ (Recommended) |
| Working Temperature | 0～40℃(Charge) -20～40℃(Discharge) |
| Humidity(%) | 5~80% |
| Altitude Limited(m) | 0-3000m |
| Dimension(mm) | 416×560×910mm |
| Storage temperature and humidity | -10℃~35℃ (Within one month of storage), 25±2℃ (Within three months of storage), 65%±20% RH |
| Weight | 245kg± 3kg |
| Cycle life | 8000 cycles, 70% SOH |
| IP grade | IP10 |
| Communication mode | CAN&RS485 |
Compatibility
Suitable Inverters
| NO. | Brand | Protocol | Version | Communication Mode | Baud Rate | Model |
|---|---|---|---|---|---|---|
| 1 | Pylontech | CAN-Bus-protocol-PYLON | V1.3 | CAN | 500K | Applicable to all inverters using the Pylontech CAN protocol |
| 2 | Growatt-SPF | Growatt BMS CAN-Bus-protocol-low-voltage | V1.05 | CAN | 500K | SPF 5000TL HVM-WPV-P, SPF 5/6/8/10KT HVM |
| 3 | Growatt-SPH | Growatt BMS communication protocol for Growatt low voltage battery | V1.01 | CAN | 500K | Growatt SPH 5000 |
| 4 | Goodwe | Goodwe Communication Protocol | V1.5 | CAN | 500K | GW3648D-ES |
| 5 | Sofar | Sofar Solar Energy Storage Inverter BMS Universal CAN Protocol Description | V1.0 | CAN | 500K | HYD 3000-ES |
| 6 | SMA | FSS-ConnectingBat-TI-en-20W | V2.0 | CAN | 500K | SI6.0,SI8.0H-13 |
| 7 | Victron | can-bus_bms_protocol | V1.0 | CAN | 500K | MultiPLUS-II |
| 8 | Studer | Technical specification Studer BMS Protocol | V1.03 | CAN | 500K | XTM 4000-48 |
| 9 | Ginlong | CAN communication protocol | V1.0 | CAN | 500K | RHI-5K-48ES, Solis_EO_5G_ENX, S5-EO1P5K-48-P, S6-EH1P6K-L-EN |
| 10 | Sungrow | CAN-Bus-protocol-PYLON | V1.3 | CAN | 500K | SH5K-30 |
| 11 | Chint Power | Chint+Power CAN bus protocol V1.0.0 | V1.0 | CAN | 500K | CPS SCE6KTL-120/EU |
| 12 | Luxpowertek | Luxpowertek Battery CAN Protocol | V1.0 | CAN | 500K | SNA5000 WPV, LXP6K |
| 13 | Sol-Ark | Sol-Ark CAN Bus Protocol | V1.2 | CAN | 500K | Sol-Ark 8K & 12K |
| 14 | TBB | TBB Lithium Battery BMS Platform CAN Communication Protocol V1.02 | V1.02 | CAN | 500K | RiiO Sun 5KVA-S, CA3090L |
| 15 | Deye | CAN-Bus-protocol-PYLON-v1.3 | V1.0 | CAN | 500K | SUN-3 6KSG03LP1-EU |
| 16 | Sunsynk | CAN-Bus-protocol-PYLON | V1.3 | CAN | 500K | SUN-3K-SG04LP1-24-EU, SUN-3.6K-SG04LP1-EU, SUN-5K-SG04LP1-EU, SUN-6K-SG04LP1-EU |
| 17 | Livoltek | LIVOLTEK CANBUS Protocol of Low Voltage System V1.0 | V1.0 | CAN | 500K | GF1-3K48S1, GF1-5K48S1 |
| 18 | Sorotec | 2_CAN Protocol1.0 | V1.0 | CAN | 500K | REVO III 5.5-8KVA |
| 19 | megarevo | TBB Lithium Battery BMS Platform CAN Communication Protocol V1.02 | V1.01 | CAN | 500K | REVO_RKL1, R8KLNA, R5KL1 |
| 20 | Afore | Luxpowertek Battery CAN Protocol | V1.0 | CAN | 500K | AF3K-SL, AF5K-SL |
| 21 | Sacolar | Growatt BMS CAN-Bus-protocol-low-voltage | V1.05 | CAN | 500K | SP Series |
| 22 | Must | CAN-Bus-protocol-PYLON | V1.3 | CAN | 500K | PV1800 Pro Series (3/5.2KW) |
| 23 | INVT | CAN-Bus-protocol- | V1.3 | CAN | 500K | INVT iMarsXD6KTL |
| 24 | Voltronicpower | Voltronic Inverter and BMS 485 communication protocol | V1.0 | RS485 | 9600 | InfiniSolar VII, GSDHW VIV-6KW |
| 25 | SRNE | PACE BMS Modbus Protocol for RS485 | V1.3 | RS485 | 9600 | HF4850S80-H, HF4850S80-145, HF2430S60-100, HES4855S100-H |
| 26 | Growatt-SPF | SPF BMS RS485 Protocol | V2.01 | RS485 | 9600 | SPF 5000TL HVM-WPV-P, SPF 10KT HVM |
| 27 | Pylontech | RS485-protocol-pylon-low-voltage | V3.5 | RS485 | 9600 | Applicable Pylontech 485 protocol data summary inverter 3K |
| 28 | Deye | RS485-protocol-pylon-low-voltage-New Protocol Design-Deye NO.12 9600 | V1.0 | RS485 | 9600 | SUN-3 6KSG03LP1-EU, SUN-12K-SG04LP3-EU |
| 29 | EAsun | Voltronic Inverter and BMS 485 communication protocol | V1.0 | RS485 | 9600 | IGrid SV IV 5.6KW |
| 30 | MPP Solar | Voltronic Inverter and BMS 485 communication protocol | V1.0 | RS485 | 9600 | MPI WP 12_15KW |
| 31 | Bentterson | RS485-protocol-pylon-low-voltage-New Protocol Design | V1.0 | RS485 | 9600 | SAL 3.5KW-UL, SAL 5KW-EU |
| 32 | Johnray | johnray-PYLON | V1.0 | CAN | 500K | Applicable to all inverters using the Pylontech CAN protocol |
| 33 | Solax | CAN-Bus-protocol-PYLON | V1.3 | CAN | 500K | X1-HYB-LV |
| 34 | Renac | CAN-Bus-protocol-PYLON | V1.3 | CAN | 500K | Renac-ESC5000-DS |
| 35 | Hoymiles | CAN-Bus-protocol-PYLON | V1.3 | CAN | 500K | HYS-5.0LV-EUG1 |
| 36 | Each Energy | CAN-Bus-protocol-PYLON | V1.3 | CAN | 500K | PLS8K/10K/12K-M1 |
| 37 | OLU | CAN-Bus-protocol-PYLON | V1.3 | CAN | 500K | OLU5048GII |
| 38 | Hinen | CAN-Bus-protocol-PYLON | V1.3 | CAN | 500K | Hinen-SH6KL |
| 39 | Hypontech | CAN-Bus-protocol-PYLON | V1.3 | CAN | 500K | HBT 5-12K |
| 40 | Aiswei | CAN-Bus-protocol-PYLON | V1.3 | CAN | 500K | ASW5000H-S2 |
| 41 | Senegy | CAN-Bus-protocol-PYLON | V1.3 | CAN | 500K | SE 6KHB-120 |
| 42 | AOTAI | Aotai Lithium Battery BMS Platform CAN Communication Protocol V1.02 | V1.02 | CAN | 500K | AEP-3/3.6/5KS48P |
| 43 | CVTE | CAN-Bus-protocol-PYLON | V1.2 | CAN | 500K | 5KW Inverter |
| 44 | SOSEN | CAN-Bus-protocol-PYLON | V1.2 | CAN | 500K | |
| 45 | AP Systems | CAN-Bus-protocol-PYLON | V1.3 | CAN | 500K | APstorage ELS Series |
| 46 | Austa | CAN-Bus-protocol-PYLON-v1.3 | V1.3 | CAN | 500K | SUN-3 6KSG03LP1-EU, SUN-10/12K-SG04LP3-EU |
| 47 | YelonESS | CAN-Bus-protocol-PYLON-v1.3 | V1.3 | CAN | 500K | HV6K-1L single-phase low voltage |
| 48 | Xindun | SPF BMS RS485 protocol | V2.01 | RS485 | 9600 | LS-T50248-W60, HP-pro50248 |
| 49 | Techfine | RS485-protocol-pylon-low-voltage | V3.5 | RS485 | 9600 | GB5548JMH |
| 50 | CVTE | RS485-protocol-pylon-low-voltage | V3.5 | RS485 | 9600 | 5KW Inverter |
| 51 | NEXT | RS485-protocol-pylon-low-voltage | V3.5 | RS485 | 9600 | MAX PRO-7.2/8.2/10.2KW, NM-ECO-3.6/4.2/6.2KW PLUS |
| 52 | Snadi | RS485-protocol-pylon-low-voltage | V3.5 | RS485 | 9600 | NKH-6K-IP54 |
| 53 | Evada | RS485-protocol-pylon-low-voltage | V3.5 | RS485 | 9600 | EVS5048H |
| 54 | Chisage ESS | RS485-protocol-pylon-low-voltage | V3.5 | RS485 | 9600 | Mars-5/6/8/10/12/14G1-LE |
| 55 | SMK Solar | Lithium Battery Protocol GT Edition | V1.0 | RS485 | 9600 |
Frequently Asked Questions
Frequently Asked Questions
What is the rated energy of the STAL-L-560?
32.15 kWh from 628Ah at 51.2V.
Which inverters are compatible?
CAN and RS485 communication with mainstream low-voltage inverters.
What is the cycle life?
6000+ cycles with capacity retention.
What is the working voltage range?
42V ~ 58.4V.
What is the cell configuration?
2P16S LiFePO4.
