Standard Battery Monitoring System (BMS)
Proactive Health Monitoring & Lifespan Optimization for Battery Assets.

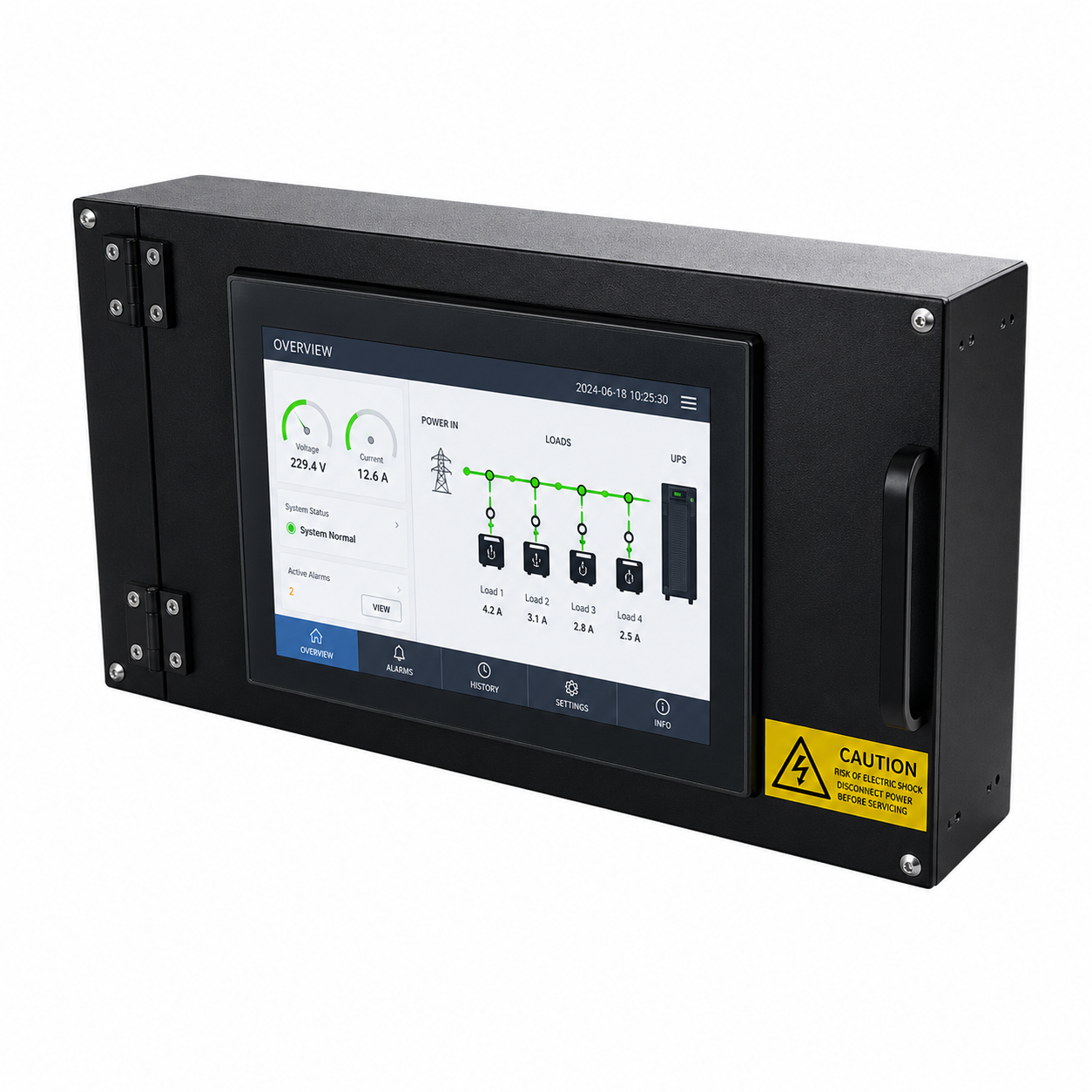

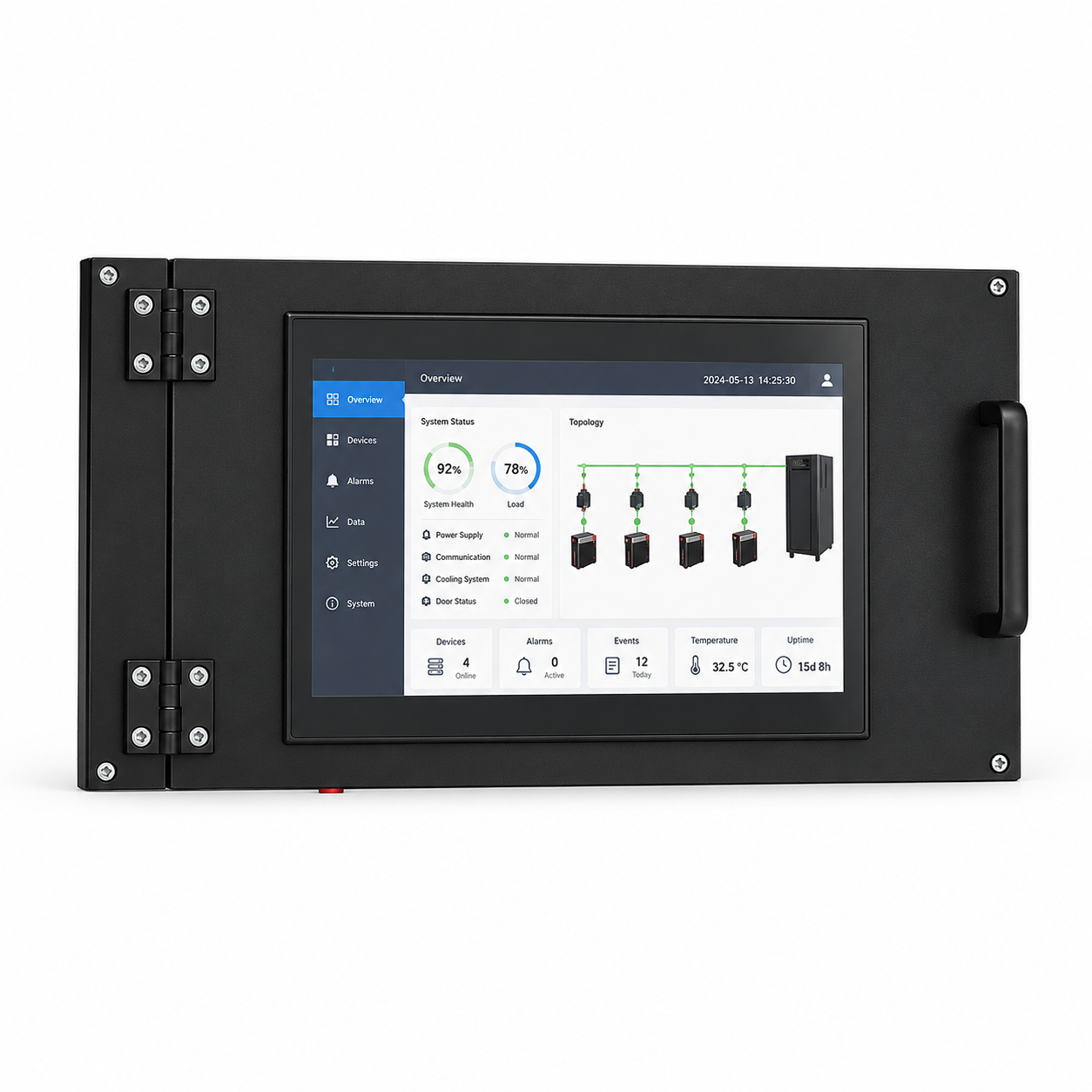

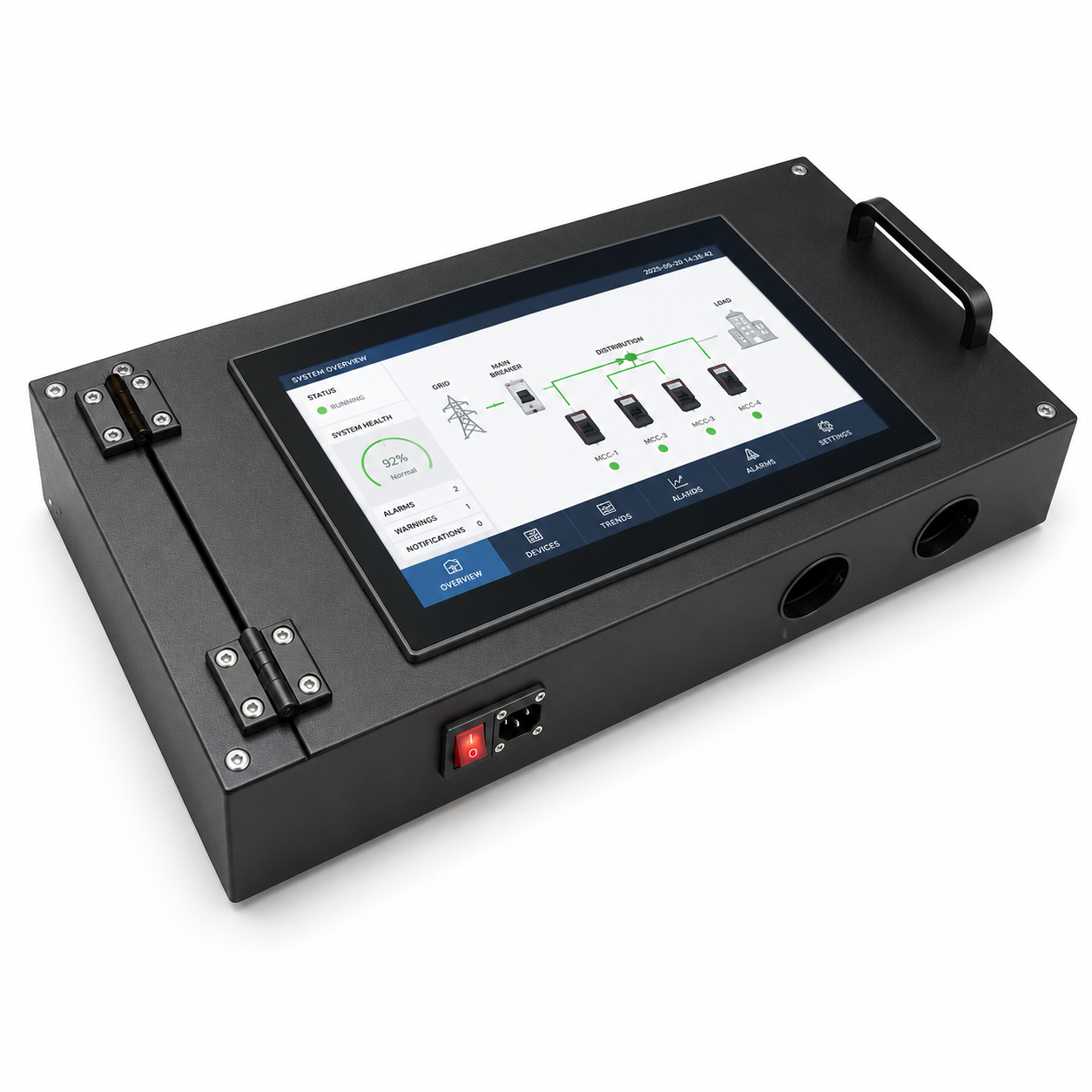

Conluxs BMS · 440×220×80 mm · Tower / Wall / Rack Mount
Product Overview
Traditional manual battery inspection methods are labor-intensive and often fail to provide the precise per-cell telemetry required to prevent catastrophic failures. The Conluxs Online Battery Monitoring System provides real-time, comprehensive oversight of battery health, including string voltage, string current, individual cell voltage, temperature, and UPS integration, ef╢fectively extending the service life of your backup power assets.
What Is It
Standard Battery Monitoring System (BMS) — real-time battery health monitoring, providing comprehensive oversight of string voltage, string current, individual cell voltage, temperature, and UPS integration.
Key Applications
Battery health monitoring for backup power assets with UPS integration.
Technical Specifications
Key Features & Value Propositions
- Enhanced Safety: Built-in reverse polarity protection prevents damage to sensors or battery terminals during installation. Ring-topology communication ensures that a single module failure does not disrupt data flow for the remaining cells.
- Superior Reliability: Shipped as a fully pre-assembled, pre-configured unit to minimize site deployment time. Simply connect to power for immediate operation. Internal fusing provides robust electrical protection and high immunity to external interference.
- Intelligent Diagnostics: Real-time monitoring of voltage, charge/discharge current, internal resistance, SOC (State of Charge), SOH (State of Health), and temperature. Includes a free, open MODBUS RTU interface for seamless integration with third-party DCIM/monitoring platforms.
Engineering Advantages
| Advantage | Description |
|---|---|
| Reverse Polarity Protection | Built-in reverse polarity protection prevents damage to sensors or battery terminals during installation. Ensures safe commissioning even in high-pressure deployment scenarios. |
| Loop Communication | Designed for high-reliability ring-topology loop communication; the loss of one unit does not cascade into a system-wide communication failure. This architecture guarantees data integrity across the entire monitoring chain. |
| Color-Coded Fault Localization | Features intuitive, color-coded LED "breathing lights" that allow maintenance teams to instantly pinpoint the exact location of a faulty battery cell, reducing MTTR significantly. |
| Plug-and-Play Deployment | Factory-pre-tuned units significantly reduce the potential for human error during commissioning and shorten installation timelines. Simply connect to power for immediate operation. |
| Comprehensive Data Modeling | Enables advanced predictive maintenance by tracking SOH trends and SOC analytics, identifying latent hazards before they threaten system availability. |
Frequently Asked Questions
What is the Standard Battery Monitoring System?
The Standard Battery Monitoring System (BMS) provides real-time, comprehensive oversight of battery health, including string voltage, string current, individual cell voltage, temperature, and UPS integration.
What parameters does the BMS monitor?
The BMS monitors voltage, charge/discharge current, internal resistance, SOC (State of Charge), SOH (State of Health), and temperature.
What are the dimensions of the BMS unit?
The BMS unit measures 440 × 220 × 80 mm and supports Tower / Wall / Rack mounting.
Related Solutions
- smart building battery monitoring solutionsSmart Building Solutions
Related Technical Guides
- RS-485 and Modbus for Facility Monitoringtechnical guide
Ready to Monitor Your Battery Assets?
Download the complete BMS technical datasheet or contact our sales team for a custom configuration. Our engineering team will follow up within 48 hours.
