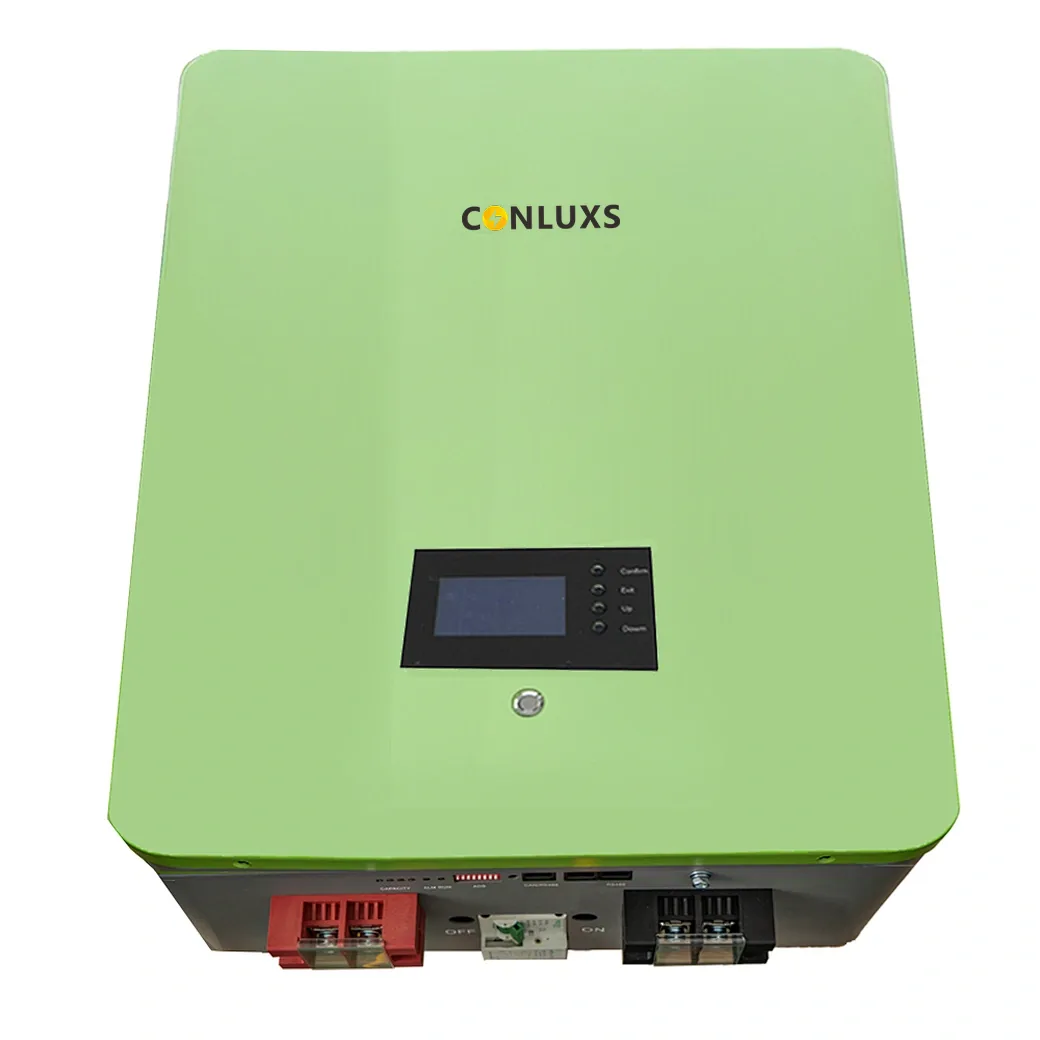

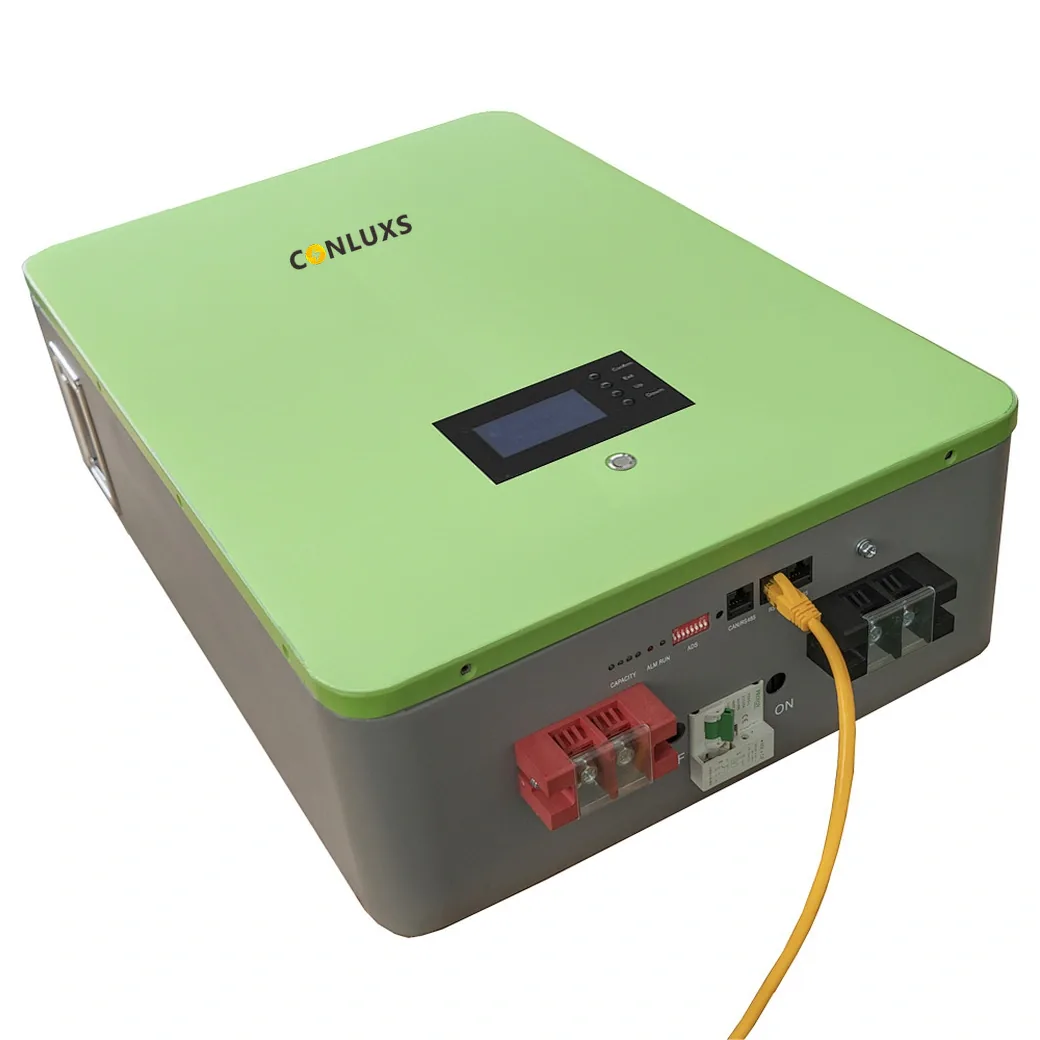

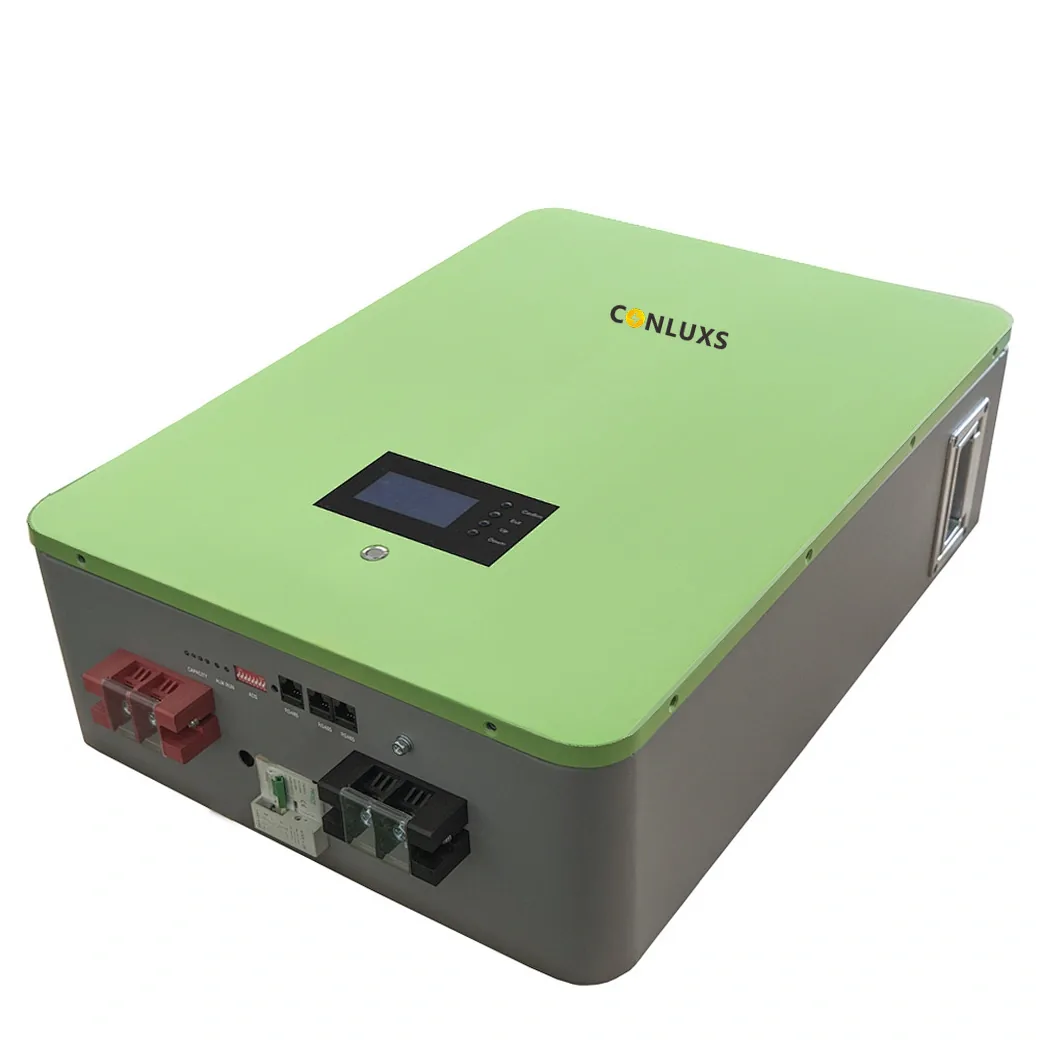

TANA-S 5.12 kWh Stackable LiFePO4 Battery
Stackable 51.2V modular solar storage battery for residential hybrid solar systems.
CONLUXS TANA-S · 51.2V · 100Ah · 5120Wh · Stackable
Product Overview
The TANA-S is a 5.12 kWh stackable solar storage battery built on 100Ah LiFePO4 cells in a 1P16S configuration. Rated at 51.2V with 5120Wh of energy, it is sized for typical daily residential cycling with solar self-consumption. The intelligent BMS supports up to 100A charge and discharge current, allowing the pack to handle higher loads while maintaining cell-level protection. Capacity can be expanded by stacking additional units, and CAN/RS485 communication integrates with mainstream low-voltage inverters.
Key Performance Specifications
Key Technical Highlights
- Stackable Expansion: Add packs to scale capacity as household demand grows.
- Intelligent BMS: Advanced BMS design with cell protection and system monitoring.
- 100A Charge / Discharge: Supports 100A continuous charge and discharge current.
- Passive Balancing: Maintains cell consistency to extend pack performance.
- Plug-and-Play: Modular stacking simplifies installation and expansion.
- CAN / RS485: Communicates with major low-voltage hybrid inverters.
What Is It
TANA-S is a 5.12 kWh stackable 51.2V LiFePO4 battery with an intelligent BMS and up to 100A charge/discharge for residential solar storage.
Key Applications
Residential solar self-consumption, stackable home backup, off-grid and hybrid solar systems.
Engineering Advantages
| Advantage | Description |
|---|---|
| Stackable Modular Design | Multiple packs can be stacked to scale capacity as energy needs grow. |
| Intelligent BMS | Integrated BMS provides cell protection, balancing and system monitoring. |
| High Current Capability | Up to 100A charge and discharge current supports higher household loads. |
| Flexible Expansion | Capacity can be expanded by stacking additional TANA-S modules. |
| Wide Compatibility | CAN and RS485 communication covers mainstream low-voltage inverters. |
Technical Specifications
| Item | Specifications |
|---|---|
| Rated energy(kWh) | 5.12KWh |
| Configuration | 1P16S |
| Nominal Voltage(V) | 51.2V |
| Nominal Capacity(Ah) | 100Ah |
| Working Voltage(V) | 42V~58.4V |
| Standard charge/discharge / Current(A) | 50A @25±2℃ |
| Maximum charge/discharge current | 100A@25±2℃ |
| Working Temperature | 0～40℃(Charge) -20～40℃(Discharge) |
| Weight(Kg) | 48Kg±3kg |
| Dimension(mm) | (563)×(399)×(162)mm |
| Cycle life | 6000 cycles @25℃ / 50A Charging/discharging 80% DOD |
| Communication mode | CAN&RS485 |
Suitable Inverters
| Brand | Protocol | Communication | Versions |
|---|---|---|---|
| Pylontech | CAN-Bus-Protocol-PYLON | CAN | V1.3 |
| Goodwe | Goodwe Communication Protocol | CAN | V1.5 |
| Lolis | CAN Communication Protocol | CAN | V1.0 |
| Sofar | BMS CAN BUS Protocol | CAN | V1.0 |
| Growatt-SPF | Growatt BMS CAN-Bus-Protocol-Low-Voltage | CAN | V1.05 |
| Growatt-SPH | Growatt BMS Communication Protocol Of Growatt Low Voltage Battery | CAN | V1.01 |
| SMA | FSS-ConnectingBat-TI-EN-20W | CAN | V2.0 |
| Victron | Can-Bus_Bms_Protocol | CAN | V1.0 |
| LUXPOWER | Luxpowertek Battery CAN Protocol | CAN | V1.0 |
| Studer | Technical Specification Studer BMS Protocol | CAN | V1.03 |
| TBB | TBB BMS CAN Communication V1.02 | CAN | V1.02 |
| Deye | CAN-Bus-Protocol-PYLON-V1.3 | CAN | V1.0 |
| Sorocec | 2_CAN Protocol 1.0 | CAN | V1.0 |
| MEGAREVO | Hybrid Inverter_5K_BMS Protocol V1.01 | CAN | V1.01 |
| Amensolar | CAN-Bus-Protocol-PYLON | CAN | V1.0 |
| Sacolar | Growatt BMS CAN-Bus-Protocol-Low-Voltage | CAN | V1.05 |
| MUST | PV1800F-CAN Communication Protocol | CAN | V1.04.04 |
| AFORE | Luxpowertek Battery CAN Protocol | CAN | V1.0 |
| Pylontech | RS485-Protocol-Pylon-Low-Voltage | 485 | V3.5 |
| Voltronic Power | Voltronic Inverter And BMS 485 Communication Protocol | 485 | V1.0 |
| SRNE | PACE BMS Modbus Protocol For RS485 | 485 | V1.3 |
| Deye | RS485-Protocol-Pylon-Low-Voltage | 485 | V1.0 |
| Growatt-SPF | SPF BMS RS485 | 485 | V2.01 |
Frequently Asked Questions
What are the rated capacity and energy of the TANA-S?
100Ah nominal capacity and 5120Wh rated energy at 51.2V nominal voltage.
How many TANA-S units can be connected in parallel?
The stackable design allows multiple units to be connected to expand capacity.
Which inverters are compatible with the TANA-S?
Compatible via CAN and RS485 with mainstream 51.2V low-voltage hybrid inverters.
What is the cycle life of the battery?
Rated for 6000 cycles at 25C, 80% DOD with 80% capacity retention.
What charge/discharge current does it support?
Up to 100A maximum charge and discharge current at 25 +/- 2C.
