UPS Input Distribution Cabinets
High-Availability Input Infrastructure Custom-Engineered from 20 kW to 400 kW for Mission-Critical UPS Clusters.
What Is It
UPS Input Distribution Cabinets — GDH NR series input infrastructure engineered from 20 kW to 400 kW.
Key Applications
Mission-critical UPS clusters.
Typical Solutions & Technical Specifications
Enclosure: W800 × H2000 × D600 mm · IP30 Standard · Tempered Glass Door
Model & Framework

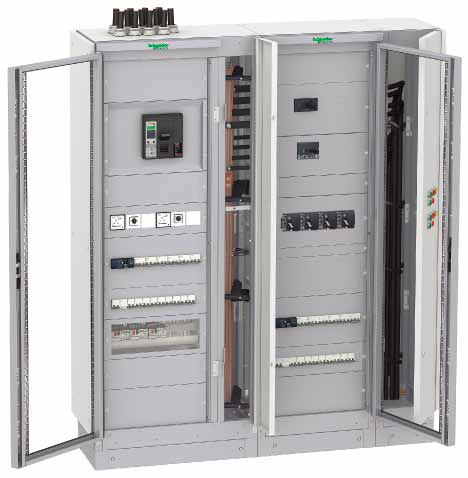

GDH NR Series · W800 × H2000 × D600 mm · IP30 Standard Protection · Clear Tempered Glass Door
Our UPS Input and Output Distribution Cabinets are built on the premium GDH NR modular platform. Featuring a highly flexible and agile enclosure structure, the system allows for effortless cabinet configuration, seamless baying, and back-to-back/side-by-side parallel scaling to optimize data center floor footprints.
Premium Component Integration & Custom Breaker Configurations
- MCCBs (Above 63A): Standard Schneider Electric EZD series MCCBs. Upgraded options: Schneider CVS / NSX / NS, ABB, or Siemens.
- MCBs (63A and Below): Standard Schneider iC65 series MCBs. Premium alternatives: Schneider EA9 / iDPN, ABB, or Siemens.
Scalable Power Capacity: Total cabinet power capacity ranges from 20 kW to 400 kW, engineered and custom-tailored precisely to client specifications.
Standard Infrastructure Monitoring: Pre-configured with Class B Surge Protective Devices (SPD) and high-precision Digital Display Multi-Function Meters for real-time power analytics.
Operational Safety & Enclosure Engineering
- Dual-Layer Safety Barriers: Engineered with an outer transparent tempered glass door coupled with an inner dead-front escutcheon panel for circuit breaker installation. This dual-gate architecture effectively prevents accidental contact, guaranteeing maximum safety for field maintenance personnel.
- Ingress Protection: Standard IP30, with upgradeable options up to IP31 or IP54 depending on harsh site environments.
- Surface & Insulation: Enclosure surface treated with electrostatic-sprayed epoxy resin powder coating for superior anti-corrosion. All internal structural insulation materials feature exceptional high-temperature resistance and self-extinguishing, flame-retardant characteristics.
Featured Products
- UPS Isolation & Voltage Stabilizer Cabinetvoltage stabilization for UPS input distribution
- UPS Input/Output Distribution Cabinetinput/output distribution for UPS input cabinet systems
Related Technical Articles
- news-ats-sts-ups-eps-selection-guidetechnical reference
- news-ups-switchgear-synergytechnical reference
Frequently Asked Questions
What is the power range?
20 kW to 400 kW.
What breakers are used?
Schneider EZD series MCCBs above 63A, and iC65 series MCBs at 63A and below.
What monitoring is included?
Class B Surge Protective Devices and digital display multi-function meters.
Need a Custom UPS Input Distribution Scheme?

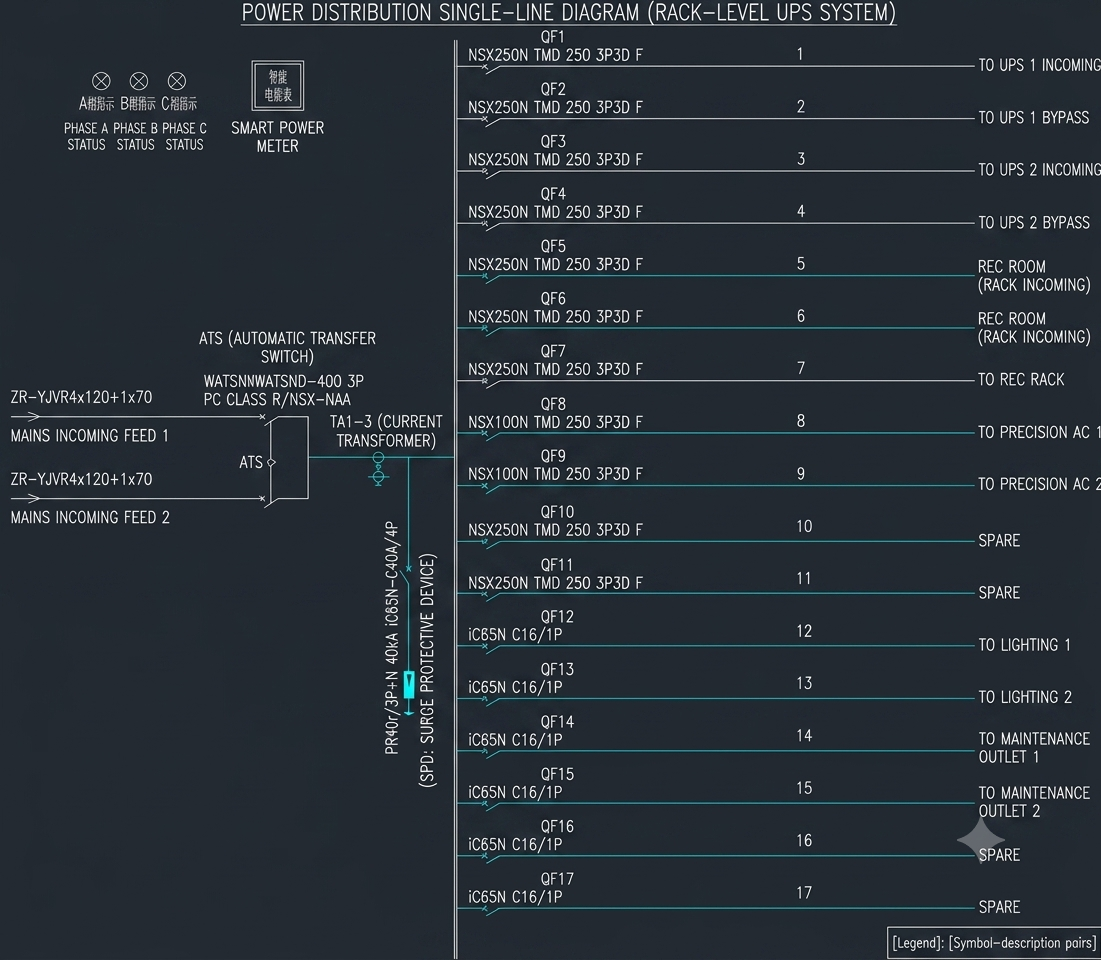

Share your single-line diagram (SLD) or technical requirements. Our engineering team will deliver a tailored specification sheet and drawing quotation within 48 hours.
Request Technical Specifications & Drawing Quotation
