HELI-50 53.2 kWh High Voltage Battery Energy Storage System
53.2 kWh high voltage LiFePO4 battery energy storage system with 512V, 104Ah cells, peak shaving and load shifting, expandable up to 85.19 kWh per cabinet.
CONLUXS HELI-50 · 53.2 kWh · 512V · 104Ah · 51 kW · 6000 cycles
Product Overview

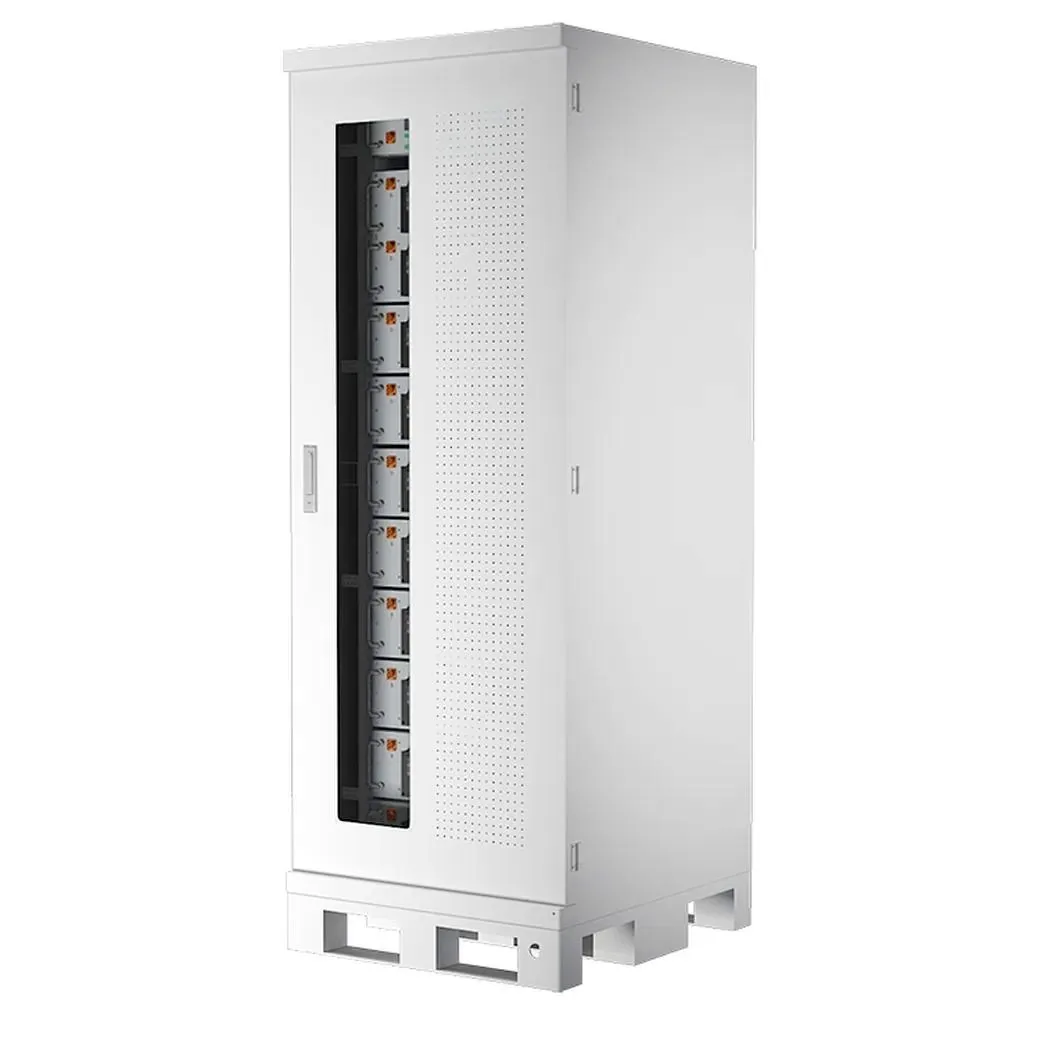

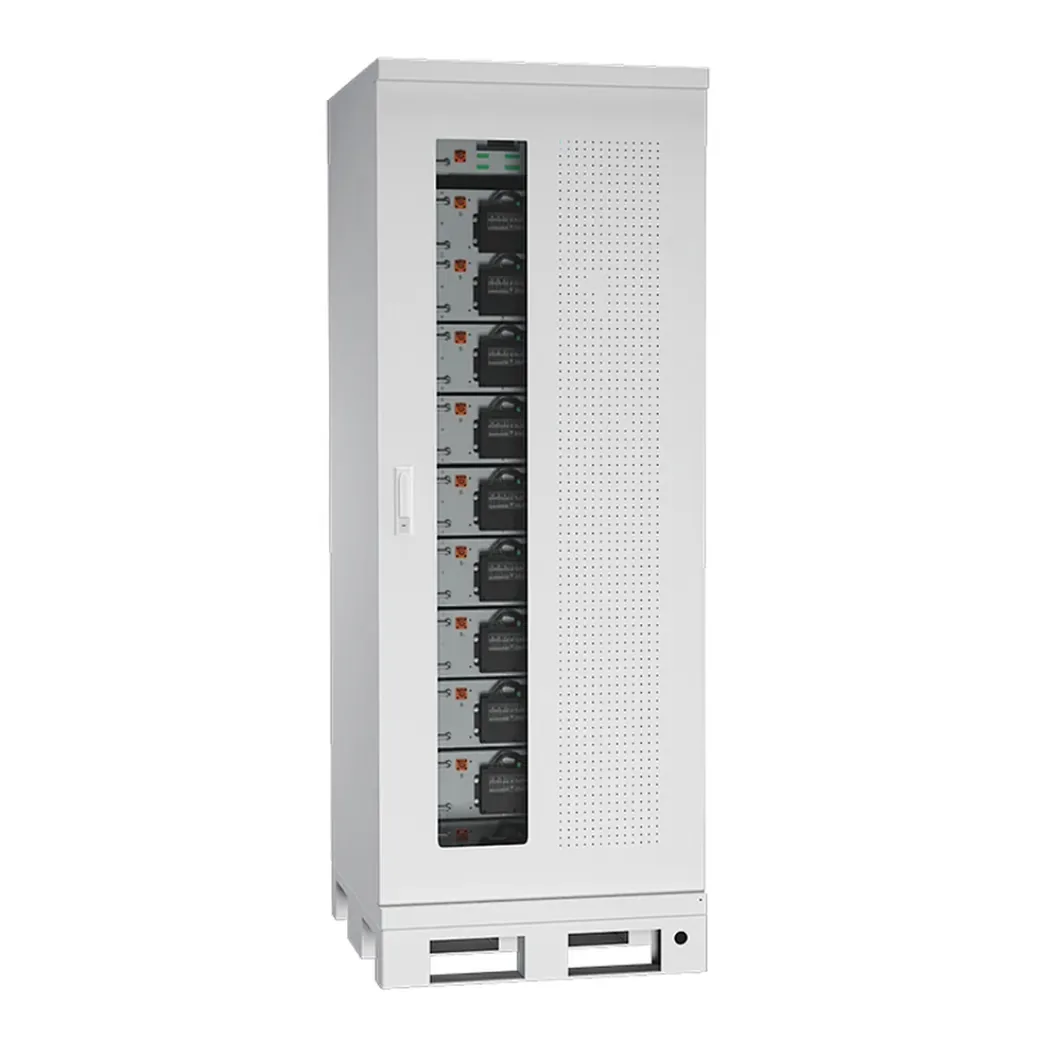

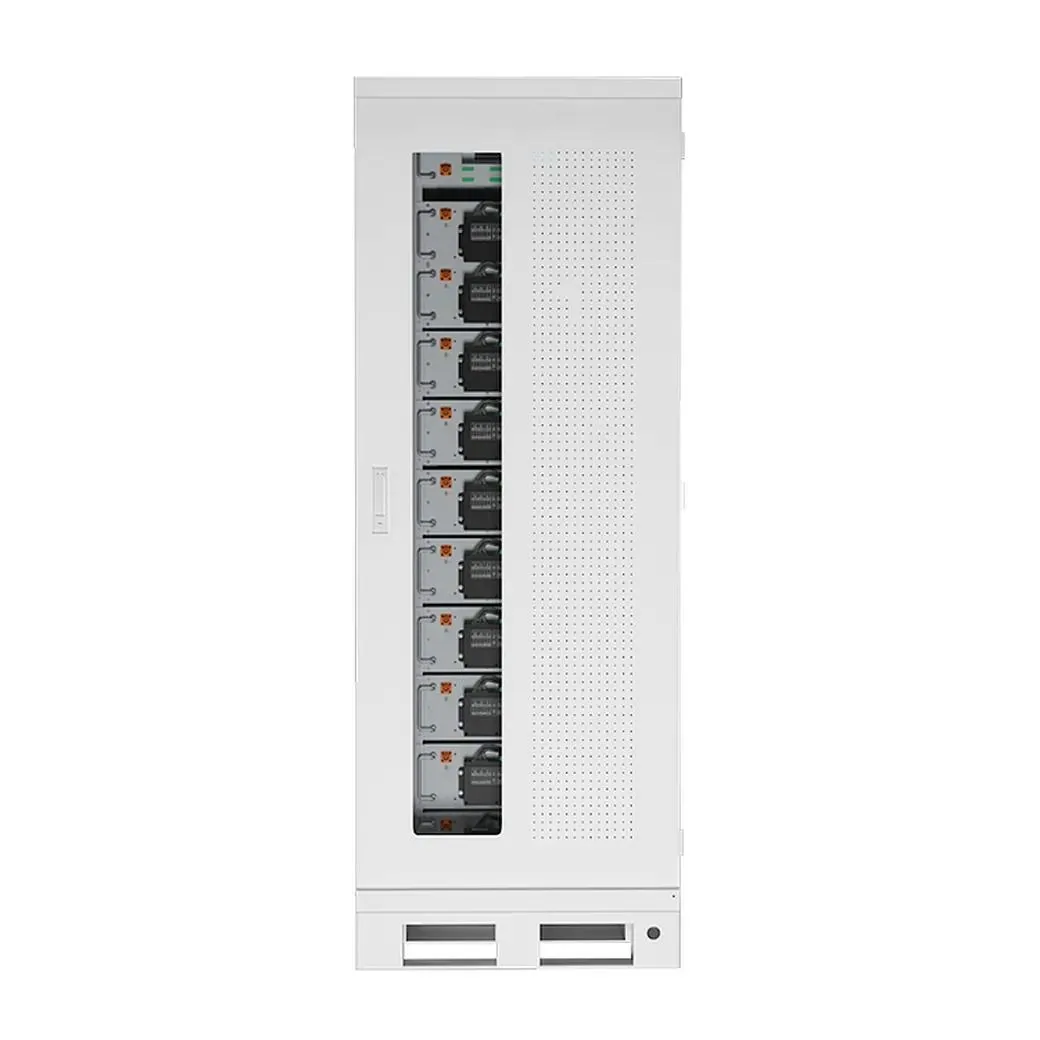

The CONLUXS HELI-50 is a 53.2 kWh high voltage battery energy storage system built for distributed energy storage. The power can be expanded up to 85.19 kWh in a single cabinet, or further increased by connecting cabinets in parallel, making it a customizable energy storage system. The system provides peak shaving and load shifting functions as standard. Each battery module has its own cooling fan to keep temperatures stable and improve performance. With aerosol extinguishing protection and 6000 cycle life, the HELI-50 delivers safe, dependable power for residential and commercial solar-plus-storage applications.
Key Performance Specifications
Key Technical Highlights
- Expandable Capacity: Up to 85.19 kWh per cabinet, expandable further with parallel cabinets.
- 512V High Voltage: High-efficiency 512V architecture for distributed battery energy storage.

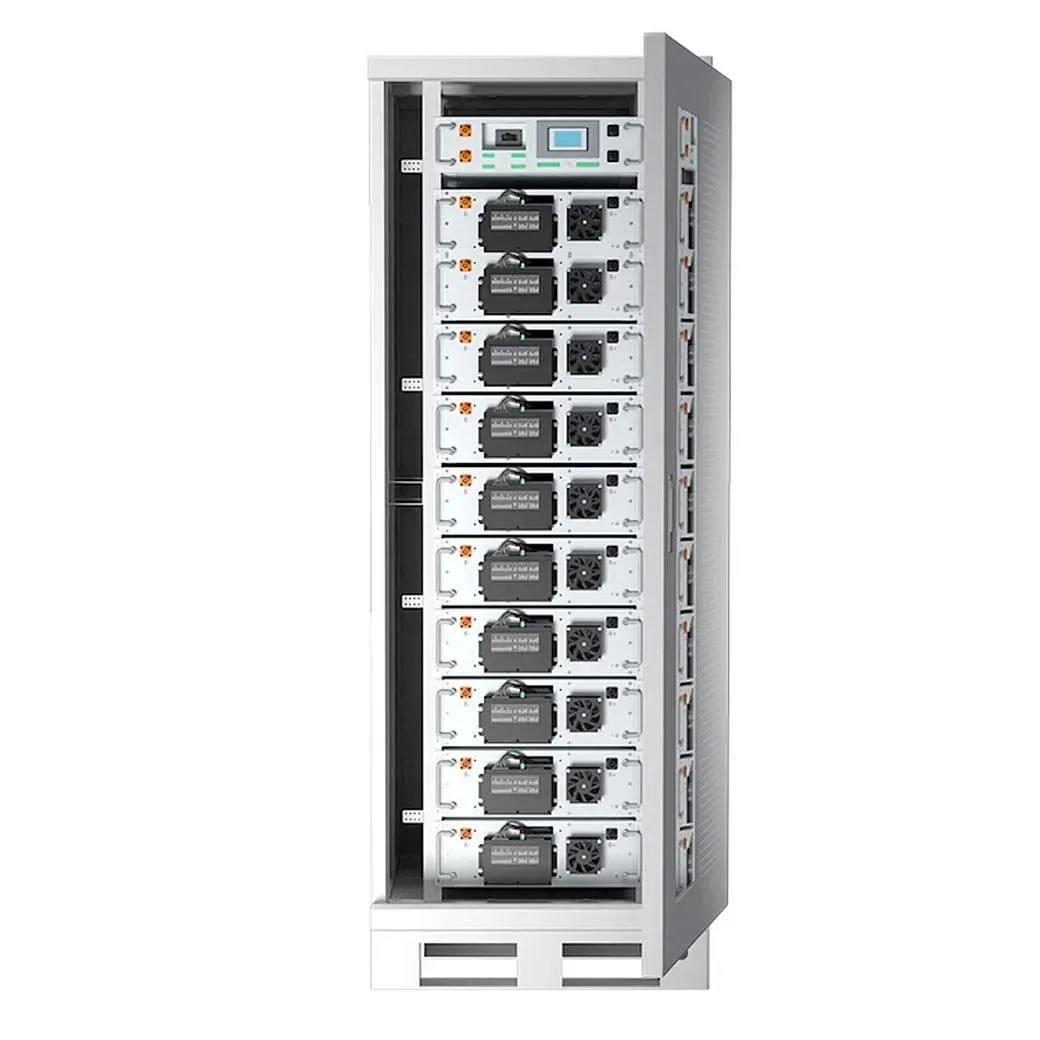

- 104Ah Cells: 10 modules of Grade A prismatic LiFePO4 cells with per-module cooling fans.
- Peak Shaving & Load Shifting: Built-in functions to reduce energy costs and balance demand.
- Aerosol Protection: Integrated extinguishing for comprehensive lithium battery safety.
- Inverter Compatibility: CAN & RS485 for leading high voltage inverters; series and parallel connection.
What Is It
HELI-50 is a 53.2 kWh high voltage LiFePO4 battery storage system, expandable up to 85.19 kWh per cabinet, with peak shaving and load shifting.
Key Applications
Distributed energy storage, residential and commercial solar-plus-storage, peak shaving and load shifting.
Engineering Advantages
| Advantage | Description |
|---|---|
| Highly Integrated | Compact all-in-one cabinet ready for fast on-site installation. |
| Easy to Expand | Up to 85.19 kWh per cabinet plus parallel cabinet expansion. |
| Standardization | Standardized production for consistent quality and delivery. |
| Intelligent | Per-module cooling fans and intelligent battery management. |
| Safety | Aerosol extinguishing protection for lithium battery safety. |
| Reliability | 6000 cycle life and wide working temperature range. |
Technical Specifications
| Item | Specifications |
|---|---|
| Rated energy | 53.2 kWh |
| Battery type | LiFePO4 |
| Configuration | 10×16S1P |
| Nominal voltage | 512 V |
| Nominal capacity | 104 Ah |
| Working voltage | 432–584 V |
| Rated charge/discharge current | 100 A |
| Rated charge/discharge power | 51 kW |
| Working temperature | -15°C to 45°C |
| Cycle life | 6000 cycles |
| Communication mode | CAN & RS485 |
Suitable Inverters
| Brand | Protocol | Communication | Versions |
|---|---|---|---|
| Sofar | SofarSolar CAN Inverter HV | CAN | V2.2 |
| Goodwe | CAN Hybrid Inverter HV | CAN | V1.4 |
| Deye | CAN HV | CAN | V1.0 |
| Afore | CAN Hybrid Inverter HV | CAN | V2.2 |
Frequently Asked Questions
What is the capacity of the HELI-50?
53.2 kWh at 512V nominal, expandable up to 85.19 kWh per cabinet.
What cells does the HELI-50 use?
10 battery modules of 3.2V 104Ah Grade A prismatic LiFePO4 cells.
What functions does it provide?
Peak shaving and load shifting as standard functions.
Can the system be expanded?
Yes, up to 85.19 kWh per cabinet and further with parallel cabinets.
Which inverters are compatible?
Major high voltage inverters via CAN and RS485, including Sofar, Goodwe, Deye and Afore.
