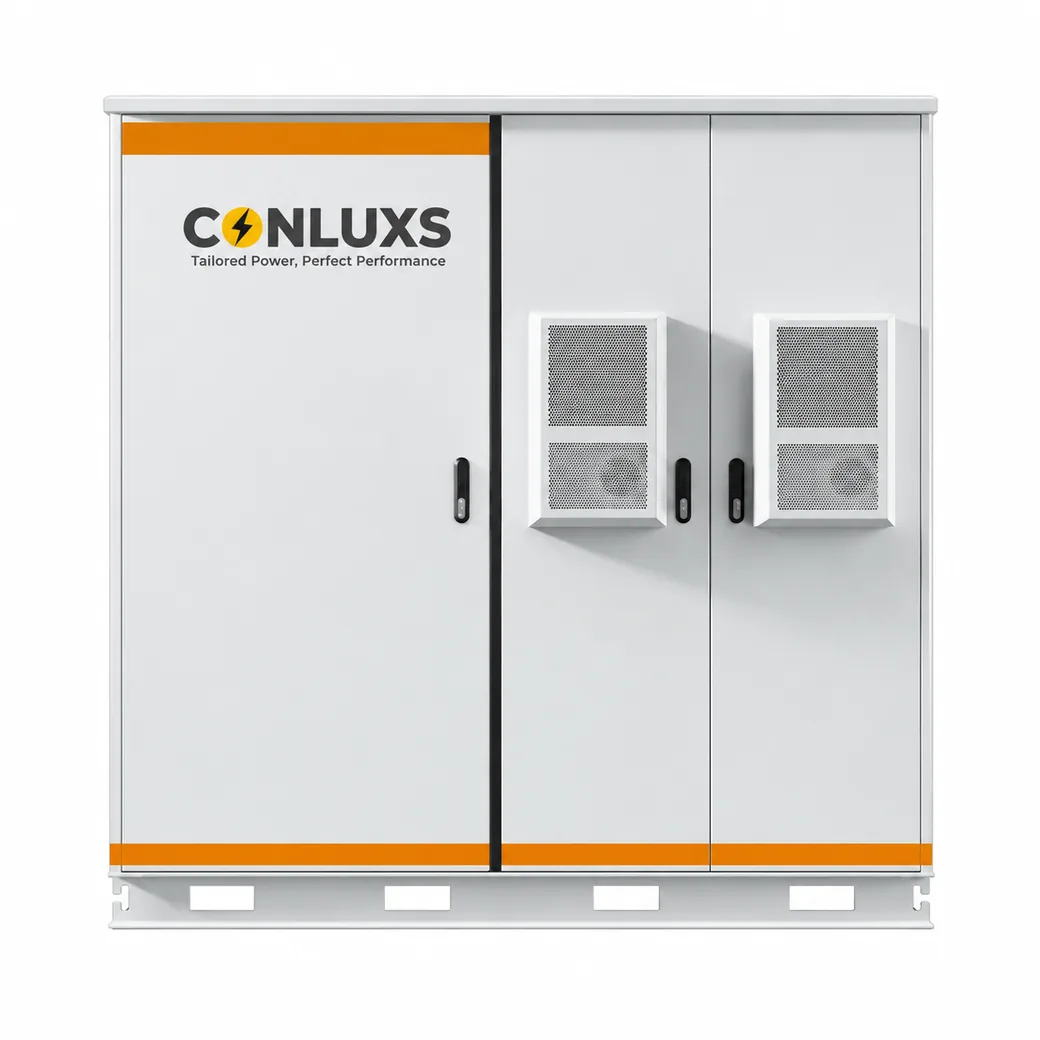

SUNO-145 145 kWh High Voltage Battery Energy Storage System
145 kWh high voltage LiFePO4 battery storage cabinet with 280Ah cells, industrial air conditioning and aerosol protection for commercial and industrial ESS.
CONLUXS SUNO-145 · 145.08 kWh · 280Ah LFP cells · 50 kW PCS · air cooling
Product Overview
The CONLUXS SUNO-145 is a 145 kWh high voltage energy storage cabinet consisting of 9 battery modules, each configured with 3.2V 280Ah Grade A prismatic LiFePO4 cells. The system uses industrial air conditioning to extend battery life and improve overall performance, with an additional cooling fan for the PCS heat dissipation. Safety is a core design requirement, so the system includes aerosol extinguishing protection and a high-voltage BMS for comprehensive protection in commercial and industrial applications.
Key Performance Specifications
Key Technical Highlights
- High Energy Density: 145 kWh in a compact modular cabinet, suitable for space-limited sites.
- 280Ah Cells: Grade A prismatic LiFePO4 cells in 9 battery modules for stable cycling.
- Industrial Air Conditioning: Built-in climate control extends battery life and stabilizes performance.
- PCS Heat Dissipation: Dedicated cooling fan for the power conversion system.
- Aerosol Fire Protection: Integrated extinguishing protection for comprehensive safety.
- Reliable Design: IP54 protection and -10°C to 50°C operating range.
What Is It
SUNO-145 is a 145 kWh high voltage LiFePO4 battery storage cabinet with 280Ah cells, industrial air conditioning and aerosol fire protection.
Key Applications
Commercial and industrial peak shaving, solar-plus-storage, backup power and micro-grid applications.
Engineering Advantages
| Advantage | Description |
|---|---|
| Highly Integrated | All-in-one cabinet design with factory pre-assembly and fast deployment. |
| Easy to Expand | Modular architecture supporting series and parallel expansion. |
| Standardization | Standardized production for consistent quality and delivery. |
| Intelligent | Intelligent temperature control and operation management. |
| Safety | Aerosol extinguishing and comprehensive battery protection. |
| Reliability | Wide operating temperature range and IP54 protection grade. |
Technical Specifications
| Item | Specifications |
|---|---|
| Capacity | 145.08 kWh |
| Voltage Range | 405V–591.3V |
| Rated Power | 50 kW |
| Match PCS | 50 kW |
| IP Grade | IP54 |
| Temperature Range | -10°C to 50°C |
| Humidity Range | ≤95% (non-condensing) |
| Maximum Working Altitude | 3000 m (derate above 2000 m) |
| Temperature Control | Air cooling |
| Fire Fighting System | Aerosol |
Frequently Asked Questions
What is the capacity of the SUNO-145?
145.08 kWh of rated energy with a 405V–591.3V voltage range and 50 kW rated power.
What cells does the SUNO-145 use?
9 battery modules of 3.2V 280Ah Grade A prismatic LiFePO4 cells.
How is the battery cooled?
Industrial air conditioning extends battery life, plus a dedicated PCS cooling fan.
How is the SUNO-145 protected?
A high-voltage BMS with aerosol extinguishing fire protection.
What is the protection grade?
IP54 with an operating temperature range of -10°C to 50°C.
