MAXPOWER-100 103 kWh High Voltage Commercial Energy Storage System
103 kWh all-in-one high voltage commercial energy storage system with 50 kW hybrid inverter, EMS, BMS, air cooling and fire protection.
CONLUXS MAXPOWER-100 · 103 kWh · 691.2Vdc · 50 kW hybrid inverter · 1.21 m² footprint
Product Overview

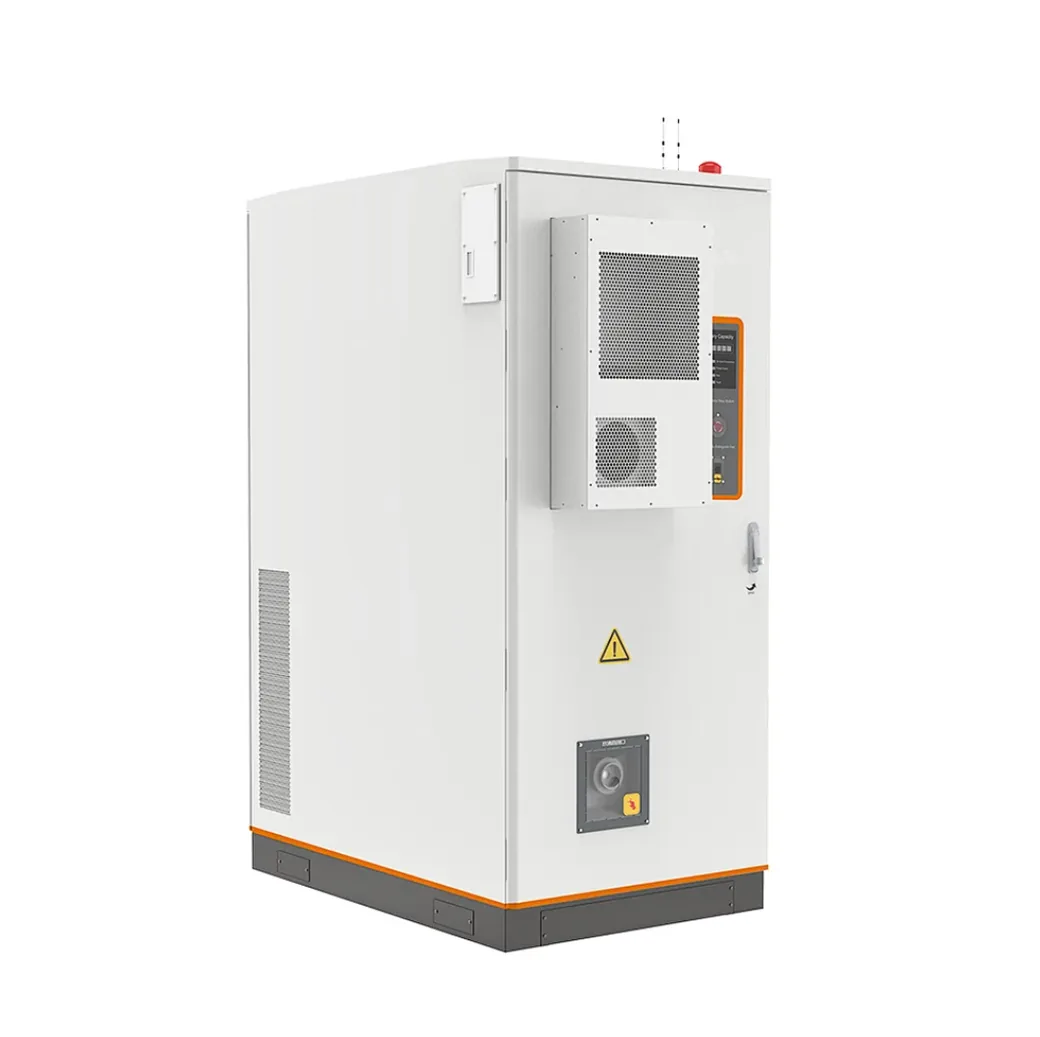

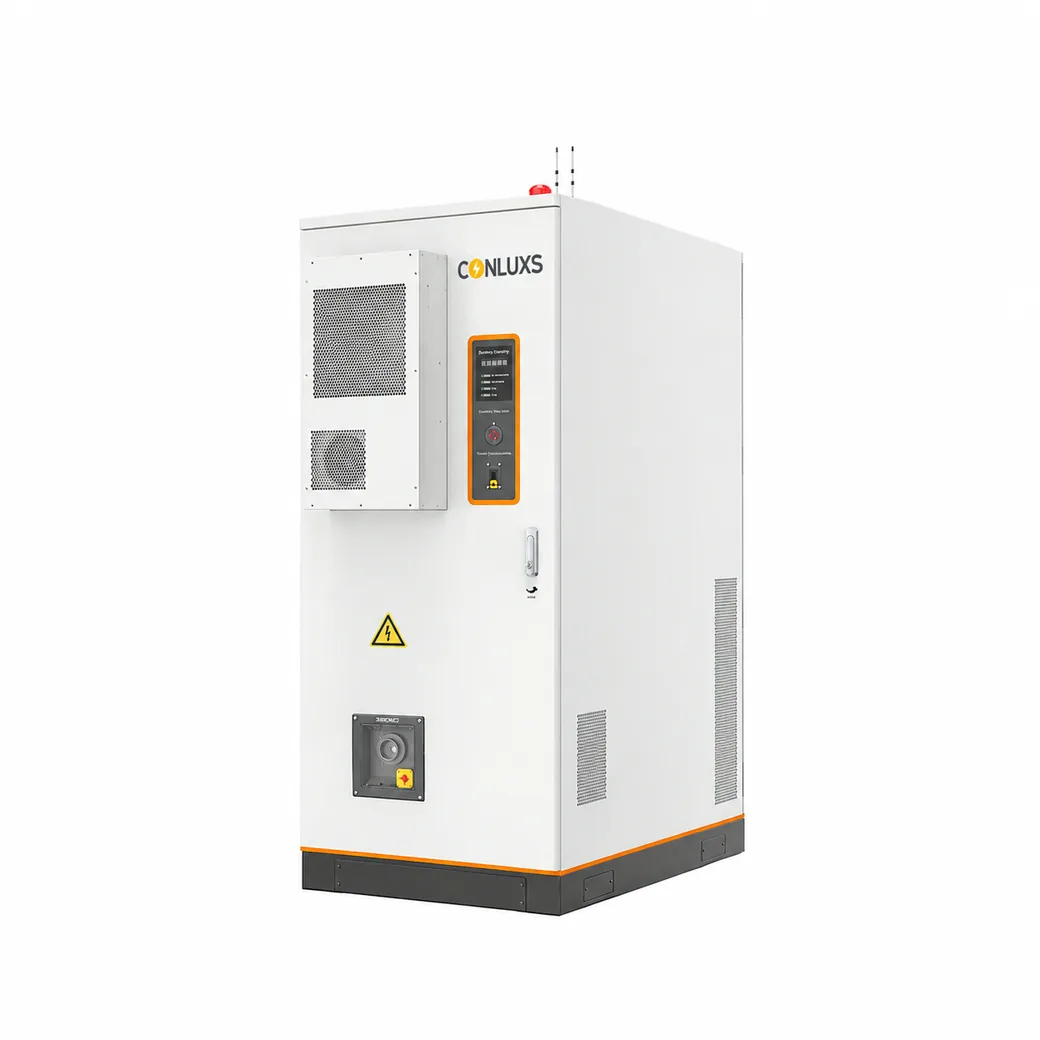

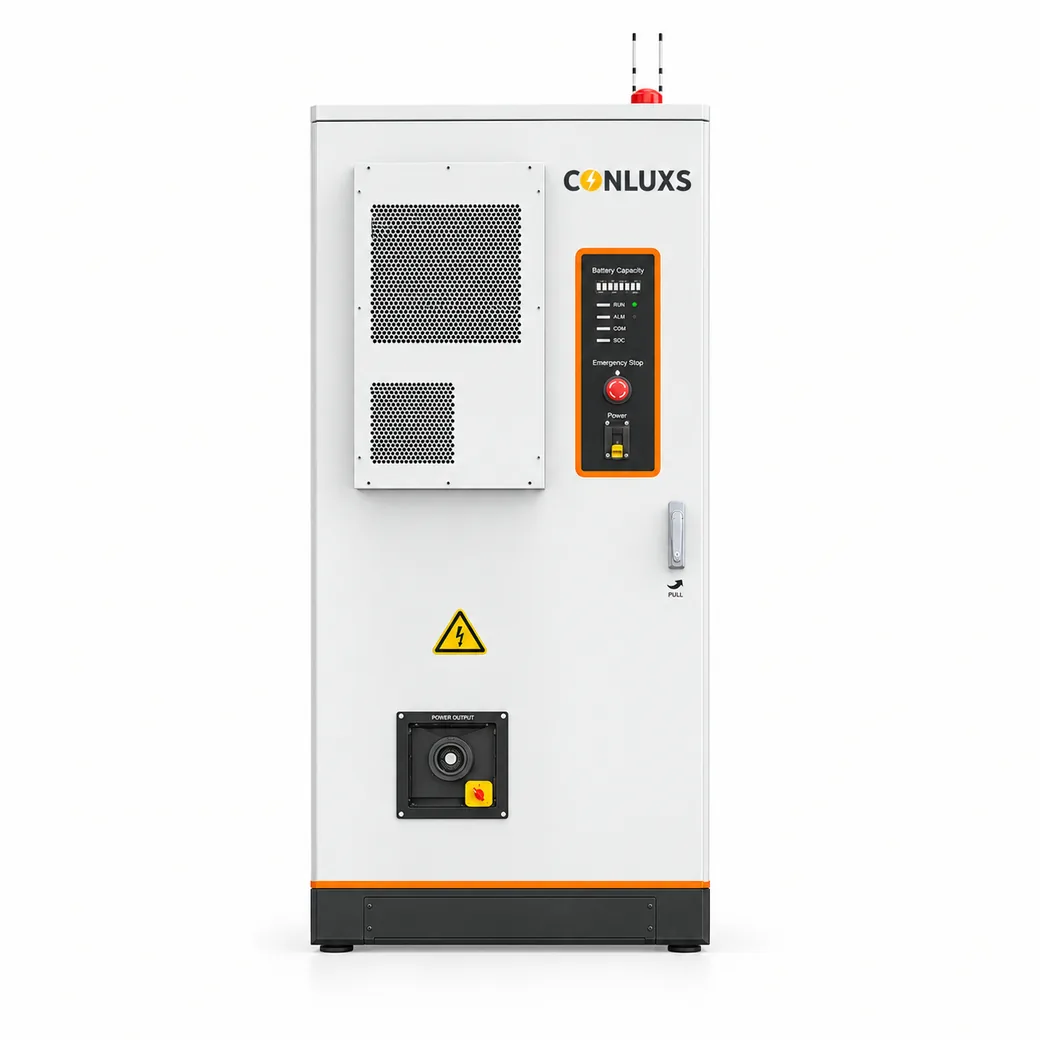

The CONLUXS MAXPOWER-100 is a 103 kWh high voltage commercial energy storage system that integrates 9 air-cooled battery packs, a 50 kW hybrid inverter, EMS, BMS, smart temperature control and fire protection in a single cabinet. It is an all-in-one distributed energy storage solution for remote schools, farms, islands and villas. An intelligent thermal management system keeps the temperature difference within 5°C, while multi-level safety protection and linked BMS/EMS control support safe high voltage battery operation in off-grid, micro-grid and grid-connected modes.
Key Performance Specifications
Key Technical Highlights
- All-In-One Design: 103 kWh battery, 50 kW hybrid inverter, EMS and BMS in a compact 1.21 m² footprint.
- Plug-and-Play Expansion: Parallel expansion covering 50 kW–300 kW for growing project needs.
- Smart Thermal Management: System temperature difference within 5°C to extend battery cycle life.
- Multi-Level Safety: Linked BMS and EMS protection with early thermal-runaway warning and fire suppression.
- Cloud-Based EMS: Remote and local monitoring with smart operation and maintenance.
- Multiple Modes: Off-grid, grid-connected and virtual power plant (VPP) operation.
What Is It
MAXPOWER-100 is a 103 kWh all-in-one high voltage energy storage system integrating a 50 kW hybrid inverter, EMS and BMS in a compact IP54 cabinet.
Key Applications
Remote schools and farms, islands, villas, off-grid and micro-grid power, and small commercial peak shaving.
Engineering Advantages
| Advantage | Description |
|---|---|
| Safety | Multi-dimensional sensing, early thermal-runaway warning and linked BMS/EMS protection. |
| Minimalist Design | All-in-one modular cabinet with a compact footprint and plug-and-play expansion. |
| Intelligent | Cloud-based monitoring, smart balancing and early-warning across the battery lifecycle. |
| Thermal Precision | Intelligent thermal management with ≤5°C temperature difference. |
| Cost Efficiency | Factory pre-assembly reduces transportation and commissioning costs. |
| Scalability | 50 kW–300 kW parallel expansion for changing energy demands. |
Technical Specifications
| Item | Specifications |
|---|---|
| Model | MAXPOWER-100 |
| PV Input - Maximum input power | 50 kW |
| PV Input - Starting voltage | 200 V |
| PV Input - PV maximum voltage | 1000 Vdc |
| PV Input - PV rated voltage | 630 Vdc |
| PV Input - MPPT operating voltage range | 200–850 Vdc |
| PV Input - MPPT quantity | 4 |
| PV Input - Input channels per MPPT | 2 |
| PV Input - Max input current (each MPPT) | 30A×4 |
| PV Input - Max short-circuit current (each MPPT) | 40A×4 |
| ESS - Nominal energy | 103 kWh |
| ESS - Nominal voltage | 691.2 Vdc |
| ESS - Battery voltage range | 604.8–777.6 Vdc |
| ESS - Rated charge/discharge current | 75 A |
| ESS - Max charge/discharge current | 90 A |
| AC Output - Rated output power | 50 kW |
| AC Output - Rated input power | 50 kW |
| AC Output - Maximum output current | 75 A |
| AC Output - Rated voltage | 3L/N/PE; 400V |
| AC Output - Off-grid switching time | <20 ms |
| AC Output - Grid frequency | 50 Hz / 60 Hz |
| AC Output - Voltage THD | <3% @rated power & linear load |
| Mechanical - Net weight | 1480 kg (gross with packaging 1570 kg) |
| Mechanical - Overall dimension | 960×1650×2245 (W×D×H mm) |
| Mechanical - Package size | 1030×1720×2400 (W×D×H mm) |
| Mechanical - Communication | RS485, Ethernet, 4G |
| Environment - Operating temperature | -20°C to 50°C (derate above 45°C) |
| Environment - Storage temperature | -20°C to 45°C |
| Environment - Relative humidity | 5–95% RH, no condensation |
| Environment - Altitude | 3000 m (derate above 2000 m) |
| Environment - Protection grade | IP54 |
| Environment - Battery certification | IEC 62619, IEC 61000, UN 38.3 |
| Environment - Inverter certification | IEC 61000, IEC 62477, IEC 62109, EN 50549-1 |
Frequently Asked Questions
What is the capacity of the MAXPOWER-100?
103 kWh at 691.2 Vdc nominal, with a 604.8–777.6 Vdc battery voltage range.
What inverter is included?
A 50 kW hybrid inverter with up to 50 kW PV input and 4 MPPTs.
Can the system be expanded?
Yes, plug-and-play parallel expansion covers a power range of 50 kW–300 kW.
What modes does it support?
Grid-connected, off-grid, micro-grid and virtual power plant (VPP) operation.
Is the MAXPOWER-100 certified?
The battery meets IEC 62619, IEC 61000 and UN 38.3; the inverter meets IEC 61000, IEC 62477, IEC 62109 and EN 50549-1.
