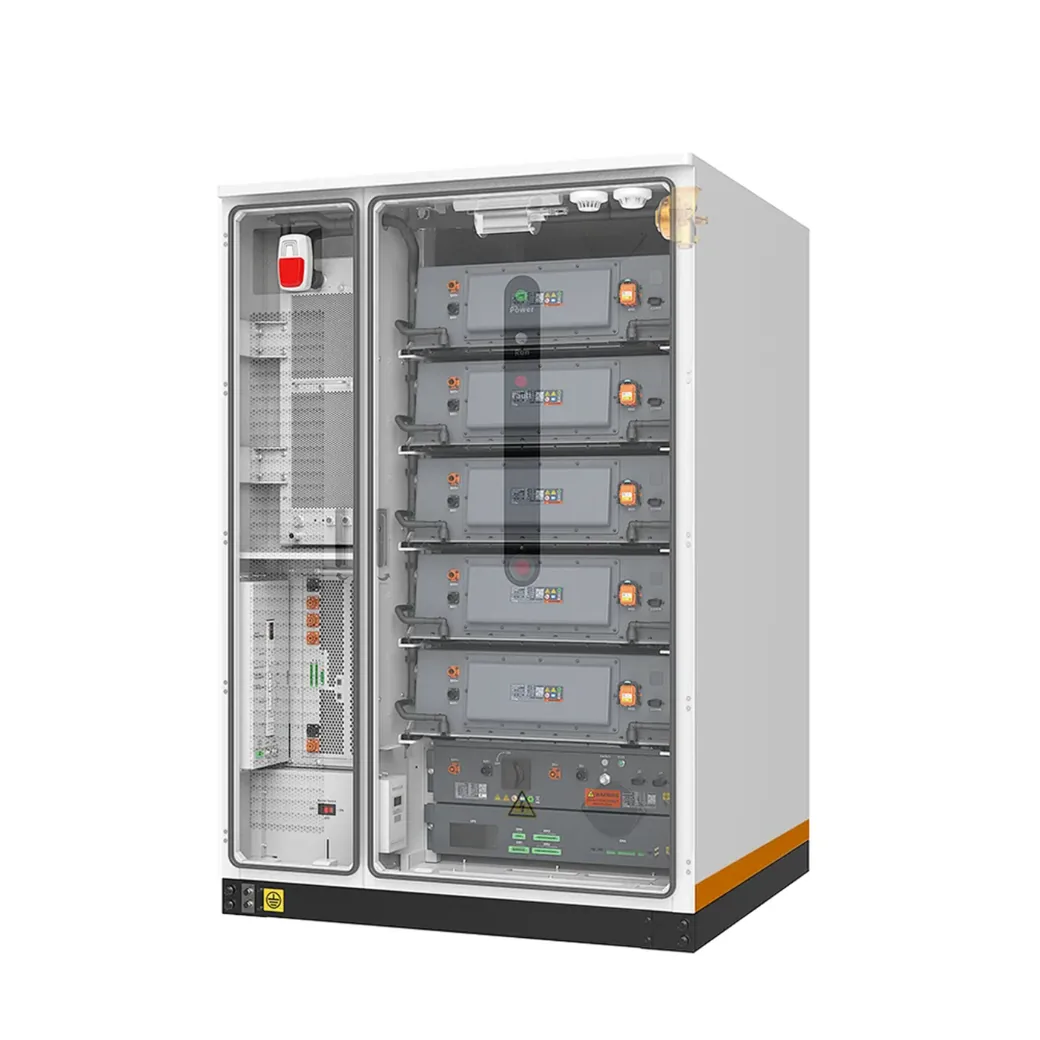

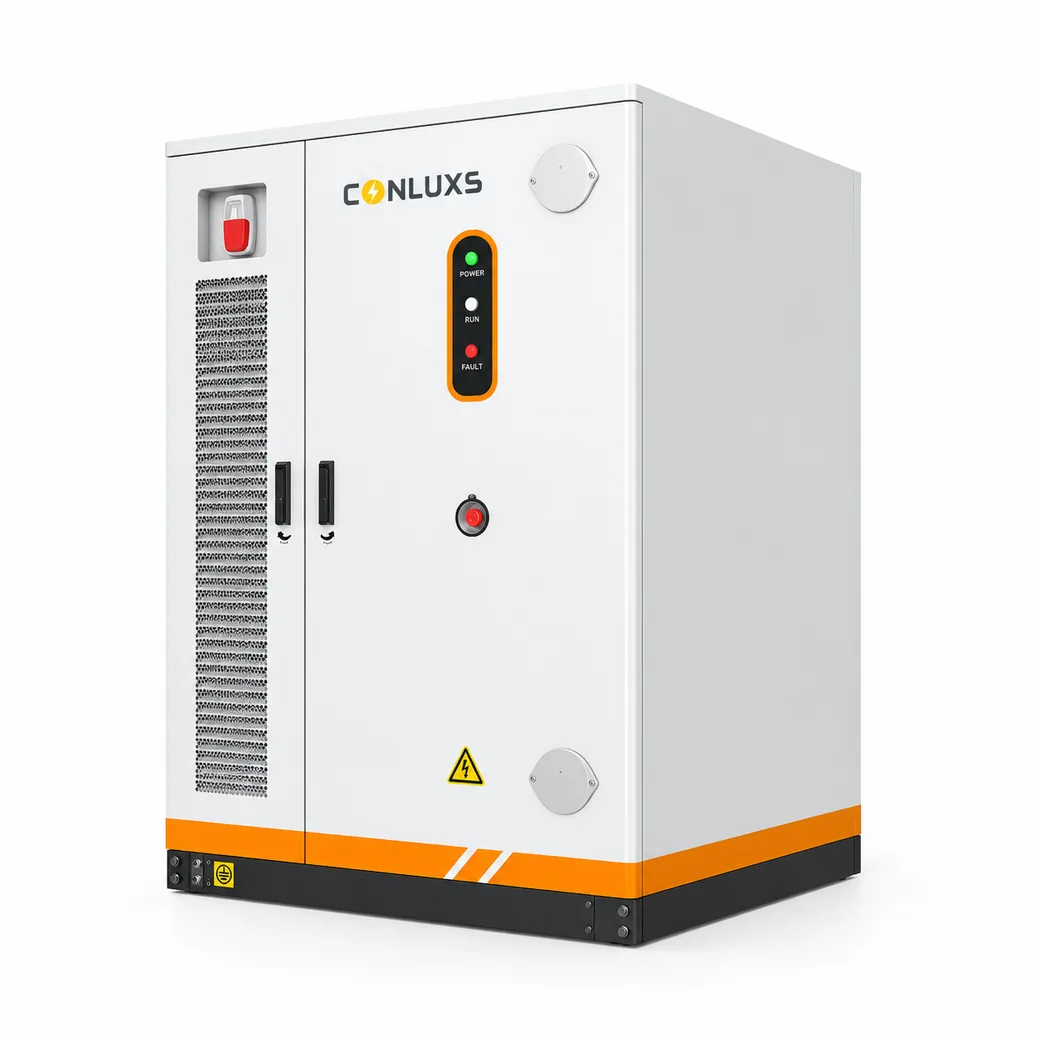

MAXPOWER-261 261 kWh Liquid Cooling Battery Storage System
261 kWh all-in-one liquid-cooled high voltage battery storage system with PCS, BMS, EMS and advanced fire protection for C&I and utility projects.
CONLUXS MAXPOWER-261 · 261.248 kWh · 832 Vdc · 125 kW PCS · smart liquid cooling
Product Overview
The CONLUXS MAXPOWER-261 is an all-in-one liquid-cooled energy storage system designed for commercial and industrial energy storage and utility-scale battery storage projects. It integrates a 261 kWh high voltage battery pack, PCS, BMS, EMS and an advanced liquid cooling and fire protection system. Precise thermal control keeps the cell temperature difference within 2.5°C to extend battery life, while early thermal runaway warning, gas detection and automatic fire suppression strengthen safety. The system operates as a high voltage DC power supply for grid-tied, off-grid and micro-grid applications, including virtual power plants and renewable energy integration. Factory-prefabricated modular construction reduces installation and commissioning costs, and cloud-based monitoring with AI-driven predictive maintenance lowers O&M complexity.
Key Performance Specifications
Key Technical Highlights
- Precision Liquid Cooling: Cell temperature difference within 2.5°C for longer, stable battery life.
- All-In-One Integration: Battery, PCS, BMS and EMS in a single factory-prefabricated cabinet.
- Multi-Layer Fire Protection: Early thermal-runaway warning, gas detection and automatic fire suppression.
- Grid & Off-Grid Ready: Grid-tied, off-grid and micro-grid operation, including VPP participation.
- Cloud + AI O&M: Cloud monitoring with AI-driven predictive maintenance to lower O&M cost.
- Outdoor Rated: C4 anti-corrosion, IP54 system protection with battery compartment at IP55.
What Is It
MAXPOWER-261 is a 261 kWh all-in-one liquid-cooled high voltage battery storage system with 125 kW PCS, BMS, EMS and advanced fire protection.
Key Applications
Commercial and industrial energy storage, utility-scale battery storage, micro-grids, renewable integration and virtual power plants.
Engineering Advantages
| Advantage | Description |
|---|---|
| Thermal Precision | Smart liquid cooling holds cell temperature difference within 2.5°C. |
| All-In-One | Integrated battery, PCS, BMS and EMS in one prefabricated cabinet. |
| Safety | Early warning, gas detection and automatic fire suppression. |
| High Voltage DC Supply | Grid-tied, off-grid and micro-grid operation with VPP participation. |
| Low O&M | Cloud monitoring and AI-driven predictive maintenance. |
| Durability | C4 anti-corrosion and IP54 (battery IP55) outdoor protection. |
Technical Specifications
| Item | Specifications |
|---|---|
| DC - Cell type | LFP 3.2V 314Ah |
| DC - Rated capacity | 261.248 kWh |
| DC - Nominal voltage | 832 Vdc (728–936 Vdc) |
| DC - Charge/discharge rate | ≤0.5C |
| DC - Cooling method | Smart liquid cooling |
| AC (Grid) - Rated power | 125 kW |
| AC (Grid) - Grid voltage | 400V (-10%~10%) |
| AC (Grid) - Rated current | 180 A |
| AC (Grid) - Rated frequency | 50 Hz / 60 Hz |
| AC (Grid) - Frequency range | 45–55 Hz / 55–65 Hz |
| AC (Grid) - Current THD | <3% (rated power) |
| AC (Grid) - Power factor | >0.99 (rated power) |
| AC (Grid) - Power factor range | -1 (leading) ~ 1 (lagging) |
| AC (Off-grid) - Voltage | 400V (-5%~5%) |
| AC (Off-grid) - Frequency | 50 Hz / 60 Hz |
| AC (Off-grid) - Output voltage THD | <3% (linear load) |
| System - Cooling | Liquid cooling |
| System - Fire protection | Aerosol + water firefighting (optional) |
| System - Anti-corrosion grade | C4 |
| System - Protection grade | IP54 (battery compartment IP55) |
| System - Operating temperature | -20°C to +45°C |
| System - Storage temperature | -20°C to +35°C (≤6 months) / -20°C to +45°C (≤1 month) |
| System - Working humidity | 0–95% RH, no condensation |
| System - Installation | Outdoor installation |
| System - Working conditions | Max 2 charges and 2 discharges per day |
| System - Communication interface | Ethernet |
| System - Protocol | Modbus TCP / IEC 104 |
| System - Altitude | <4000 m (derate above 2000 m) |
| System - Dimension (W*D*H) | 1350×1326×2080 mm |
| System - Weight | 2490 kg (+5%) |
| System - Certification | IEC 62619, IEC 60730, IEC 61000, IEC 62477, EN 50549, VDE 4105, VDE 4110, VDE 4120, UN 38.3, UN 3480 |
Frequently Asked Questions
What is the capacity of the MAXPOWER-261?
261.248 kWh at 832 Vdc nominal (728–936 Vdc range), rated at 125 kW.
How is the MAXPOWER-261 cooled?
Smart liquid cooling keeps the cell temperature difference within 2.5°C.
What cells does it use?
LFP 3.2V 314Ah cells with a charge/discharge rate up to 0.5C.
Where can it be installed?
Outdoor installation with C4 anti-corrosion and IP54 (battery IP55) protection.
Is the MAXPOWER-261 certified?
IEC 62619, IEC 60730, IEC 61000, IEC 62477, EN 50549, VDE 4105/4110/4120, UN 38.3 and UN 3480.
