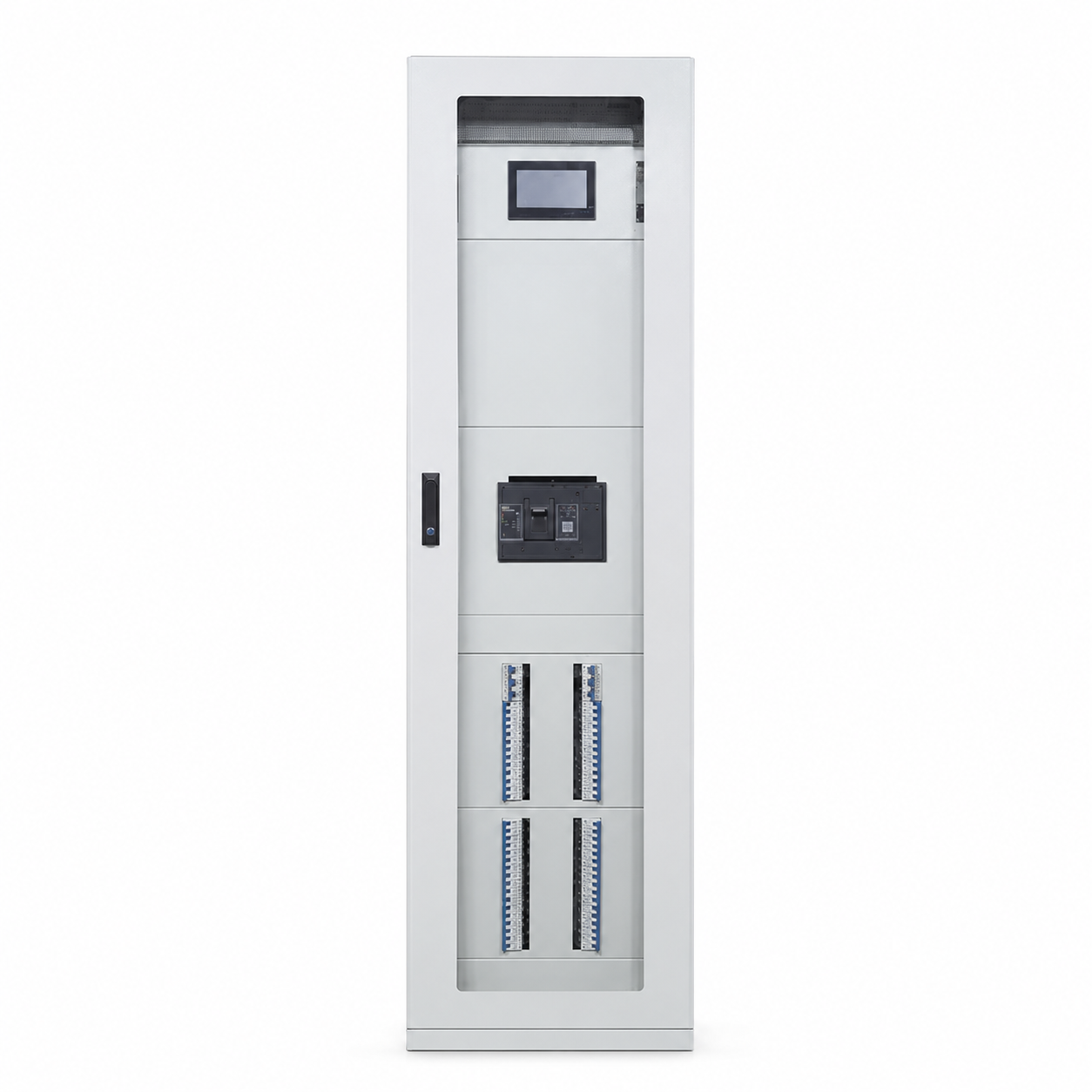

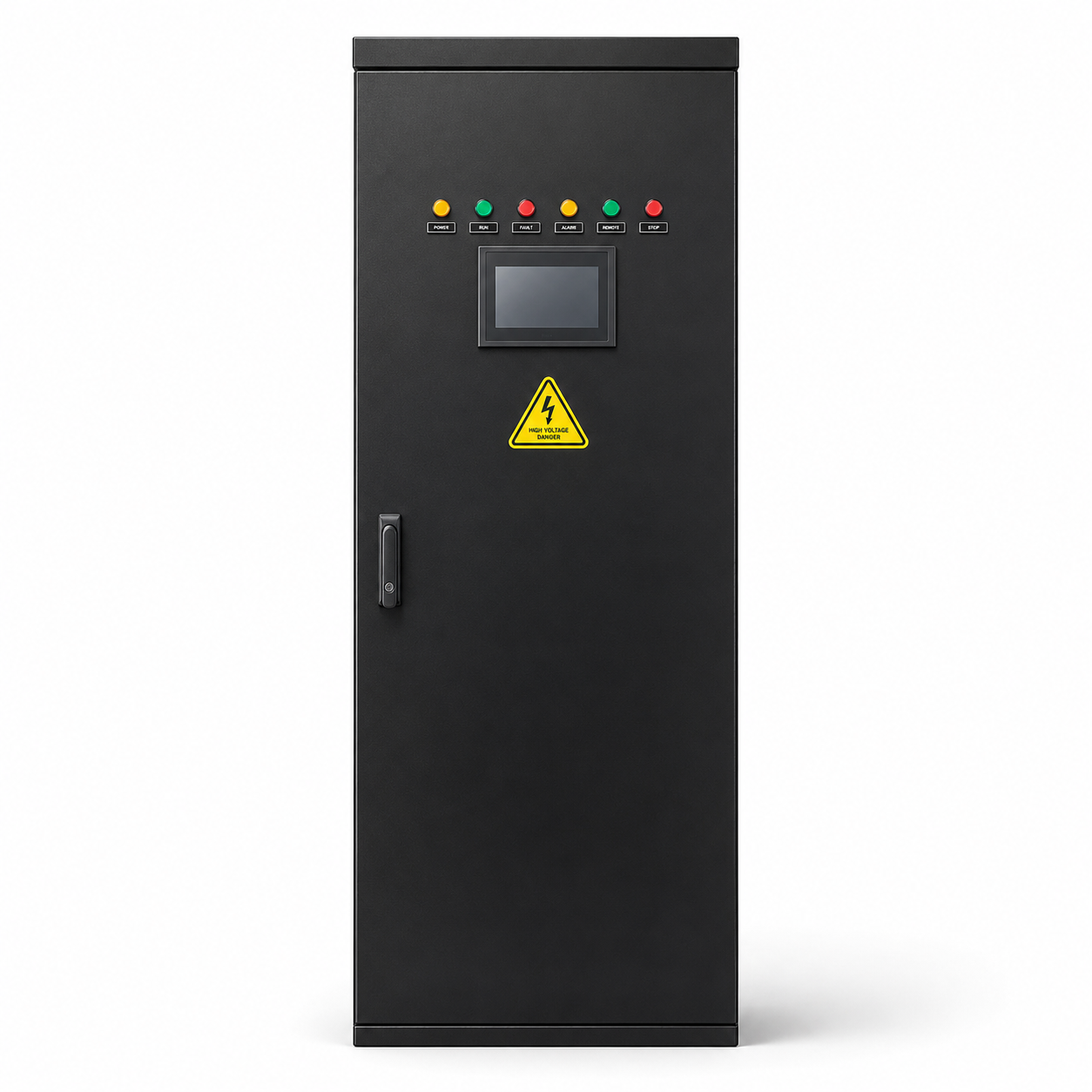

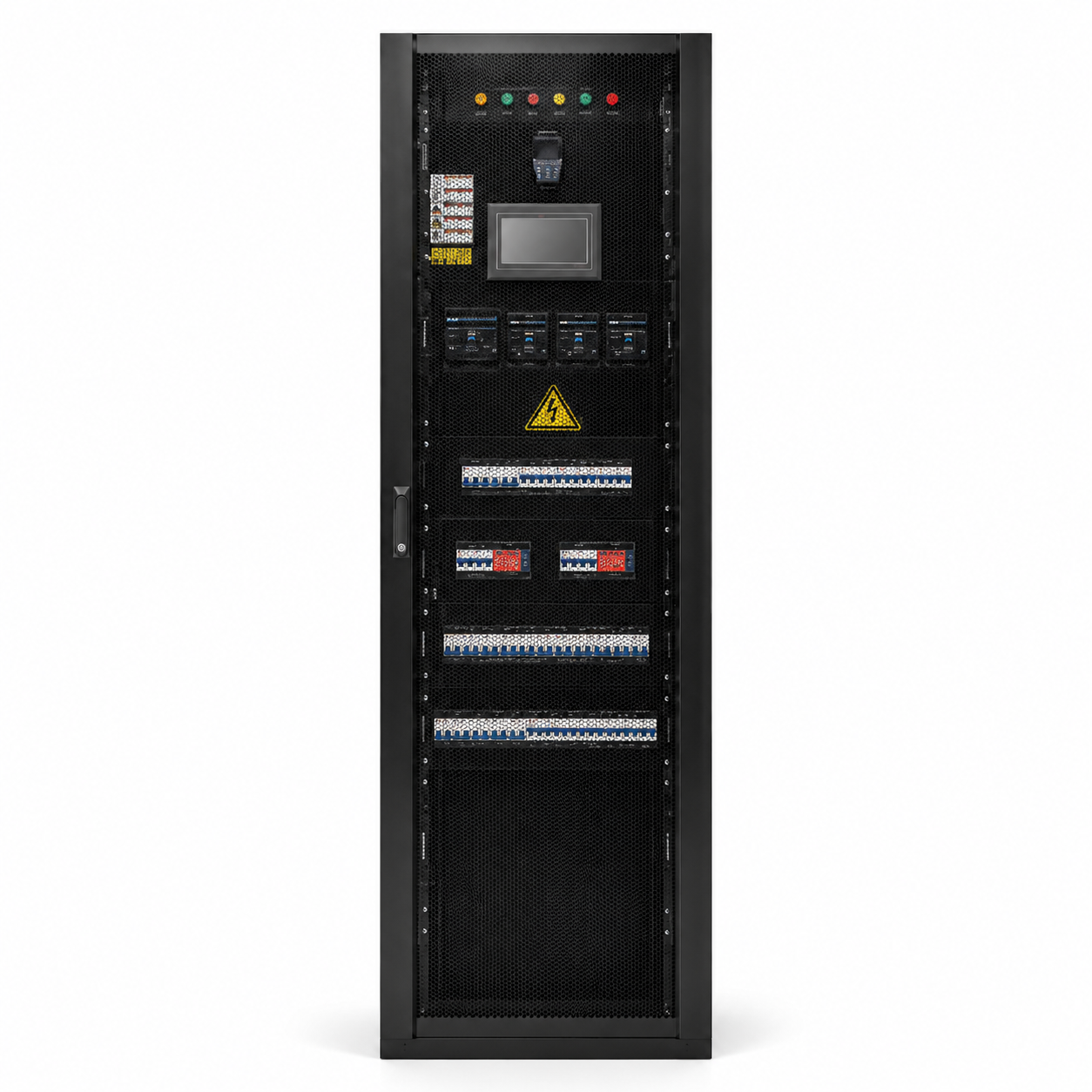

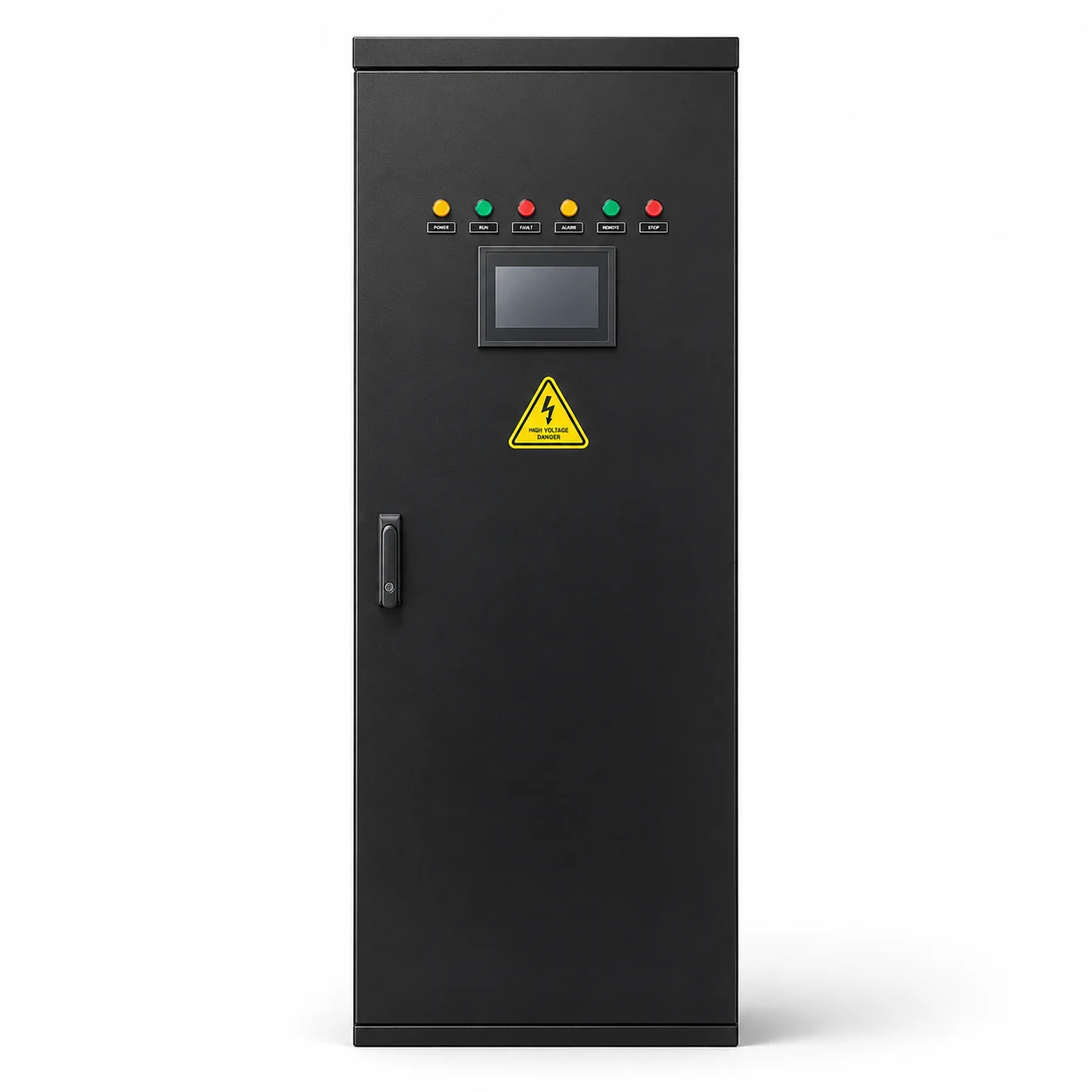

Precision Distribution Cabinet (K-SPM Series)
Intelligent, High-Precision Energy Management for Modern Data Centers.
Conluxs K-SPM Series · Precision Architecture · Intelligent Management
Product Overview
Designed to meet the rigorous demands of modern, intelligent data centers, the Conluxs K-SPM Series Precision Distribution Cabinet represents the next generation of power infrastructure. By integrating comprehensive electrical monitoring, including main/branch input, output, power, frequency, and isolation into a single, unified architecture, the K-SPM enhances the reliability, manageability, and availability of mission-critical power systems, enabling precise cost allocation for data center operations. As a facility-level precision power distribution platform, the K-SPM supports efficient data center power distribution across power rooms and network equipment zones. In the data center power path, precision distribution sits between the UPS system and the row-level distribution layer: facility-level low voltage switchgear supplies the power path, UPS feeder cabinets carry protected power from the UPS output toward the precision distribution layer, and the K-SPM Series cabinet then manages controlled, monitored branch distribution for power rooms and network equipment zones. For row-level and rack-level remote power distribution downstream of this facility layer, see the remote power panels (RPP) solutions and rack PDU systems.
Target Applications: Small-to-Midsize Data Centers, Enterprise Branch Offices, and Banking Network Outlets. Power Distribution for Network, Telecommunications, and Automated Control Systems.
Technical Highlights & Value Propositions
- High Reliability: Features world-class circuit breakers (Schneider, ABB, Siemens). Enhanced safety through shielded busbars and cables, leaving only operating handles exposed.
- High Scalability: Modular design supports up to 8 modules per 2000mm cabinet (21 poles per module). Supports online hot-swappable module replacement and phased investment through flexible configuration.
- Intelligent Management: Core DSP-driven control ensures rapid data processing for mission-critical oversight. Features a 7-inch full-color touchscreen HMI supporting dual-language navigation for main/branch electrical parameters and real-time load analytics.

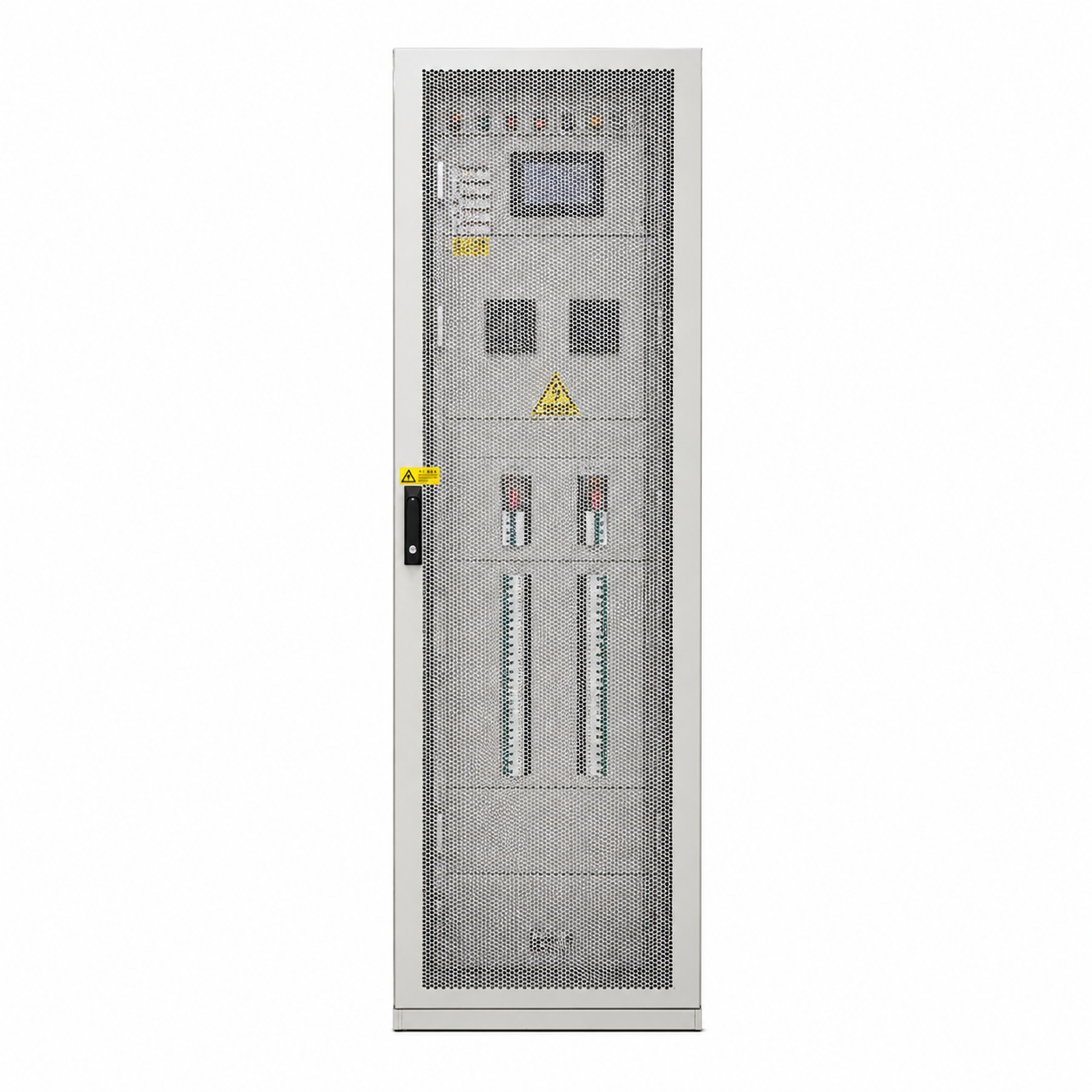

- Robust Structural Design: Built to international server rack standards with a load capacity exceeding 1400kg. Optimized airflow via perforated doors (>65% open area) and modular maintenance access on all sides.
Engineering Advantages
| Advantage | Description |
|---|---|
| 1400Kg Load Capacity | Built to international server rack standards with structural integrity exceeding 1400kg, supporting heavy internal equipment — transformers, UPS modules, and distribution arrays without compromise. |
| Hot-Swappable | Modular design supports up to 8 modules per 2000mm cabinet with online hot-swappable module replacement. Enables phased investment and zero-downtime maintenance without interrupting operating circuits. |
| DSP-Driven Monitoring | Core DSP-driven control ensures rapid data processing for mission-critical oversight. 7-inch full-color touchscreen HMI with dual-language navigation delivers real-time visualization of all electrical parameters including harmonics, PF, energy, and load ratios. |
| Safety & Maintenance | Comprehensive grounding system, optional OBO surge protection, and busbar/transformer temperature monitoring ensure a zero-risk operational environment. |
| Smart Alert & Logging | Advanced audible/visual alarm system for input/branch anomalies with a 1,000-event historical log for forensic analysis and proactive maintenance planning. |
| Energy Optimization | Granular sub-metering allows for monthly and time-based energy consumption auditing, essential for PUE management and operational cost allocation. |
| Load Priority Control | Integrated time-based load shedding and automatic restoration functions ensure critical systems remain powered during emergency utility scenarios. |
| Industrial Durability | All metallic components undergo professional anti-corrosion/spray coating treatments in compliance with SSPC standards, ensuring structural integrity and longevity. |
Precision Distribution in Data Center Power Architecture
In a typical data center power path, facility-level low voltage switchgear distributes utility and generator power to the UPS system. UPS feeder cabinets carry protected power from the UPS output toward the precision distribution layer. The K-SPM Series precision distribution cabinet then manages controlled, monitored branch distribution for power rooms and network equipment zones. Downstream, remote power panels and rack PDU systems deliver row-level and rack-level power closer to the IT loads.
For high-density facilities where large-capacity trunking is preferred between the distribution layer and rows, a busway distribution architecture can be considered as an alternative path within the same overall design.
Typical Downstream Power Path
- UPS feeder cabinets
- Precision distribution cabinet (K-SPM Series)
- Remote power panels (RPP)
- Rack PDU systems
K-SPM Series Specifications
| Attribute | Detail |
|---|---|
| Product Series | Conluxs K-SPM Series Precision Distribution Cabinet |
| Structural Load Capacity | Exceeds 1400 kg; built to international server rack standards |
| Modularity | Up to 8 modules per 2000 mm cabinet; 21 poles per module; online hot-swappable module replacement |
| Monitoring & Control | DSP-driven control; 7-inch full-color touchscreen HMI with dual-language navigation; real-time visualization of main/branch electrical parameters, harmonics, power factor, energy, and load ratios |
| Circuit Breakers | Schneider, ABB, Siemens |
| Safety Features | Shielded busbars and cables with only operating handles exposed; optional OBO surge protection; busbar/transformer temperature monitoring; audible/visual alarm system; 1,000-event historical log |
| Enclosure & Ventilation | Perforated doors with >65% open area; modular maintenance access on all sides |
| Energy Management | Granular sub-metering for monthly and time-based energy auditing; PUE management support; time-based load shedding with automatic restoration |
| Finishing | Anti-corrosion/spray coating treatment in compliance with SSPC standards |
Precision Distribution vs. RPP vs. Rack PDU
| Layer | Typical Role in the Power Path | Typical Placement |
|---|---|---|
| Precision Distribution Cabinet (K-SPM Series) | Facility-level controlled and monitored branch distribution between the UPS output and row/rack layers; supports main/branch monitoring, load analytics and cost allocation | Data center power room / network equipment zones |
| Remote Power Panel (RPP) | Row-level remote distribution downstream of the facility layer, delivering power closer to IT rows with per-circuit visibility | Row / zone level near IT rows |
| Rack PDU | Rack-level power distribution at the IT rack, providing the final distribution point for server equipment | Inside or beside the IT rack |
These layers serve different stages of the same power path: precision distribution manages the facility layer, RPP manages row-level distribution, and rack PDU systems manage rack-level distribution. Selection depends on facility scale, row layout, and monitoring requirements.
Frequently Asked Questions
What is a precision distribution cabinet?
A precision distribution cabinet is a facility-level power distribution cabinet that combines controlled branch distribution with comprehensive electrical monitoring in a single architecture. The Conluxs K-SPM Series is designed for modern data center power rooms, integrating main/branch input, output, power, frequency, and isolation monitoring to support reliable, manageable mission-critical power systems.
How does precision distribution connect with UPS systems?
In the data center power path, UPS feeder cabinets carry protected power from the UPS system toward the precision distribution layer. The K-SPM Series precision distribution cabinet then manages controlled, monitored branch distribution downstream of this UPS feed, within the facility distribution chain supplied by upstream low voltage switchgear.
What is the difference between RPP and precision distribution?
The two products serve different layers of the same power path. Precision distribution operates at the facility level, managing controlled and monitored branch distribution for power rooms and network equipment zones. Remote power panels (RPP) operate downstream, providing row-level remote distribution closer to IT rows with per-circuit visibility.
How does precision distribution support data center rack power?
By providing controlled, monitored distribution at the facility layer, the K-SPM Series supports reliable power delivery toward row-level remote power panels and rack PDU systems. Its granular sub-metering and load analytics also support PUE management and precise cost allocation across the data center.
Where is the K-SPM Series typically deployed?
Typical deployments include small-to-midsize data centers, enterprise branch offices, and banking network outlets, as well as power distribution for network, telecommunications, and automated control systems.
What are the key mechanical specifications of the K-SPM precision distribution cabinet?
The cabinet supports a load capacity greater than 1400 kg, holds up to 8 configurable modules within a 2000 mm frame, and each module supports up to 21 poles, allowing branch distribution to be reconfigured as loads change.
Which circuit breakers are used in the K-SPM?
The K-SPM supports leading low-voltage circuit breaker brands including Schneider, ABB and Siemens, letting project teams standardize on their preferred protective devices.
