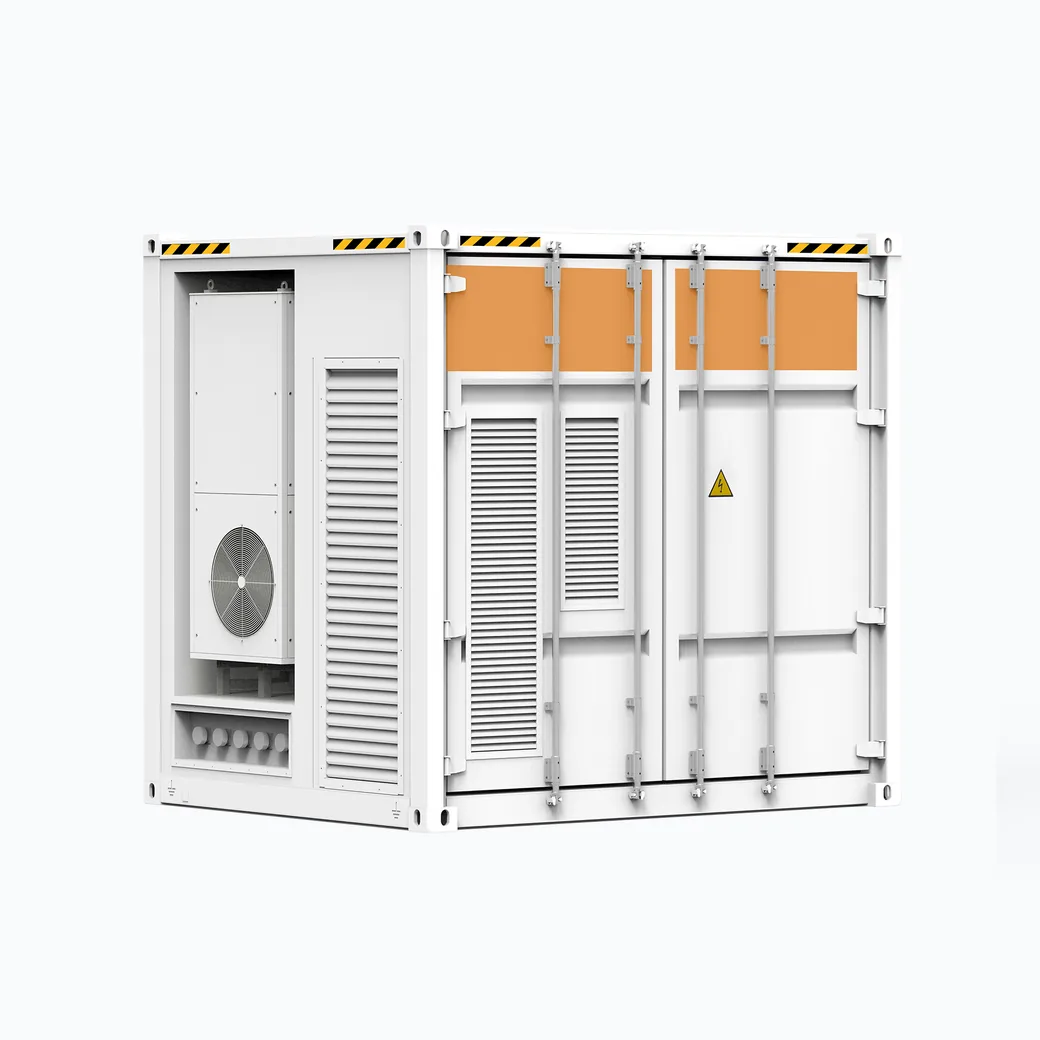

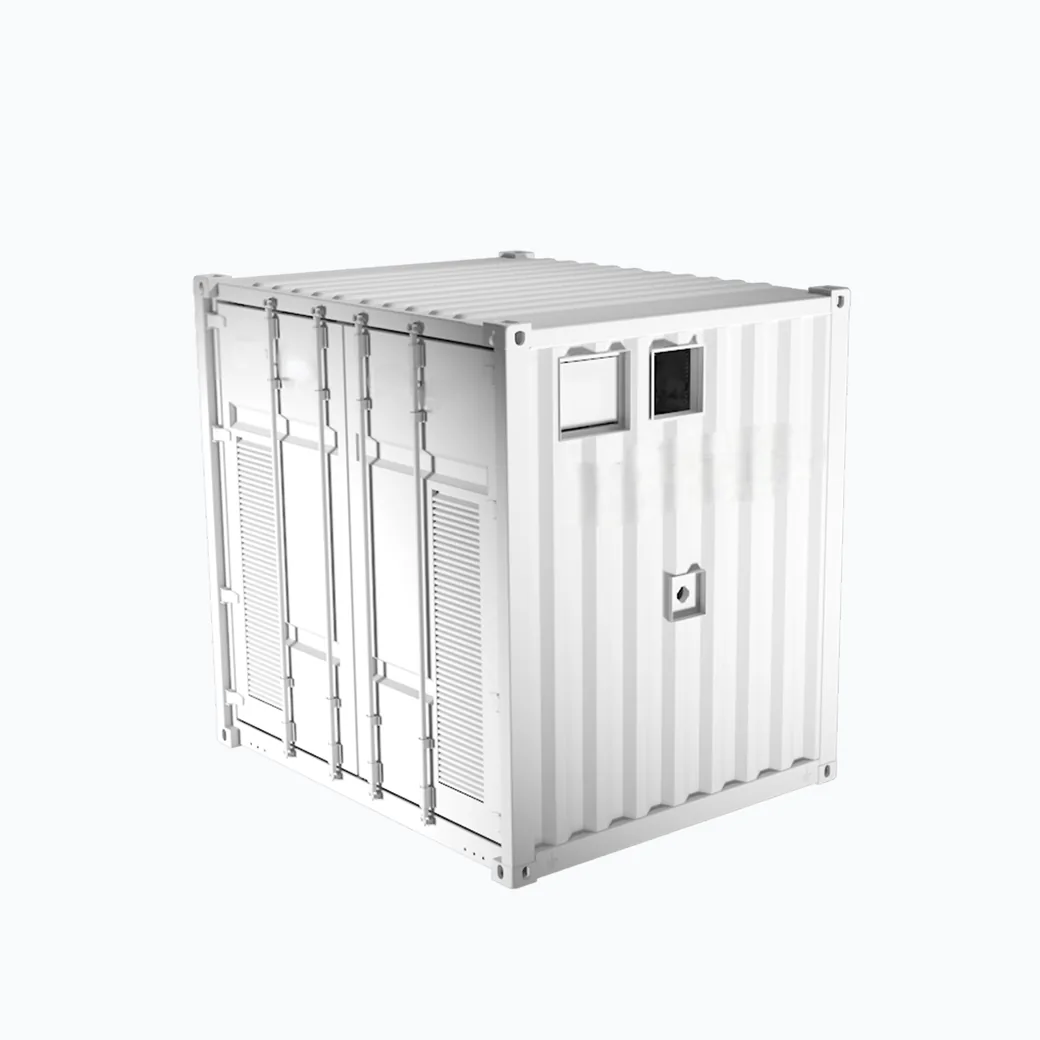

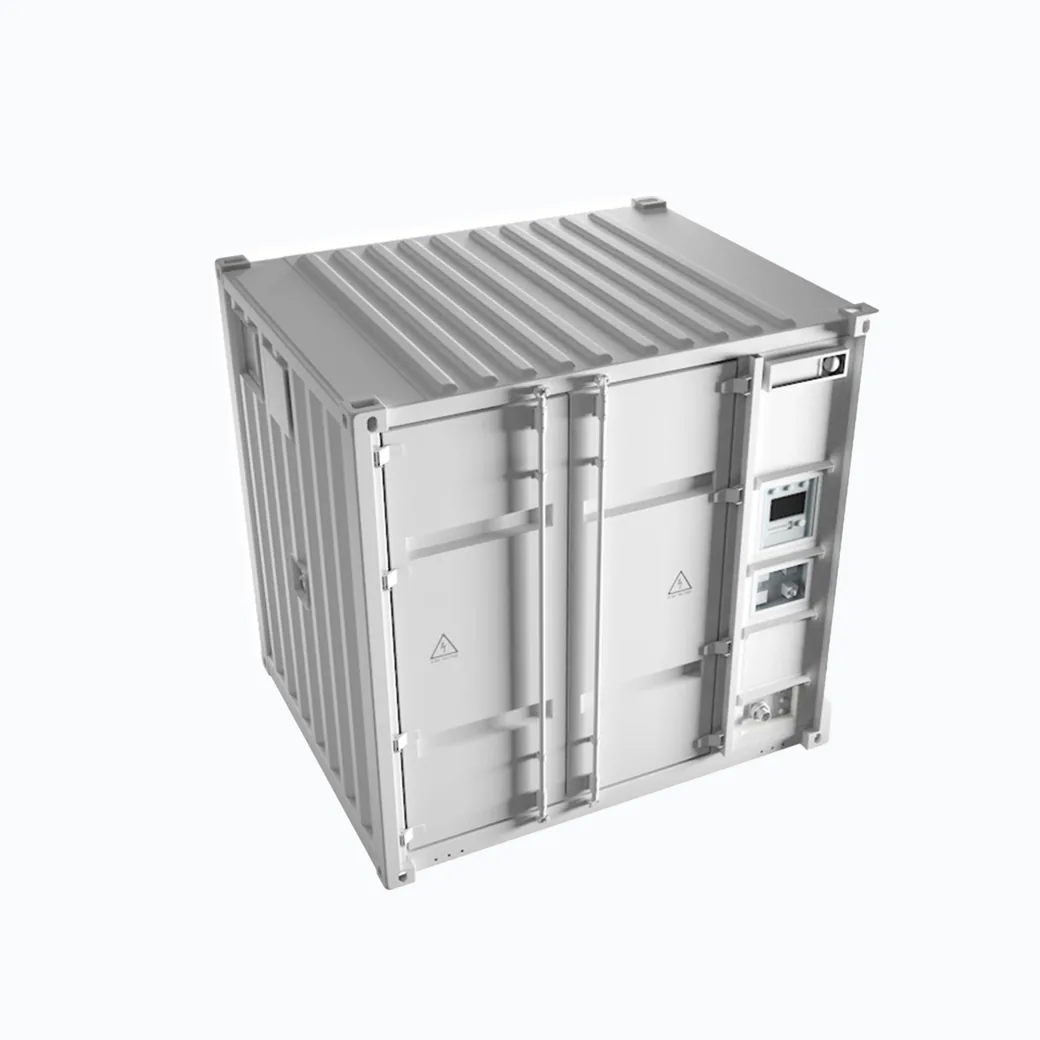

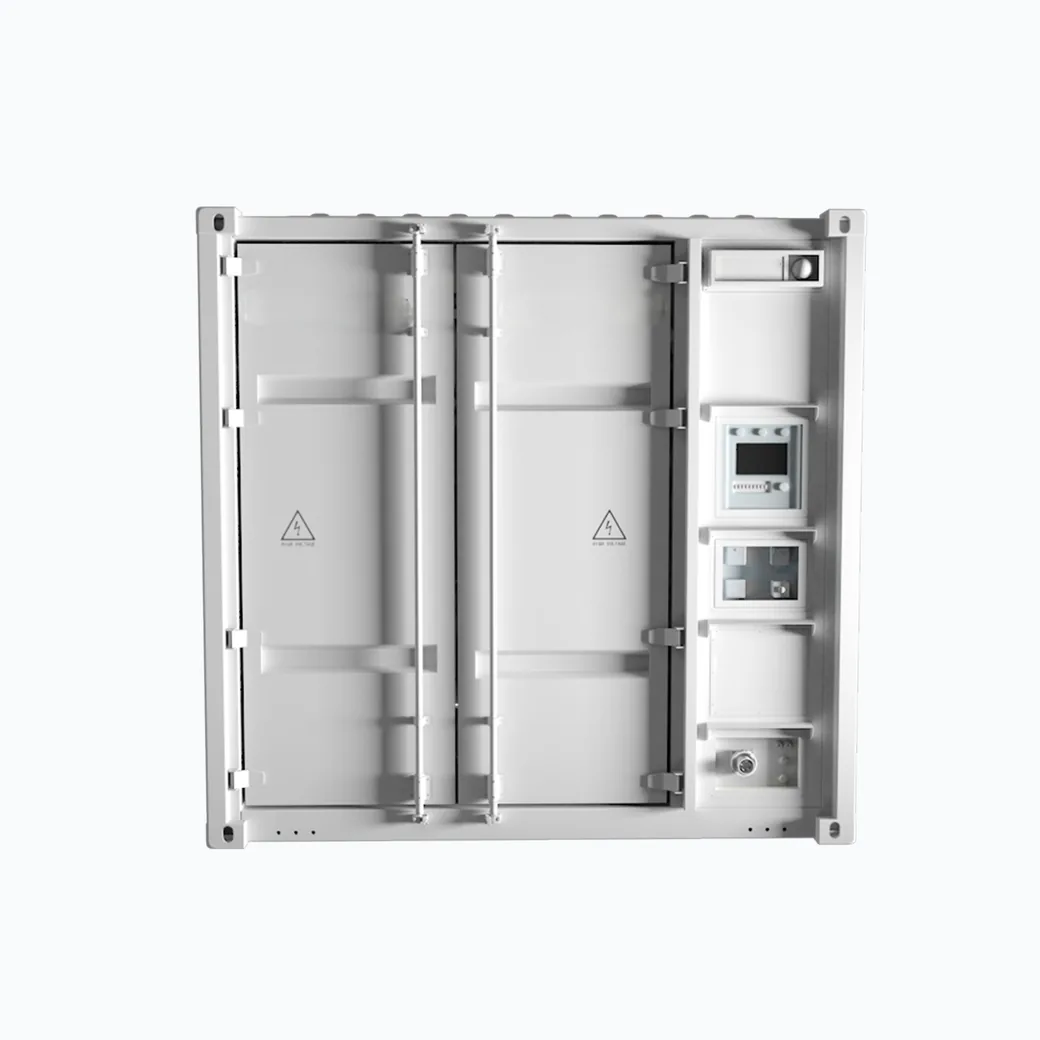

SUNO-1100 1.1 MWh High Voltage Battery Energy Storage System
1.1 MWh high voltage LiFePO4 battery energy storage cabinet with 64 modules, air conditioning and per-module aerosol protection for industrial ESS.
CONLUXS SUNO-1100 · 1.1 MWh · 314Ah LFP cells · 500 kW PCS · air cooling
Product Overview
The CONLUXS SUNO-1100 is a 1.1 MWh high voltage battery energy storage cabinet built from 64 battery modules, each module being 20 strings of 3.2V 314Ah Grade A prismatic LiFePO4 cells. The usable power is expanded as needed to match project requirements. The system is equipped with an air conditioner and each battery module is assembled with a cooling fan to extend battery life and improve overall performance. Safety is critical for large-scale battery storage, so each battery module is protected by its own aerosol extinguishing system, supported by full cell voltage monitoring, real-time insulation monitoring and big-data early warning.
Key Performance Specifications
Key Technical Highlights
- 1.1 MWh Capacity: High-energy cabinet for industrial and grid-scale deployments.
- 314Ah Cells: 64 modules of Grade A prismatic LiFePO4 cells with detailed temperature control.
- Per-Module Aerosol Protection: Each battery module is individually protected by aerosol extinguishing.
- Air Conditioning + Fans: Combined air conditioner and module fans for stable thermal performance.
- Intelligent Management: Smart thermal control, fault analysis and big-data early warning.
- Reliable Design: IP55 protection and -20°C to 50°C adaptability.
What Is It
SUNO-1100 is a 1.1 MWh high voltage LiFePO4 battery energy storage cabinet with 64 modules, air conditioning and per-module aerosol fire protection.
Key Applications
Industrial energy storage, solar-plus-storage, peak shaving, micro-grids and virtual power plants.
Engineering Advantages
| Advantage | Description |
|---|---|
| Highly Integrated | All-in-one design with high site utilization and fast deployment. |
| Easy to Expand | Modular build supporting 2h / 4h / 6h power configurations and kWh to MWh scaling. |
| Standardization | Factory pre-assembled for integrated, fast delivery. |
| Intelligent | Intelligent temperature control and operation & maintenance management. |
| Safety | Per-module aerosol extinguishing, 2h fireproof isolation and gas inspection. |
| Reliability | Wide temperature range, IP55 protection and cluster-level fault isolation. |
Technical Specifications
| Item | Specifications |
|---|---|
| Model | SUNO-1100 |
| DC Voltage Range | 594V–792V |
| Configuration | 1P220S |
| Rated Power | 500 kW |
| Match PCS | 500 kW |
| Nominal Energy | 1100 kWh |
| Upload Request Value | 5%–95% |
| Protection Value | 2.7V–3.6V |
| Discharge Energy | 1001 kWh |
| Cycle Efficiency | ≥90% @AC |
| IP Grade | IP55 |
| Temperature Range | -20°C to 50°C |
| Humidity Range | ≤95% (non-condensing) |
| Maximum Working Altitude | 3000 m (derate above 2000 m) |
| Temperature Control | Air cooling |
| Fire Fighting System | Aerosol |
Frequently Asked Questions
What is the capacity of the SUNO-1100?
1.1 MWh of rated energy (1100 kWh) with a 594V–792V DC voltage range.
What cells does the SUNO-1100 use?
64 battery modules of 20 strings, each with 3.2V 314Ah Grade A prismatic LiFePO4 cells.
How is the SUNO-1100 protected?
Per-module aerosol extinguishing, full cell voltage and insulation monitoring, plus big-data early warning.
Can the system be expanded?
Yes, power configuration can be expanded as needed to match project requirements.
What is the operating temperature range?
-20°C to 50°C with an IP55 protection grade.
