Precision Remote Power Panels (RPP)
Next-Generation High-Granularity Intelligent Terminal Distribution Featuring Hot-Swappable Phase-Balancing Frameworks.
What Is It
Precision Remote Power Panels (RPP) are floor-mounted cabinets that distribute power to rows of IT racks with per-breaker visibility. The CONLUXS NW Series combines branch circuit monitoring (BCM), a hot-swappable phase-balancing framework and an LCD touchscreen HMI in a W800 × H2000 × D800 mm, IP30 enclosure.
Key Applications
Data center server rows, enterprise IT rooms, colocation halls and high-density compute pods that need row-level power distribution with breaker-level monitoring.
Typical Solutions & Technical Specifications
NW Series · W800 × H2000 × D800 mm · IP30 · Transparent Explosion-Proof Glass Door
Model & Framework
NW Series · W800 × H2000 × D800 mm · IP30 Standard Protection · Transparent Explosion-Proof Glass Door
The NW Series Precision Remote Power Panels represent the advanced, data center-optimized application of our company's signature next-generation pre-engineered standard distribution platforms. It is custom-built to deliver high-granularity power management for critical server rows.
Advanced Technological Integration
This system integrates our latest proprietary R&D breakthroughs, significantly enhancing operational intelligence through:
- Advanced Multi-Circuit Branch Circuit Monitoring (BCM): High-precision real-time energy metering and power quality analytics for every individual breaker output.
- Hot-Swappable Breaker & Phase-Balancing Technology: Allows field technicians to safely plug, unplug, and dynamically adjust phases without shutting down adjacent server loads, maximizing zero-downtime flexibility.
- Large-Screen LCD Touchscreen HMI: Provides an intuitive, high-resolution on-site interface for instant alarm diagnostics, load curves, and system configuration.
Cohesive Data Center Aesthetics
Featuring the standard NW premium light gray enclosure, the cabinet seamlessly harmonizes with high-end cleanroom and server room architectural designs.
Operational Safety & Enclosure Engineering
- Dual-Barrier Explosion-Proof Safety Guard: The outer door is engineered with a transparent, fire-rated, and explosion-proof tempered glass shield. This dual-layer architecture delivers maximum impact and arc-flash protection for personnel while effectively blocking micro-particles and dust to drastically reduce preventative maintenance intervals.
- Heavy-Duty High-Load Structural Framework: Engineered with enhanced mechanical tensile strength and massive weight-bearing capacity, the chassis is fully optimized to support heavy, large-scale isolation transformers seamlessly.
- Superior Industrial-Grade Electrical Insulation: Delivers a significantly higher dielectric strength and robust electrical isolation boundaries compared to standard server-style rack enclosures, mitigating the risk of cross-phase short circuits.
- Custom Color Synchronization: To align perfectly with your networking and server rack configurations, the NW precision cabinet can be custom-finished in industrial matte black upon request, maintaining absolute aesthetic consistency across the hot/cold aisle containment.
Related Technical Articles
- UPS Feeder Cabinetdistributes protected UPS output into feeder branches
- Precision Distribution Cabinetfacility-side distribution for IT room layouts
- Rack PDUlast link in the chain inside the server rack
- Busway vs cable for high-density data centersoverhead distribution guidance between the feeder layer and the rack
- Rack PDU selection guidetechnical reference
- PDU price and procurementtechnical reference
Where an RPP Fits in Data Center Power Distribution

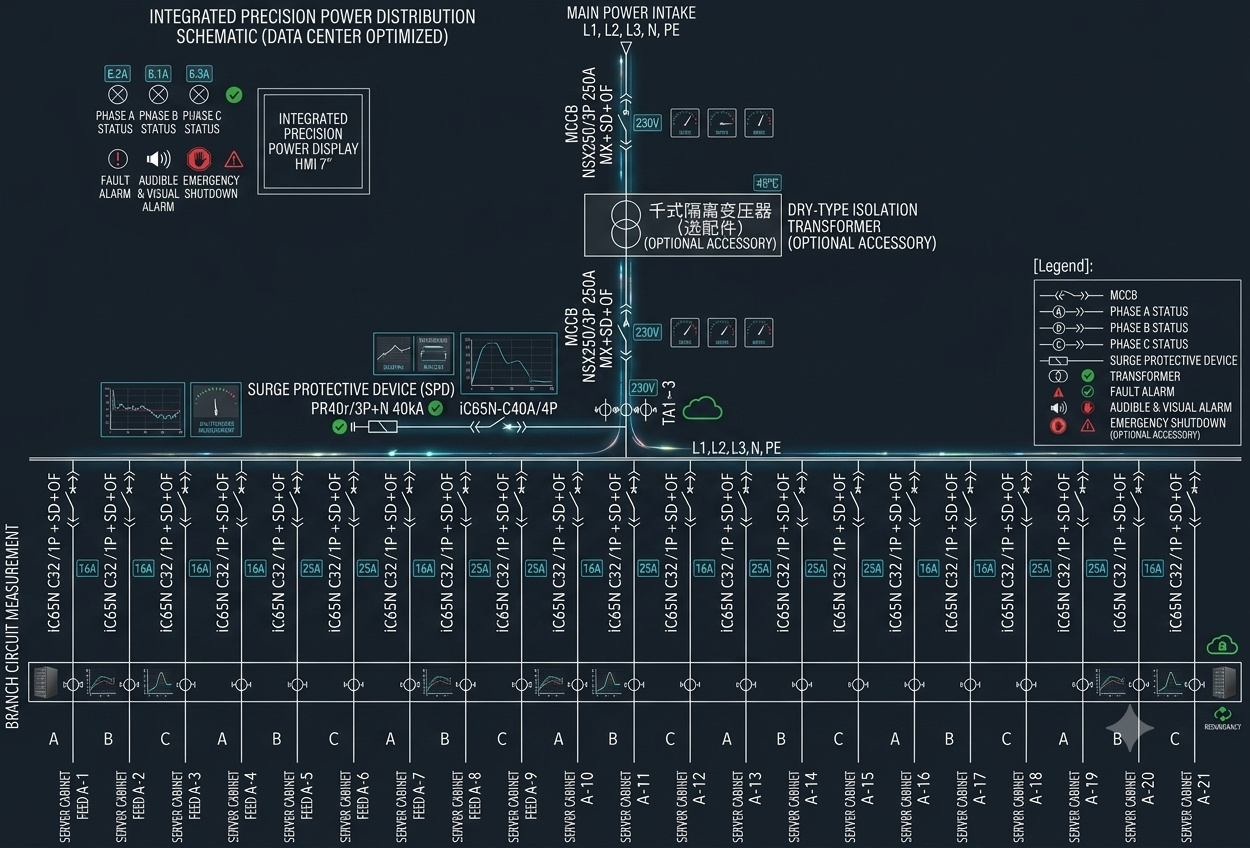

In a typical data center power chain, UPS output is distributed through an UPS feeder cabinet, then reaches the IT space through row-level and rack-level distribution. The Remote Power Panel (RPP) operates one layer upstream of the rack PDU: it terminates the room-level feed and delivers monitored, individually protected branches toward each row. Between the feeder layer and the rack, overhead delivery can also be handled by busway — see busway vs cable for high-density data centers for the comparison.
The full path is: UPS Feeder → RPP → Busway / Rack PDU → servers. By keeping the RPP at the row level, each row can be commissioned, metered and maintained independently while the rest of the critical power path stays online.
RPP vs UPS Feeder vs Rack PDU
| Layer | Role | Typical Location |
|---|---|---|
| UPS Feeder Cabinet | Distributes protected UPS output into multiple feeder branches with per-branch metering | Downstream of UPS output |
| Remote Power Panel (RPP) | Row-level terminal distribution with breaker-level BCM monitoring and hot-swappable branches | Between the feeder layer and the rack row |
| Rack PDU | Last link in the chain; feeds servers and network equipment inside the rack | Inside the server rack |
Choose each layer by its duty: the UPS feeder cabinet manages UPS output distribution, the RPP provides monitored row-level distribution, and the rack PDU terminates power inside each rack. A precision distribution cabinet is used when the room layout calls for facility-side distribution with a compact form factor.
Selecting an RPP for Your Project
- Enclosure footprint: NW Series is W800 × H2000 × D800 mm, sized for standard row-end or wall-adjacent deployment in IT rooms.
- Protection: IP30-rated enclosures suit indoor controlled environments where personnel do not require tool access to every enclosure opening.
- Monitoring depth: BCM delivers real-time energy metering of every breaker output, which supports capacity planning and per-tenant or per-row cost allocation.
- Serviceability: hot-swappable breaker and phase-balancing architecture lets maintenance proceed without shutting down adjacent server loads.
- Local visibility: the LCD touchscreen HMI provides alarm diagnostics and load curves at the cabinet, complementing remote monitoring.
- Finish and branding: custom colors are available, from the standard premium light gray to industrial matte black on request.
Frequently Asked Questions
What monitoring does it provide?
Branch Circuit Monitoring (BCM) for real-time energy metering of every breaker output.
What is the enclosure specification?
NW series, W800 × H2000 × D800 mm, IP30.
What HMI does it feature?
A large-screen LCD touchscreen HMI for alarm diagnostics and load curves.
Can breakers be replaced without shutting down the row?
Yes. The NW Series hot-swappable architecture supports breaker and phase-balancing maintenance without interrupting adjacent server loads.
Where does an RPP sit in the power chain?
Downstream of the UPS feeder layer and upstream of the rack PDU: UPS Feeder → RPP → Busway / Rack PDU.
What color and finish options are available?
Custom colors are available, from the standard premium light gray to industrial matte black on request.
Is the glass door explosion-proof?
Yes. The NW Series uses a transparent explosion-proof tempered glass door with a dual-barrier design for visible yet protected breaker access.
