What Is an Energy Management System (EMS)?

An Energy Management System (EMS) is the control and monitoring layer that collects operational data from power infrastructure and makes it visible to facility and engineering teams. In the CONLUXS architecture, the EMS sits between the equipment it monitors — BESS, battery, PV and UPS systems — and the electrical infrastructure that distributes power across commercial, industrial and data center applications. The CloudNet EMS Host is the hardware gateway that performs this data acquisition role on site, as a project-supplied monitoring appliance rather than a hosted software platform.

CloudNet EMS Overview

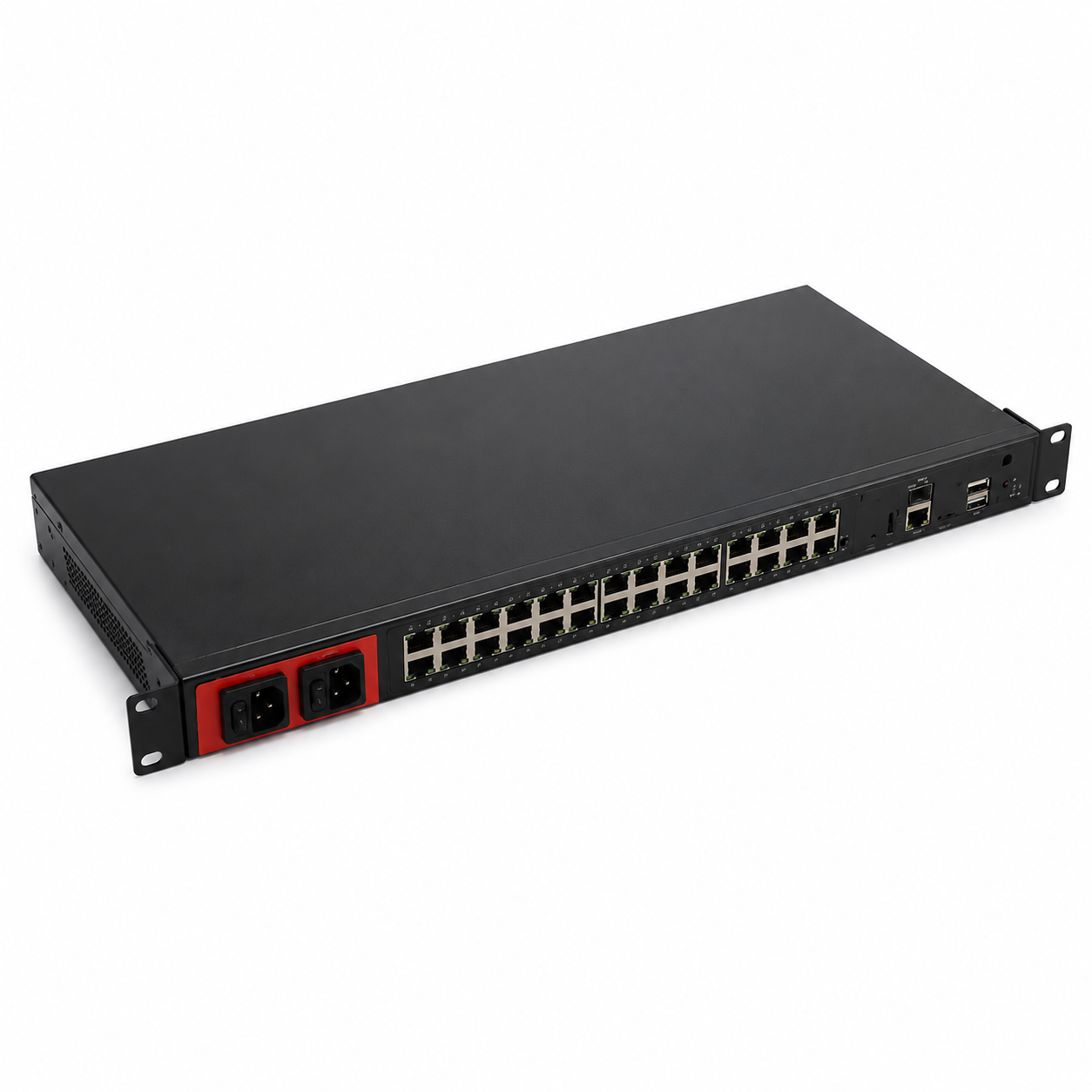

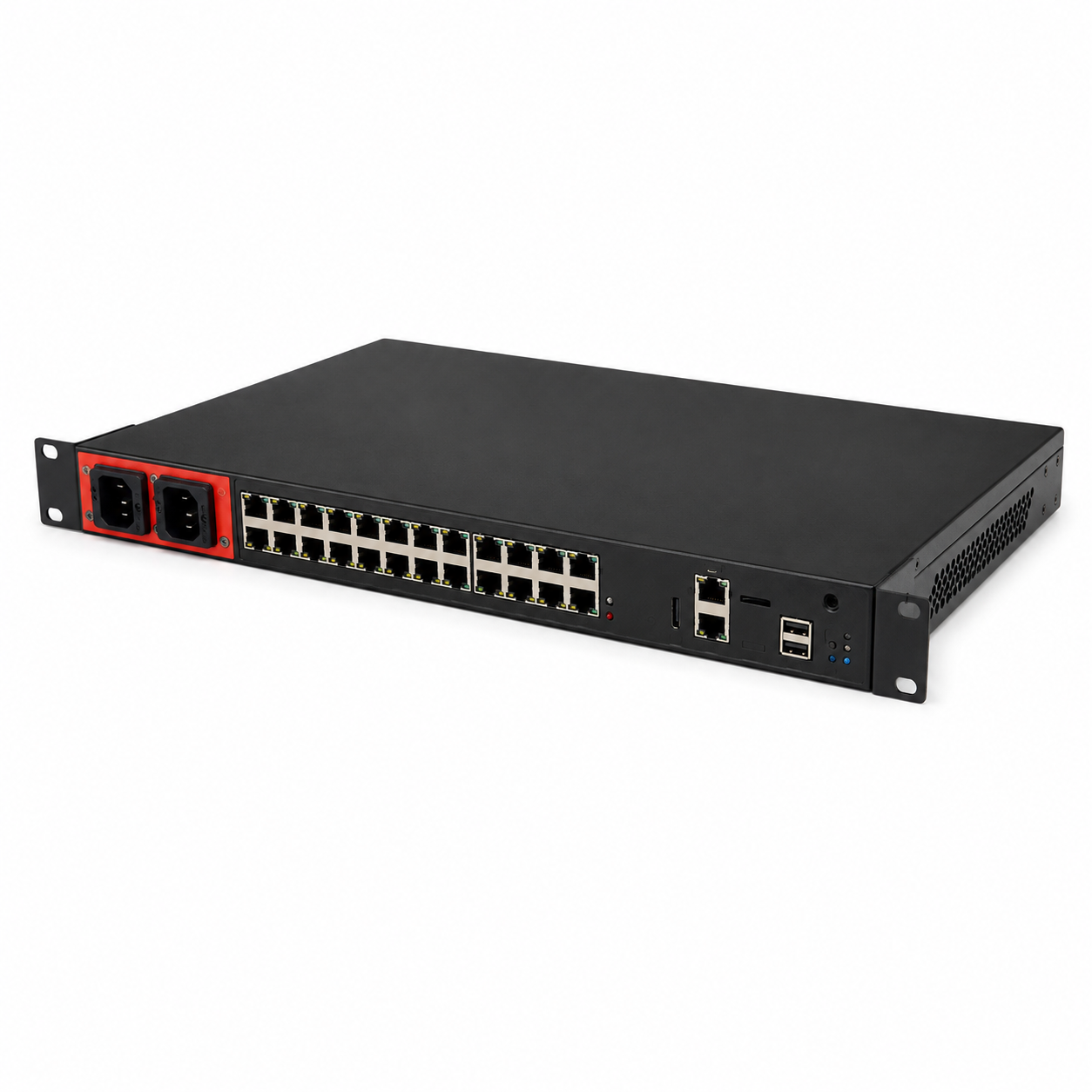

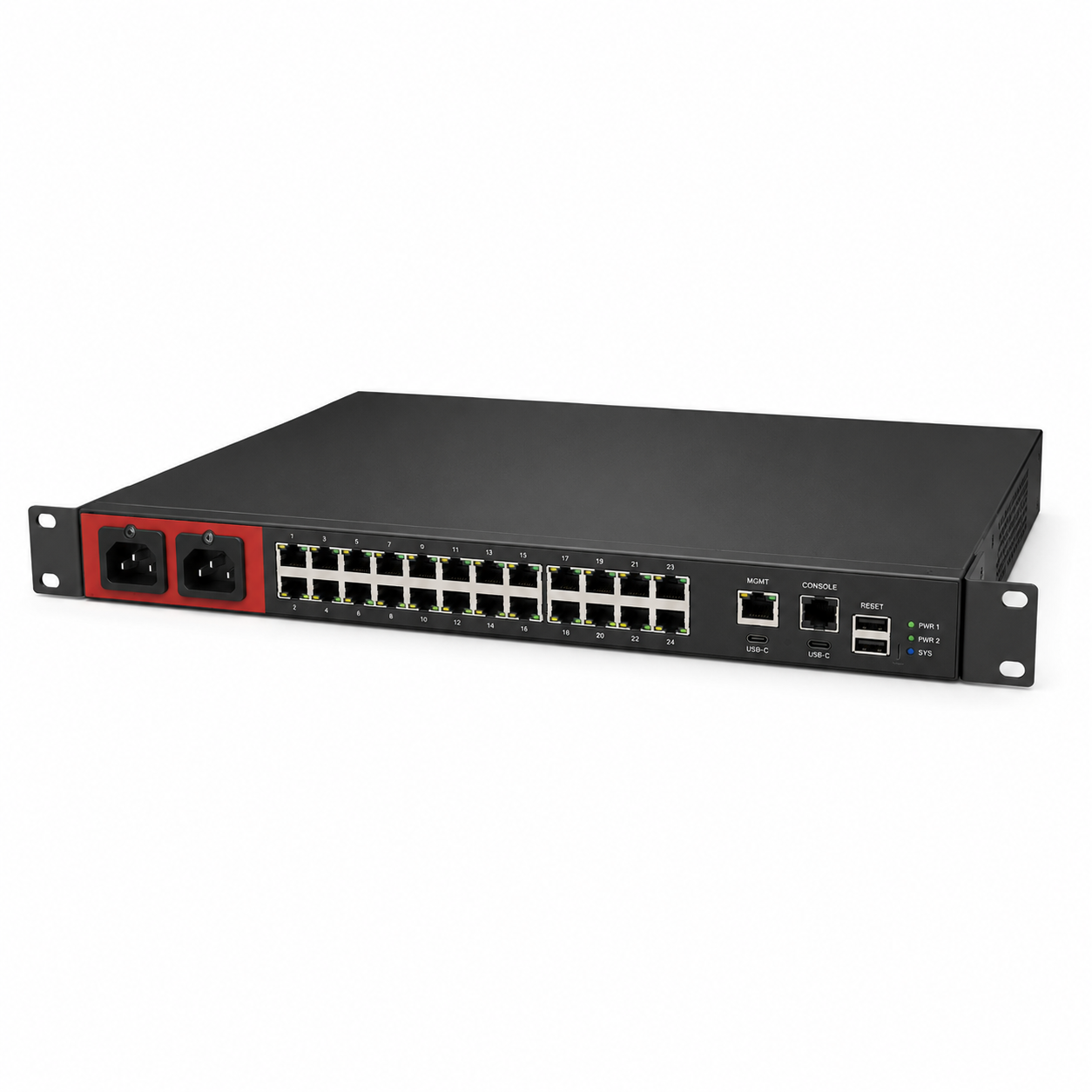

The CONLUXS CloudNet EMS Host (model H08A1) is a high-performance, industrial-grade monitoring appliance designed for mission-critical data center and infrastructure environments. It runs an embedded Linux operating system on an industrial quad-core ARM Cortex-A7 processor at 1.2GHz with 1G RAM / 8G ROM. The host is built for continuous operation with dual-channel AC 90–260V power input, dual 10/100/1000Mbps Ethernet ports, and rich I/O connectivity including 8×RS485 (RJ45), 12×DI and 4×DO. It supports up to 10,000 monitoring points and mounts in a standard 19-inch rack (430 × 255 × 44.2mm, 1U) for data center and infrastructure deployments.

EMS Data Acquisition and Monitoring

The CloudNet EMS Host provides site-side data acquisition for energy and power monitoring. Its 8×RS485 ports (two of which support RS232/485 swap) connect to serial equipment such as BESS controllers, battery monitors, PV inverters, UPS units and power distribution devices, while 12×DI and 4×DO handle alarm and control signaling. Data is consolidated at the host and made available over dual Gigabit Ethernet ports to the network, with a web-based management console accessible via IP address. The host also supports 2.5D visual simulation, SMS/WeChat alerts, fire suppression linkage and seamless third-party platform integration for unified 24×7×365 monitoring.

EMS for BESS / Battery / PV / UPS

• BESS / Battery monitoring: collect status data from battery energy storage systems and battery monitoring devices through RS485 links, and present it alongside site-level power data for unified monitoring. See Flagship BMS and Standard BMS for battery-side monitoring, and Lithium Battery Pack for storage hardware.
• PV monitoring: aggregate inverter and generation data from PV sites into the same EMS console for energy monitoring across the project.
• UPS monitoring: monitor UPS input/output status and integrate with UPS power distribution for end-to-end visibility. See UPS Feeder Cabinet.
• Power distribution: connect upstream power panels — Precision Remote Power Panels (RPP) and Data Center Precision Distribution Cabinet — to correlate distribution status with downstream equipment.

Applications

The CloudNet EMS Host is suited to data center and infrastructure monitoring, EMS host deployment, and project-level energy visibility for commercial and industrial facilities. As an international project-supply and technical-coordination partner, CONLUXS delivers the host as part of a complete low-voltage distribution, solar PV, BESS and monitoring package. See Solutions for application context.

Typical deployments include data center facilities and commercial or industrial sites where the host is mounted in a standard 19-inch rack (430 × 255 × 44.2mm, 1U) alongside UPS feeders and power distribution panels. The dual-channel AC 90–260V power input supports redundant feeds for continuous operation, while dual 10/100/1000Mbps Ethernet ports connect the host to the site network. With up to 10,000 monitoring points, the host consolidates BESS, battery, PV and UPS status into a single web-based management console accessible via IP address, giving facility and engineering teams a unified view of power infrastructure. External interfaces — 2×USB 2.0, 1×HDMI and 1×Type-C, with optional 4G/GPS — support on-site configuration and remote access. For larger energy monitoring programs, CONLUXS scales to the SkyNet EMS Host with 100,000-point capacity; for edge and remote facilities, the CloudNet Mini provides DIN-rail-mounted gateway functionality.
