What Is an Energy Management System (EMS)?

An Energy Management System (EMS) is the monitoring and data acquisition layer for power infrastructure, collecting operational data from energy storage, PV, UPS and distribution equipment. The SkyNet EMS Host is the CONLUXS hardware gateway for this role at large-scale sites, where the volume of monitored points and the density of serial equipment exceed entry-level capacity.

SkyNet EMS Overview

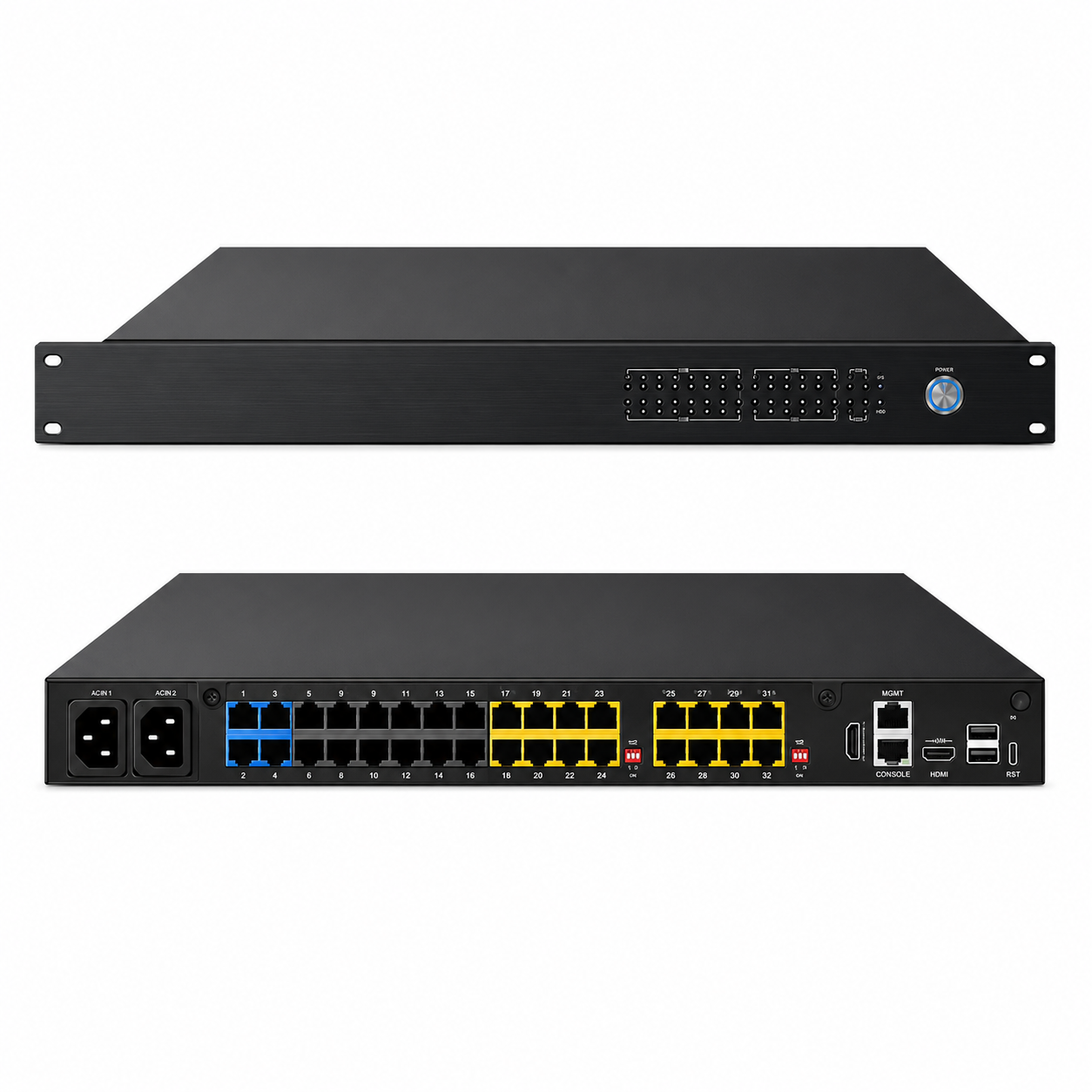

The CONLUXS SkyNet EMS Host (model H10A1) is a high-performance, industrial-grade monitoring appliance for large-scale data center environments. It runs a pre-installed Linux OS on an industrial Allwinner T507 quad-core 64-bit Cortex-A53 processor at 1.27GHz with 2G RAM / 8G ROM. The host provides dual-channel AC power input, dual Ethernet ports, 16×RS485 (RJ45), 12×DI and 4×DO, and supports up to 100,000 monitoring points in a 1U rack-mount form factor (437.6 × 301.2 × 43.8mm). It is designed for deployments where monitoring scale and data density are the primary requirements.

High-Capacity Data Acquisition for System Monitoring

The SkyNet EMS Host scales to 100,000 monitoring points — ten times the capacity of the CloudNet EMS Host — and provides 16×RS485 ports for high-density serial connectivity to BESS controllers, battery monitors, PV inverters, UPS systems and power distribution equipment. Dual Ethernet ports carry consolidated monitoring data to the network, while a web-based management console provides IP-accessible system monitoring. On-site features include 2.5D visual simulation, SMS/WeChat alerts, fire suppression linkage and third-party platform integration, supported by an independent hardware watchdog for continuous operation.

Monitoring and Data Acquisition Workflow

The SkyNet EMS Host follows a consistent on-site workflow for large-scale monitoring: serial equipment — BESS controllers, battery monitors, PV inverters, UPS systems and power distribution devices — connects through the host's 16×RS485 (RJ45) ports; alarm and control signaling is handled by 12×DI and 4×DO; consolidated point data is carried to the network over dual Ethernet ports; and operators access the web-based management console via IP address for system monitoring. An independent hardware watchdog supports continuous operation, while 2.5D visual simulation, SMS/WeChat alerts and fire suppression linkage provide on-site and remote visibility of monitored assets.

Energy Infrastructure Integration

The SkyNet EMS Host integrates monitoring data across the full energy infrastructure chain: BESS and battery systems (see Flagship BMS, Standard BMS, Lithium Battery Pack), UPS input/output distribution (see UPS Feeder Cabinet), and power distribution panels (Precision Remote Power Panels (RPP), Data Center Precision Distribution Cabinet). This makes it suitable for large commercial, industrial and data center applications where unified system monitoring across multiple infrastructure domains is required. See Solutions for deployment context.

Applications

Primary applications include large-scale data center monitoring, high-density BESS and battery plant monitoring, campus-level energy monitoring, and mission-critical infrastructure projects requiring 100K-point acquisition capacity. As an international project-supply and technical-coordination partner, CONLUXS deploys the host alongside low-voltage distribution, solar PV and BESS equipment so that energy monitoring data from storage, generation and distribution assets is unified at the site level.

Typical deployments include data center campuses, high-density BESS and battery plants, and campus-level energy monitoring programs where the number of monitored assets exceeds entry-level EMS capacity. The host mounts in a standard 19-inch rack (437.6 × 301.2 × 43.8mm, 1U) and accepts serial connections from BESS controllers, battery monitors, PV inverters, UPS systems and power distribution equipment across its 16×RS485 (RJ45) ports, with alarm and control signaling handled by 12×DI and 4×DO. Dual Ethernet ports carry consolidated point data to the network, and operators access the web-based management console via IP address. The industrial Allwinner T507 quad-core 64-bit Cortex-A53 processor at 1.27GHz with 2G RAM / 8G ROM and pre-installed Linux supports sustained processing of up to 100,000 monitoring points, while dual-channel AC power input and an independent hardware watchdog support continuous operation. On-site and remote visibility is completed with 2.5D visual simulation, SMS/WeChat alerts and fire suppression linkage, with third-party platform integration for unified 24×7×365 monitoring. External connectivity is provided through 2×USB 2.0 and 1×HDMI (500mA) ports, with optional 4G/GPS for deployments that require remote access outside the local network.
